D-SUB Connector

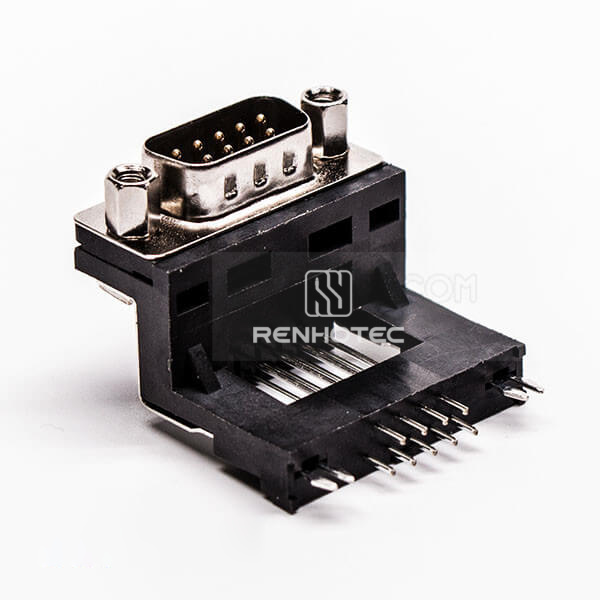

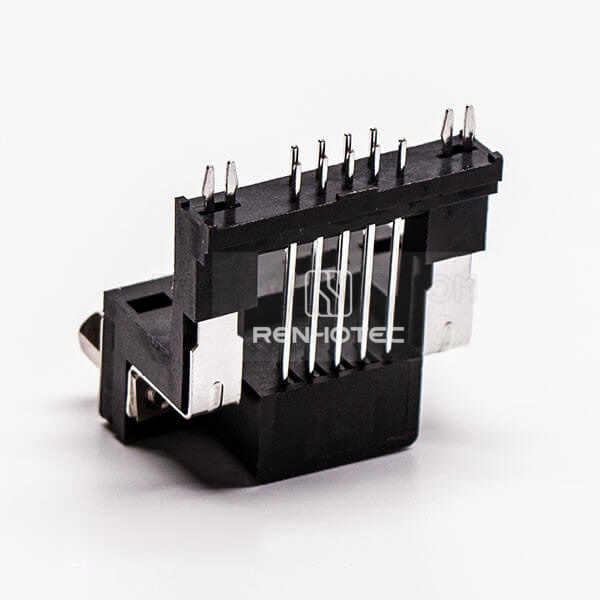

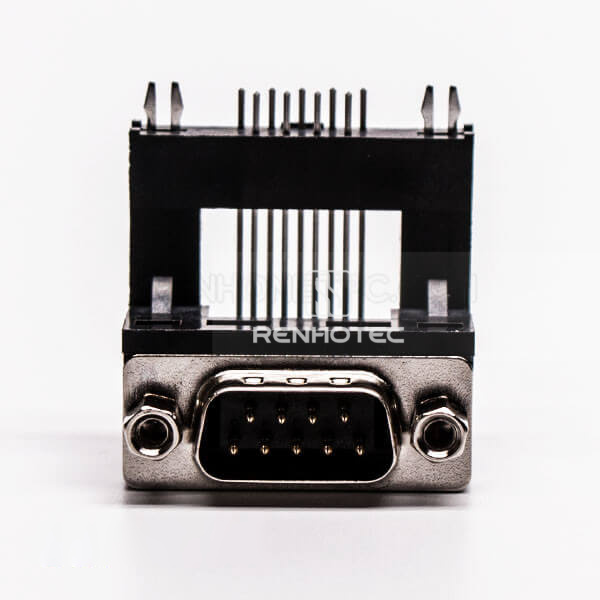

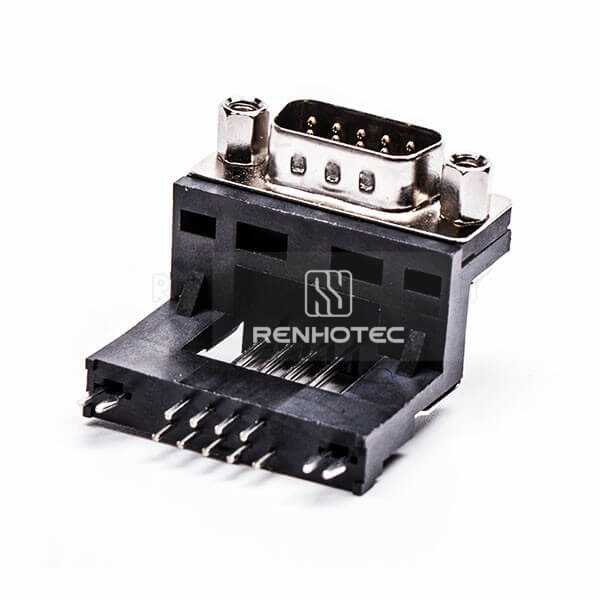

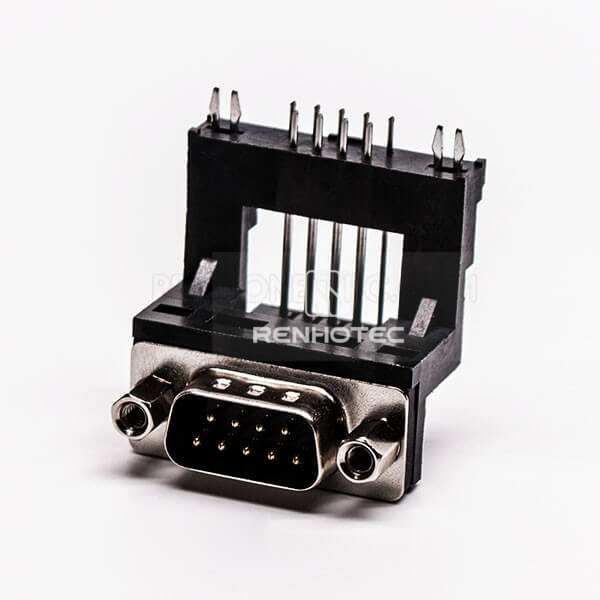

D-SUB 9 Pin Male Solder 90 Degree Through Hole Elevated socket for PCB

Public Part No. RHT-681-1152

D-SUB 9 Pin Male Solder 90 Degree Through Hole Elevated socket for PCB
Enlarge image
D-SUB 9 Pin Male Solder 90 Degree Through Hole Elevated socket for PCBD-SUB 9 Pin Male Solder 90 Degree Through Hole Elevated socket for PCBD-SUB 9 Pin Male Solder 90 Degree Through Hole Elevated socket for PCBD-SUB 9 Pin Male Solder 90 Degree Through Hole Elevated socket for PCBD-SUB 9 Pin Male Solder 90 Degree Through Hole Elevated socket for PCB

Key specifications

Connector Type
D-SUB
Pin Count
9 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

9-pin male D-SUB connector with right-angle orientation and through-hole PCB mounting. The connector has an elevated construction. Colour: black.

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB
Pin Count
9 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Construction detail
Elevated Type
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Color
Black
Insert material
Flame-retardant thermoplastic
