D-SUB Connector

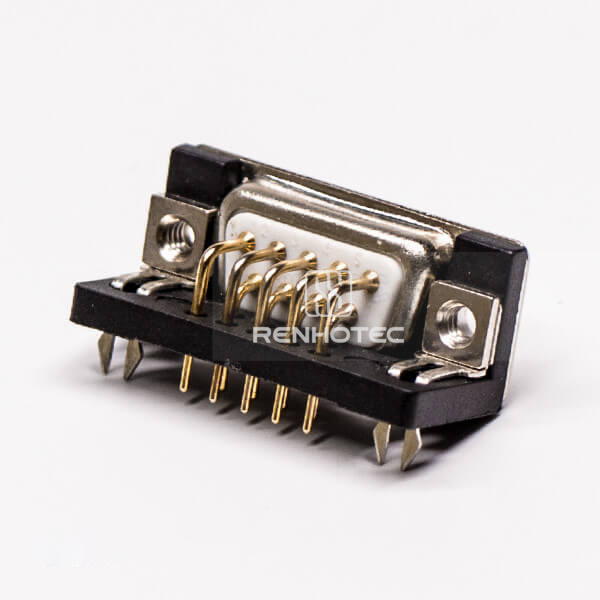

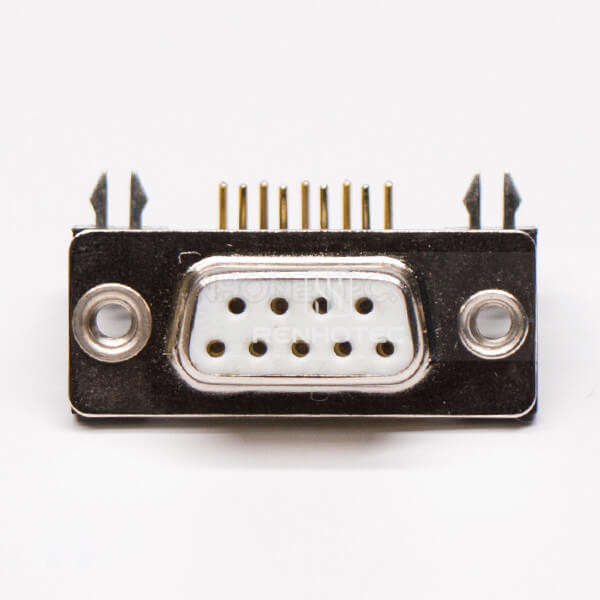

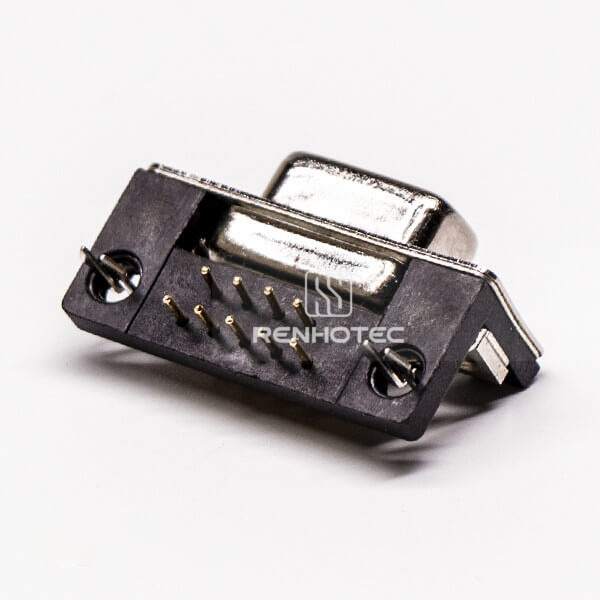

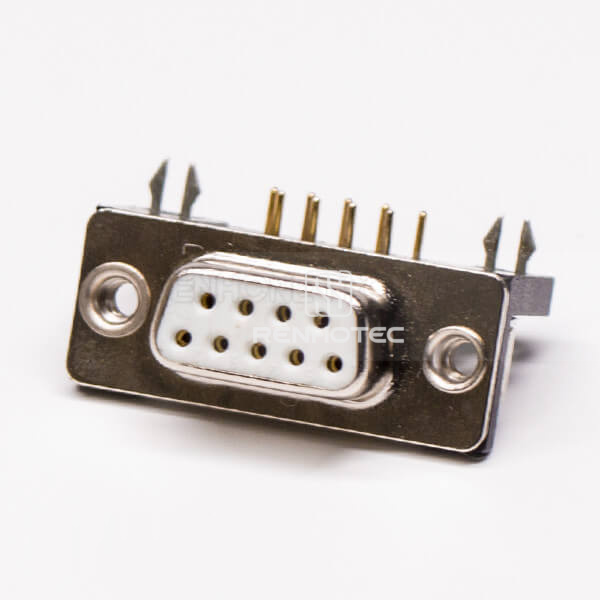

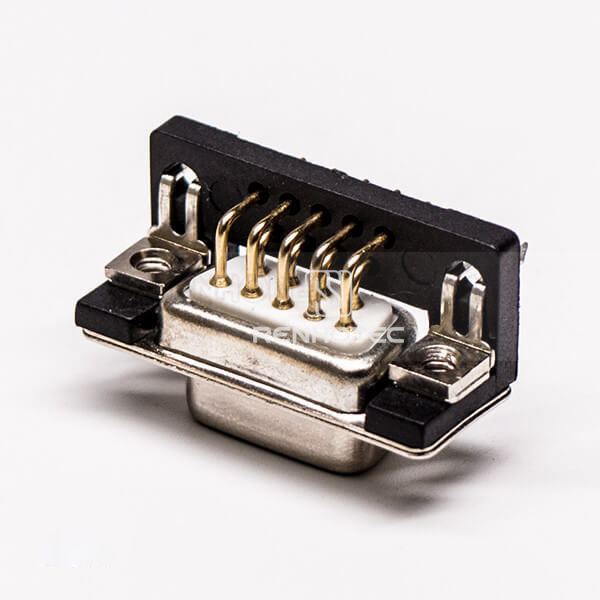

D-SUB 9 Pin Connector Female Right Angle Harpoon Through Hole for PCB Mount

Part No.RHT-681-1162
9-pin female D-SUB connector with right-angle orientation and through-hole PCB mounting.
  • Connector TypeD-SUB
  • Pin Count9 Pin
  • GenderFemale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
300V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
5000MΩ
Contact Resistance
8.5mΩ max. DF: 5mΩ max

Connection

Connector Type
D-SUB

Mechanical

Pin Count
9 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Construction detail
Harpoon
Contact construction
Machined contacts / Precision turned contacts

Environmental

Operating Temperature options
D: -67°F (-55°C) to +185°F (85°C), DF: -67°F (-55°C) to + 257°F (125°C)

Before you specify

Selection guide

9-pin female D-SUB connector with right-angle orientation and through-hole PCB mounting. It uses machined contacts.
