D-SUB Connector

D-SUB 7w2 Waterproof Power Straight Female Through Hole for PCB Mount connector

Public Part No. RHT-681-1178

D-SUB 7w2 Waterproof Power Straight Female Through Hole for PCB Mount connector
Enlarge image
D-SUB 7w2 Waterproof Power Straight Female Through Hole for PCB Mount connectorD-SUB 7w2 Waterproof Power Straight Female Through Hole for PCB Mount connectorD-SUB 7w2 Waterproof Power Straight Female Through Hole for PCB Mount connectorD-SUB 7w2 Waterproof Power Straight Female Through Hole for PCB Mount connectorD-SUB 7w2 Waterproof Power Straight Female Through Hole for PCB Mount connector

Key specifications

Connector Type
D-SUB
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

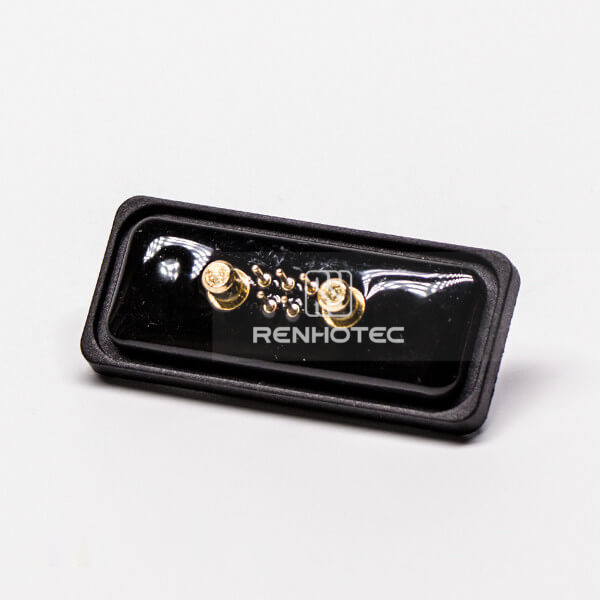

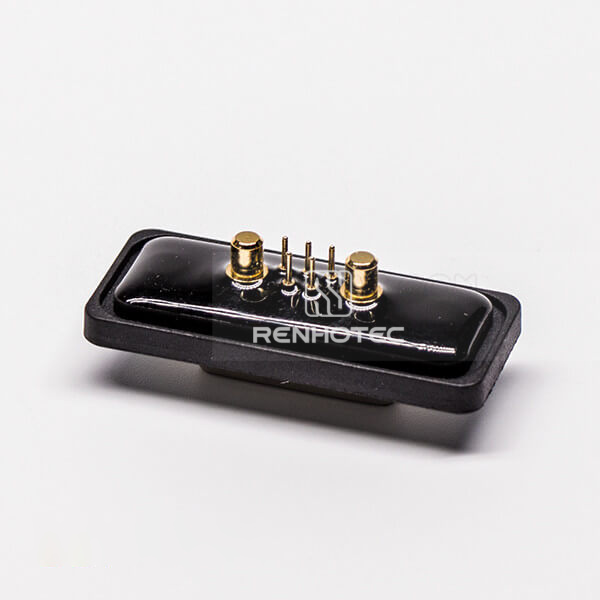

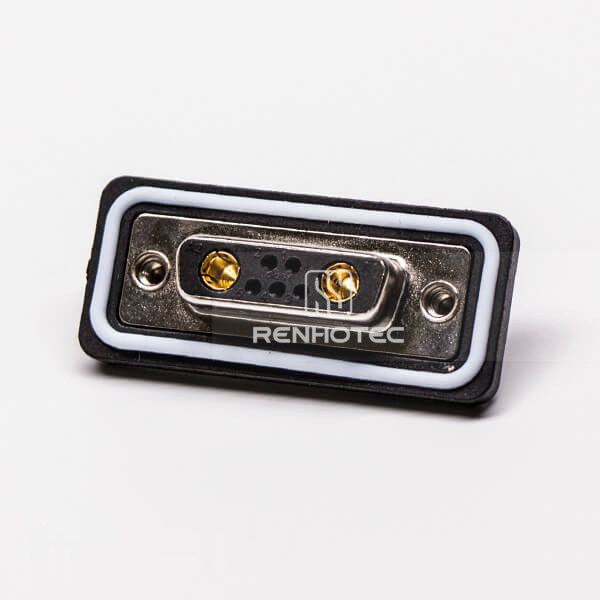

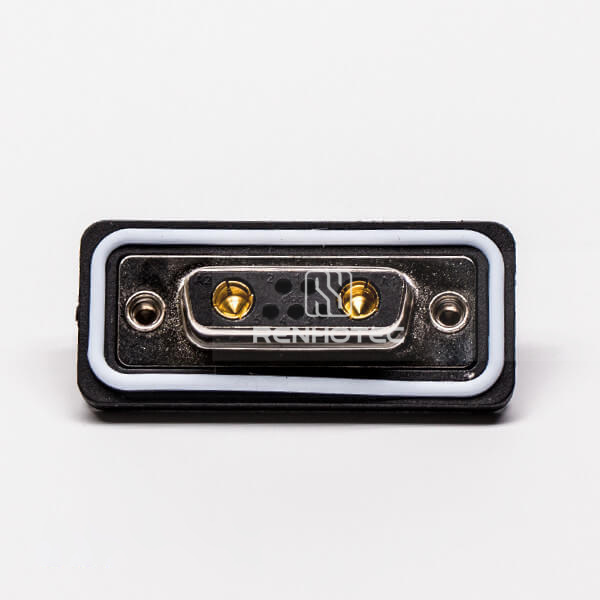

7W2 female D-SUB connector with straight orientation and through-hole PCB mounting. It uses machined contacts. An interfacial seal is included.

Full Specifications

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Mechanical

Connector Type
D-SUB
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Contact configuration
7w2
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Waterproof Rating
IP67
Operating Temperature
-25 to 125 °C

Connector requirement
