D-SUB Connector

D-SUB 7w2 Power Connector Female Straight Solder Type for Cable with Staking

Public Part No. RHT-681-1234

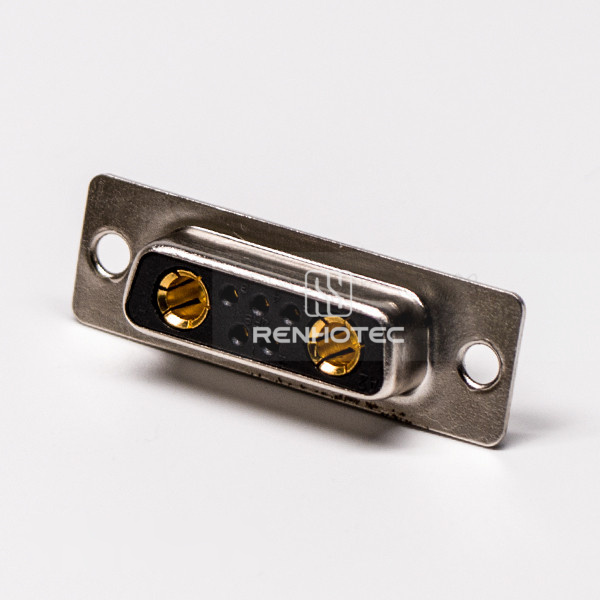

D-SUB 7w2 Power Connector Female Straight Solder Type for Cable with Staking
Enlarge image
D-SUB 7w2 Power Connector Female Straight Solder Type for Cable with StakingD-SUB 7w2 Power Connector Female Straight Solder Type for Cable with StakingD-SUB 7w2 Power Connector Female Straight Solder Type for Cable with StakingD-SUB 7w2 Power Connector Female Straight Solder Type for Cable with StakingD-SUB 7w2 Power Connector Female Straight Solder Type for Cable with Staking

Key specifications

Connector Type
Cable Connector / Power D-SUB
Gender
Female
Orientation
Straight
Termination Type
Solder Type / Staking Type
Request QuoteFull specifications

Overview

7W2 female D-SUB connector with straight orientation and solder termination. Termination: staking type.

Full Specifications

Electrical

Frequency range
0 -1 GHz
VSWR
1.4 (+0.04/GHz)
Characteristic Impedance
50 Ohms
Dielectric Withstanding Voltage
≥ 1000V R.M.S. at 50Hz
Insulation Resistance
≥ 5000 megaohms at 500 V D.C.
Contact Resistance
≤5 milliohms

Mechanical

Connector Type
Cable Connector / Power D-SUB
Gender
Female
Orientation
Straight
Termination Type
Solder Type / Staking Type
Contact configuration
7w2 / 7W2
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 155 °C

Connector requirement

Request a quote

Share your connector requirements and the specifications you need.

    Inquiry details

    Attach one PDF, JPEG or PNG, up to 5 MB.

    Include the details needed to help with your connector inquiry. You can check them before sending.

    Complete verification before sending.
