D-SUB Connector

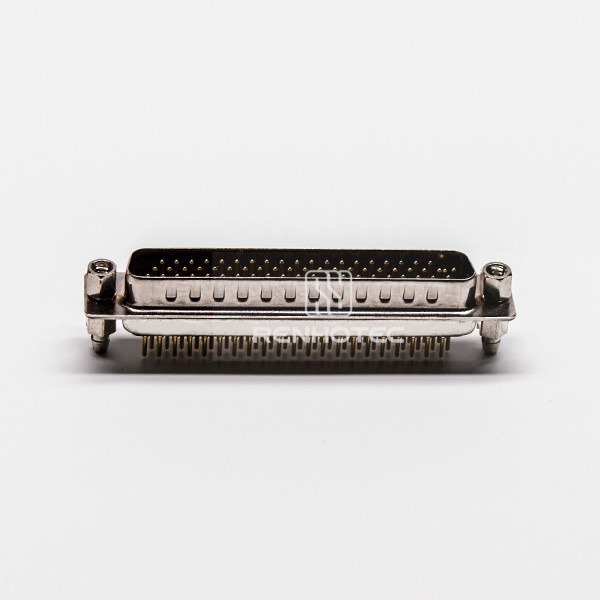

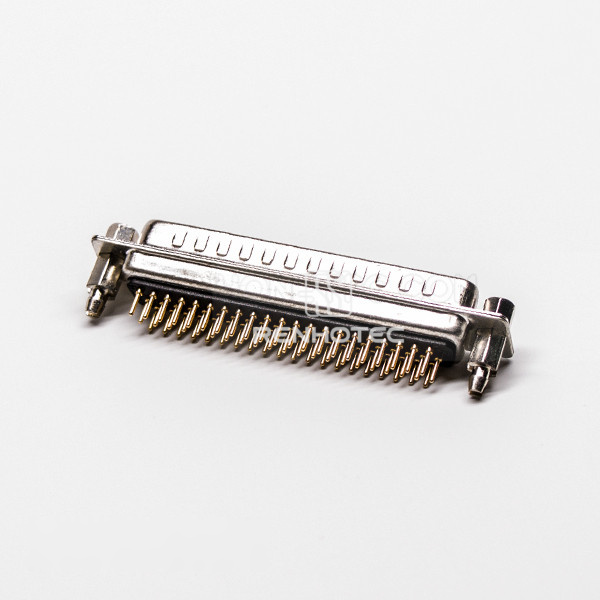

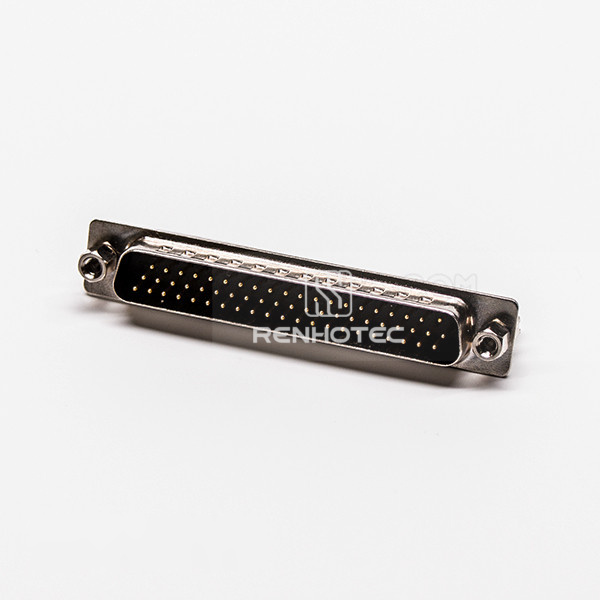

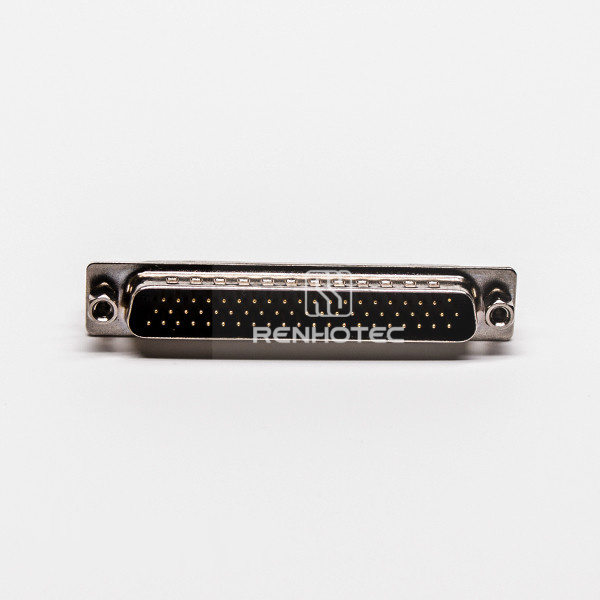

D-SUB 62 Pin Connector Male 180 Degree Staking Type Through Hole for PCB Mount

Part No.RHT-681-1211
62-pin male D-SUB connector with straight orientation and through-hole PCB mounting.
  • Connector TypeD-SUB
  • Pin Count62 Pin
  • GenderMale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Connection

Connector Type
D-SUB

Mechanical

Pin Count
62 Pin
Gender
Male
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Contact construction
Machined contacts
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Color
Black
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Before you specify

Selection guide

62-pin male D-SUB connector with straight orientation and through-hole PCB mounting. Termination: staking type. It uses machined contacts. Colour: black.

RHT-681-1211
