D-SUB Connector

D-SUB 44 Pin Waterproof Straight Male Machined Solder Type Connector

Public Part No. RHT-681-1179

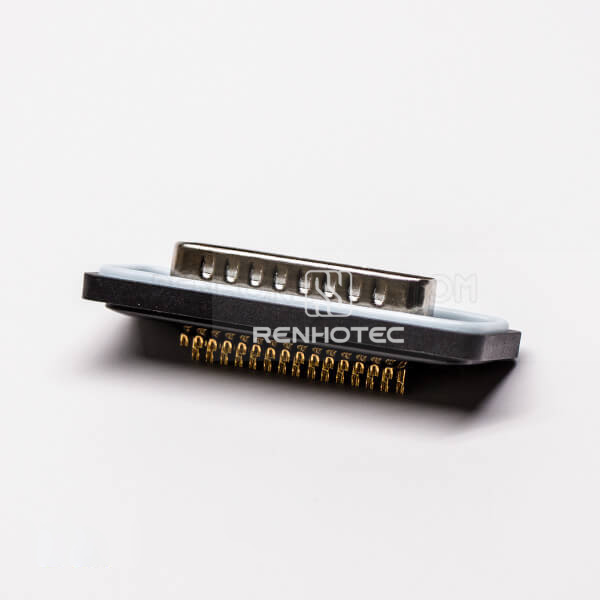

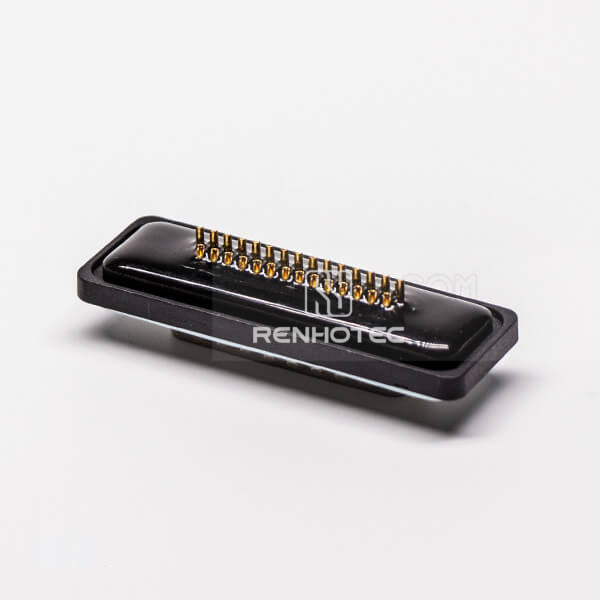

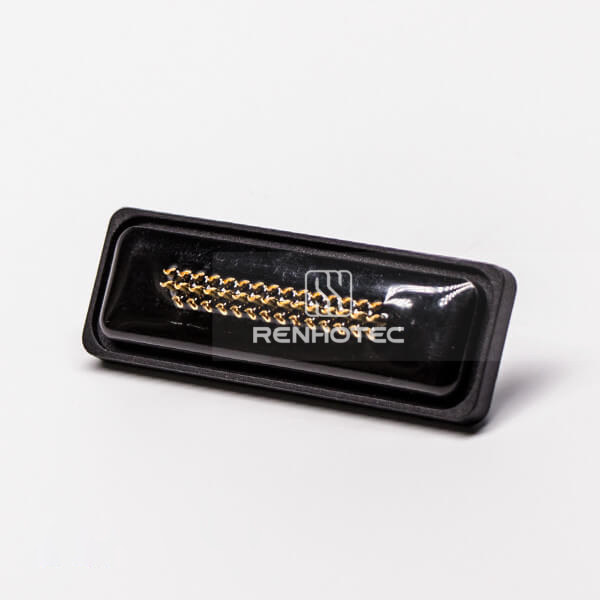

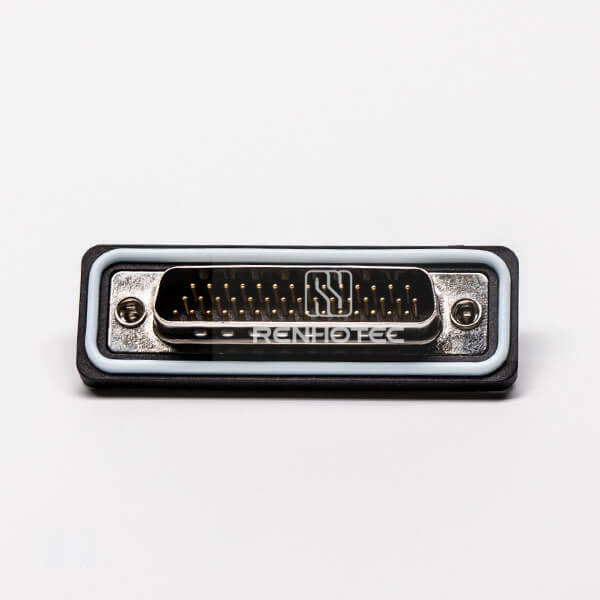

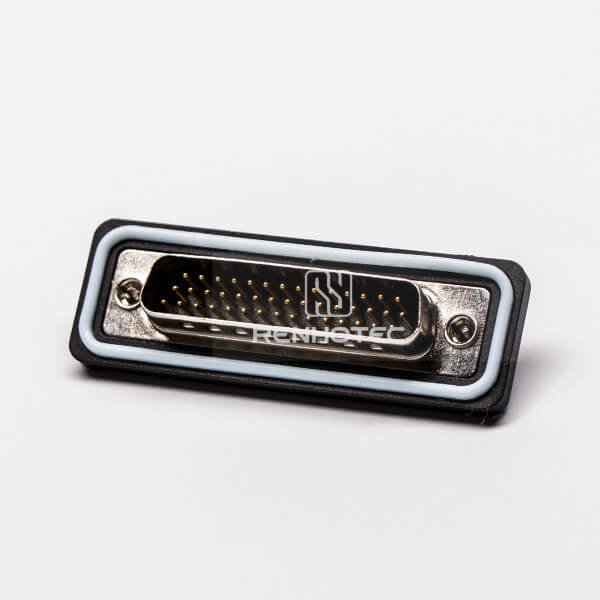

D-SUB 44 Pin Waterproof Straight Male Machined Solder Type Connector
Enlarge image
D-SUB 44 Pin Waterproof Straight Male Machined Solder Type ConnectorD-SUB 44 Pin Waterproof Straight Male Machined Solder Type ConnectorD-SUB 44 Pin Waterproof Straight Male Machined Solder Type ConnectorD-SUB 44 Pin Waterproof Straight Male Machined Solder Type ConnectorD-SUB 44 Pin Waterproof Straight Male Machined Solder Type Connector

Key specifications

Connector Type
Cable Connector / D-SUB
Pin Count
44 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type
Request QuoteFull specifications

Overview

44-pin male D-SUB connector with straight orientation and solder termination. It uses machined contacts. An interfacial seal is included.

Full Specifications

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Mechanical

Connector Type
Cable Connector / D-SUB
Pin Count
44 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Operating Temperature
-25 to 125 °C
