D-SUB Connector

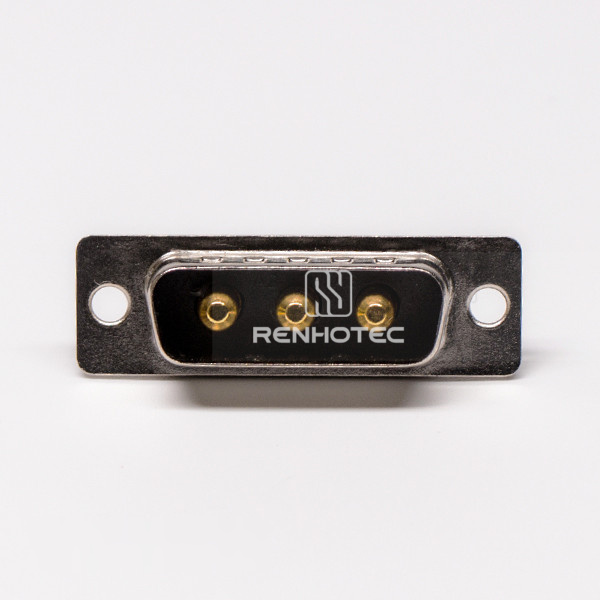

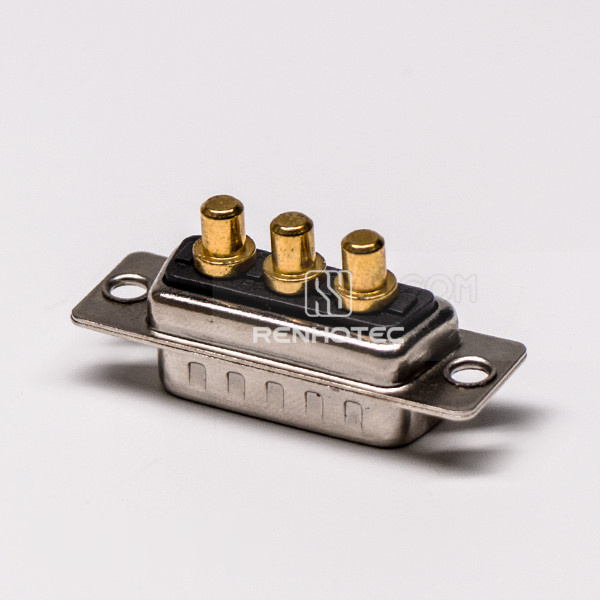

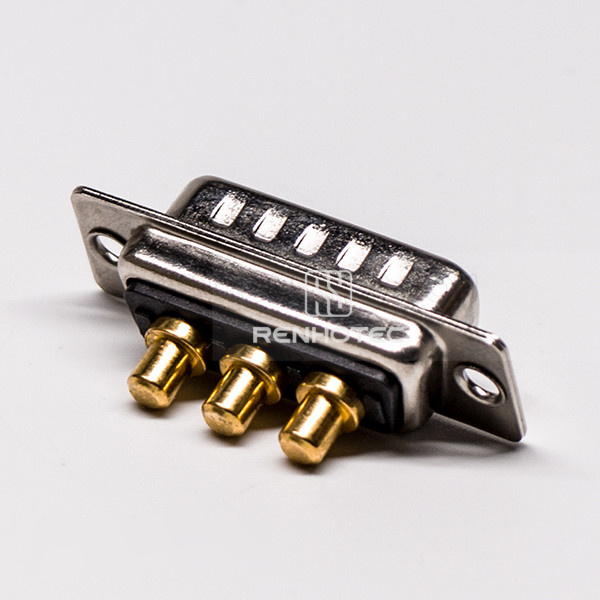

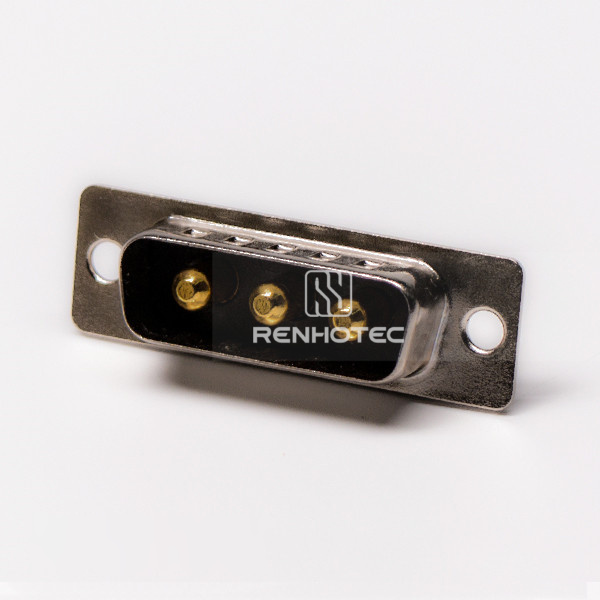

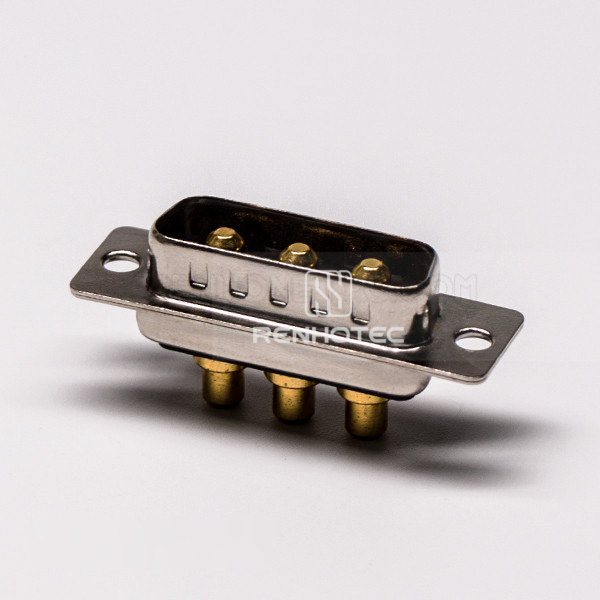

3-Pin Male D-SUB Connector, Straight Solder Termination

Public Part No. RHT-681-1231

3-Pin Male D-SUB Connector, Straight Solder Termination
Enlarge image
3-Pin Male D-SUB Connector, Straight Solder Termination3-Pin Male D-SUB Connector, Straight Solder Termination3-Pin Male D-SUB Connector, Straight Solder Termination3-Pin Male D-SUB Connector, Straight Solder Termination3-Pin Male D-SUB Connector, Straight Solder Termination

Key specifications

Connector Type
Cable Connector / D-SUB
Pin Count
3 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type / Staking Type
Request QuoteFull specifications

Full Specifications

Electrical

Dielectric Withstanding Voltage
≥ 1000V R.M.S. at 50Hz
Insulation Resistance
≥ 5000 megaohms at 500 V D.C.
Contact Resistance
≤5 milliohms

Mechanical

Connector Type
Cable Connector / D-SUB
Gender
Male
Orientation
Straight
Termination Type
Solder Type / Staking Type
Pin Count
3 Pin
Contact configuration
3 Pin
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 155 °C
