D-SUB Connector

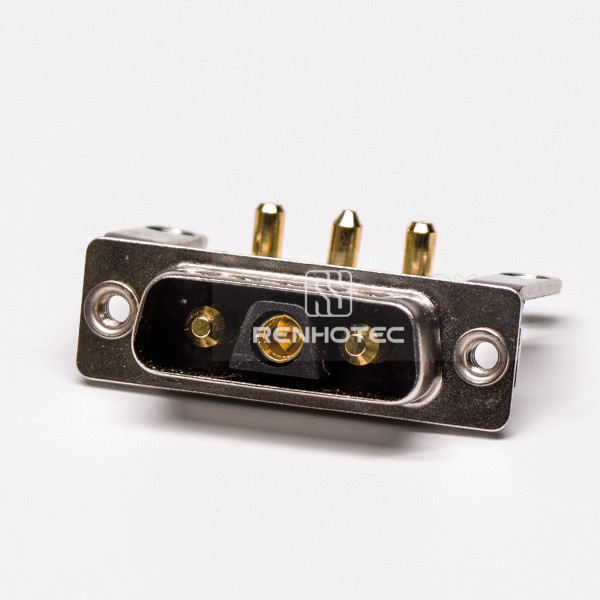

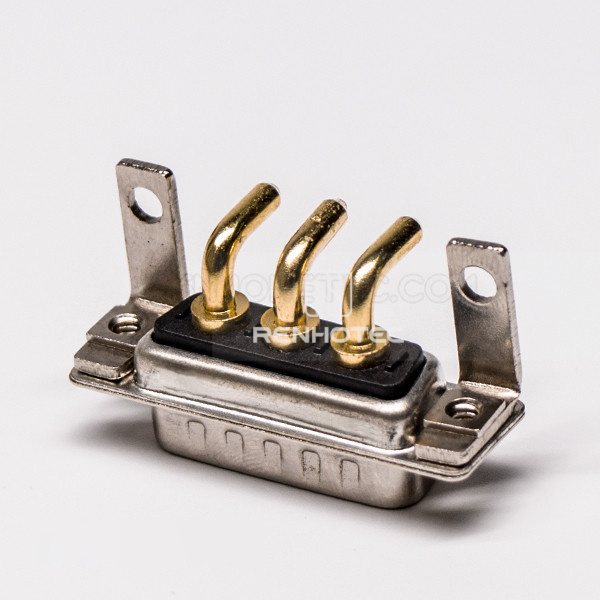

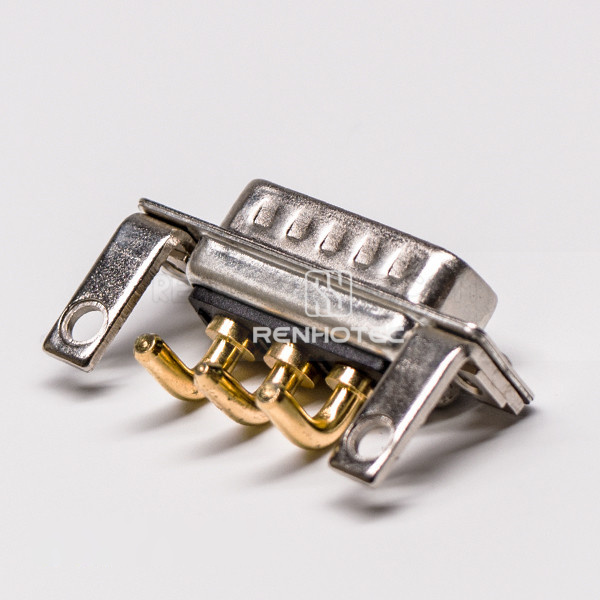

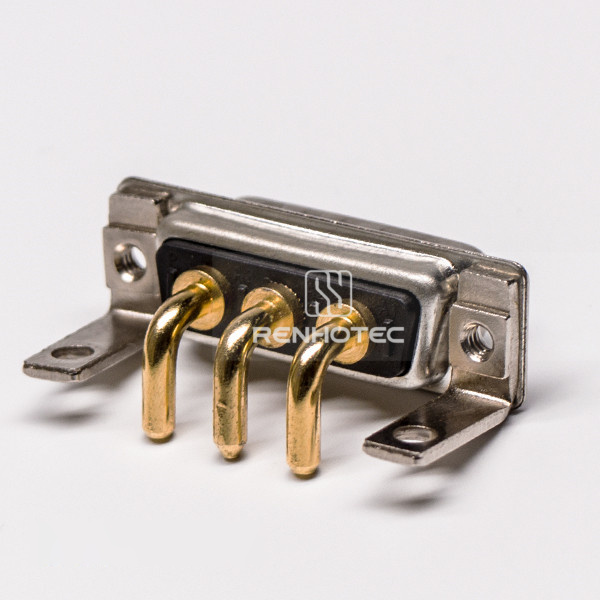

D-SUB 3V3 Connector Male Staking Solder Type For PCB Mount

Public Part No. RHT-681-1225

D-SUB 3V3 Connector Male Staking Solder Type For PCB Mount
Enlarge image
D-SUB 3V3 Connector Male Staking Solder Type For PCB MountD-SUB 3V3 Connector Male Staking Solder Type For PCB MountD-SUB 3V3 Connector Male Staking Solder Type For PCB MountD-SUB 3V3 Connector Male Staking Solder Type For PCB Mount

Key specifications

Connector Type
Power D-SUB
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type / Staking Type
Request QuoteFull specifications

Overview

3V3 male D-SUB connector with right-angle orientation, through-hole PCB mounting and solder termination. Termination: staking type.

Full Specifications

Electrical

Frequency range
0 -1 GHz
VSWR
1.4 (+0.04/GHz)
Characteristic Impedance
50 Ohms
Dielectric Withstanding Voltage
≥ 1000V R.M.S. at 50Hz
Insulation Resistance
≥ 5000 megaohms at 500 V D.C.
Contact Resistance
≤5 milliohms

Mechanical

Connector Type
Power D-SUB
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type / Staking Type
Contact configuration
3v3 / 3V3
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 155 °C
