D-SUB Connector

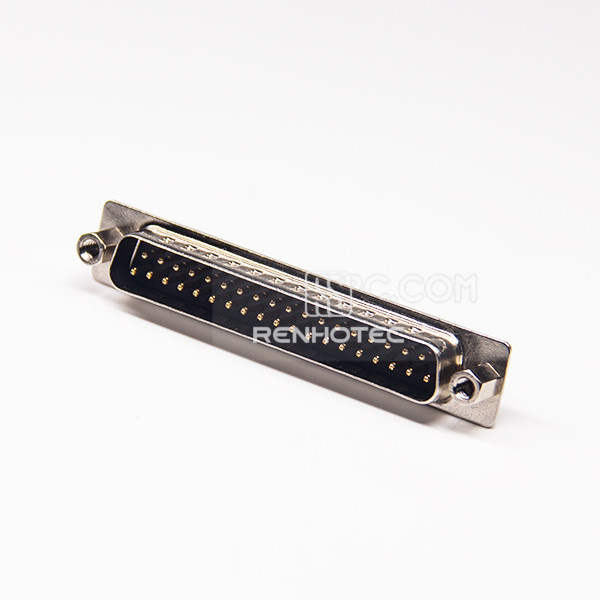

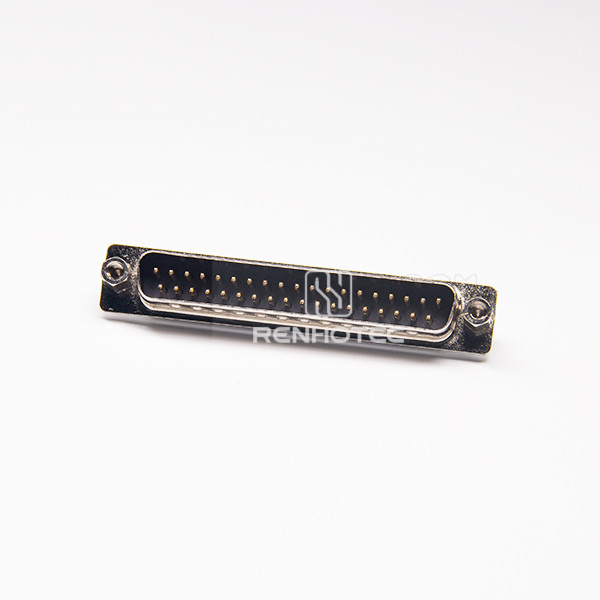

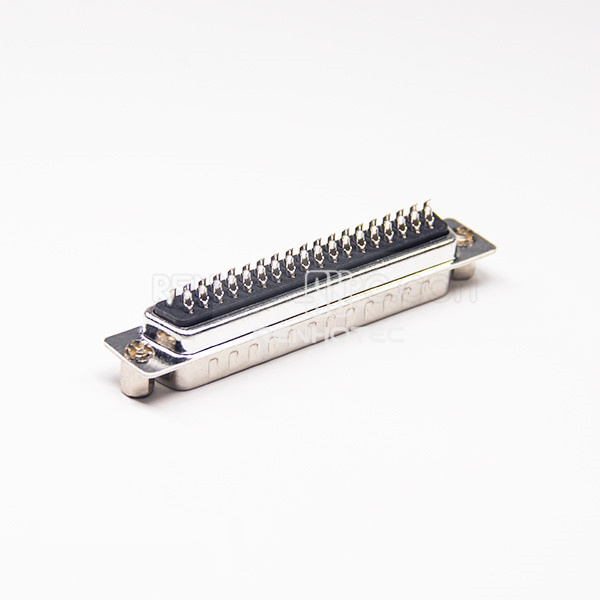

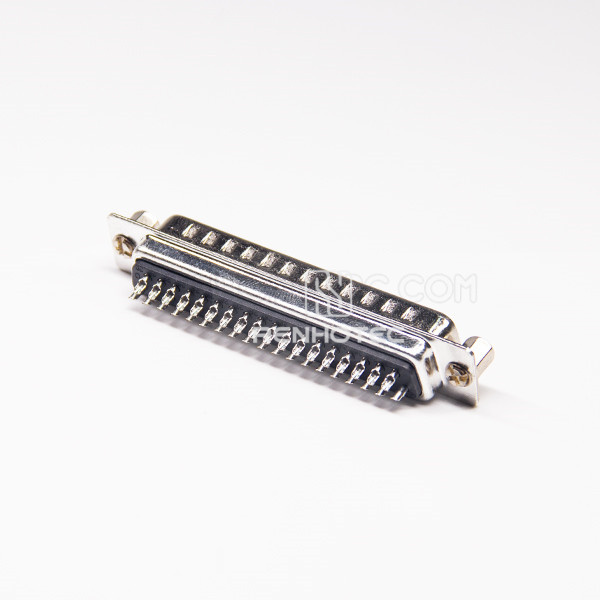

D-SUB 37 Pin Male Connector Solder Type Connectors With Nut Connector

D-SUB 37 Pin Male Connector Solder Type Connectors With Nut Connector
Enlarge image
D-SUB 37 Pin Male Connector Solder Type Connectors With Nut ConnectorD-SUB 37 Pin Male Connector Solder Type Connectors With Nut ConnectorD-SUB 37 Pin Male Connector Solder Type Connectors With Nut ConnectorD-SUB 37 Pin Male Connector Solder Type Connectors With Nut Connector

Key specifications

Connector Type
D-SUB
Pin Count
37 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type / Stamped Pin
Request QuoteFull specifications

Overview

37-pin male D-SUB connector with straight orientation and solder termination. It uses stamped contacts. An interfacial seal is included.

Full Specifications

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Mechanical

Connector Type
D-SUB
Pin Count
37 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type / Stamped Pin
Mounting detail
Cable mount
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Material

Surface finish
Tinning

Environmental

Waterproof Rating
IP20 STANDARD TYPE
Operating Temperature
-25 to 125 °C

Connector requirement
