D-SUB Connector

D-SUB 37 Female Male Connector to Audio Right Angle Stacked Type Black Socket

Public Part No. RHT-681-1151

D-SUB 37 Female Male Connector to Audio Right Angle Stacked Type Black Socket
Enlarge image

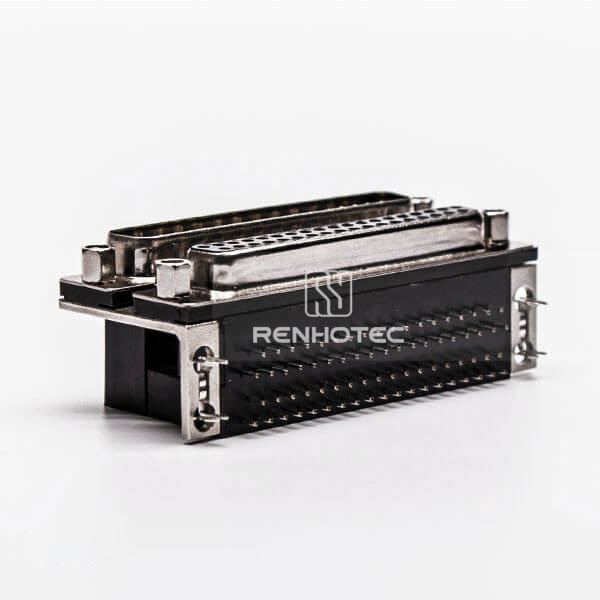

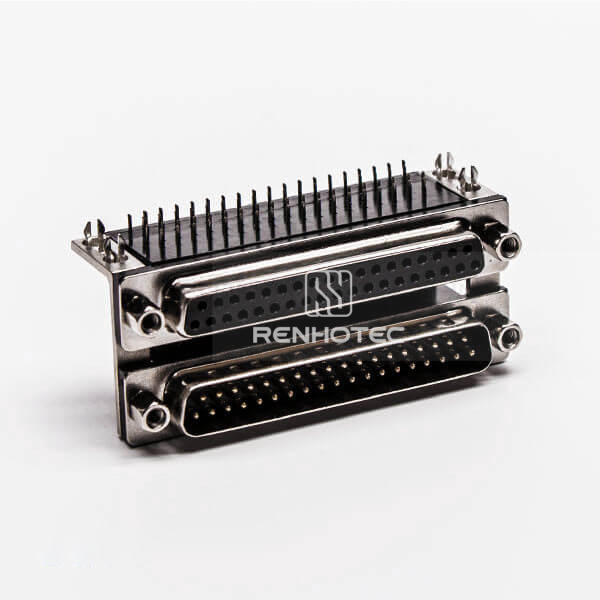

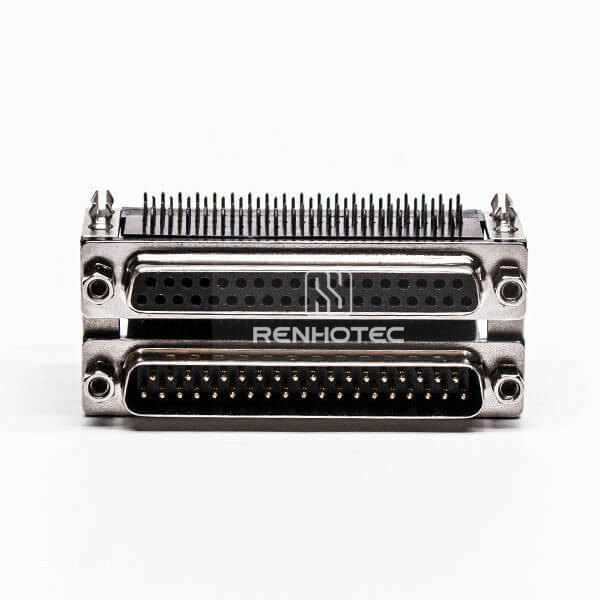

D-SUB 37 Female Male Connector to Audio Right Angle Stacked Type Black SocketD-SUB 37 Female Male Connector to Audio Right Angle Stacked Type Black SocketD-SUB 37 Female Male Connector to Audio Right Angle Stacked Type Black SocketD-SUB 37 Female Male Connector to Audio Right Angle Stacked Type Black Socket

Key specifications

Connector Type
D-SUB
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

Stacked D-SUB connector with male and female interfaces in a right-angle configuration. Colour: black.

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Construction detail
Stacked
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Gender at connector ends
Male / Female

Material

Color
Black
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Connector requirement
