D-SUB Connector

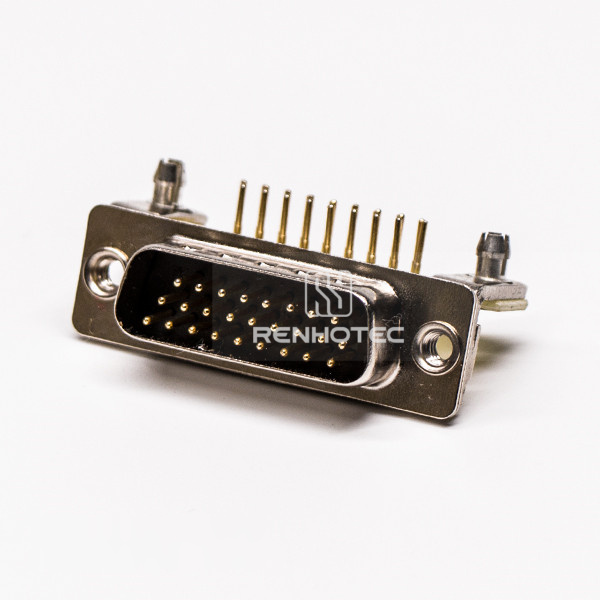

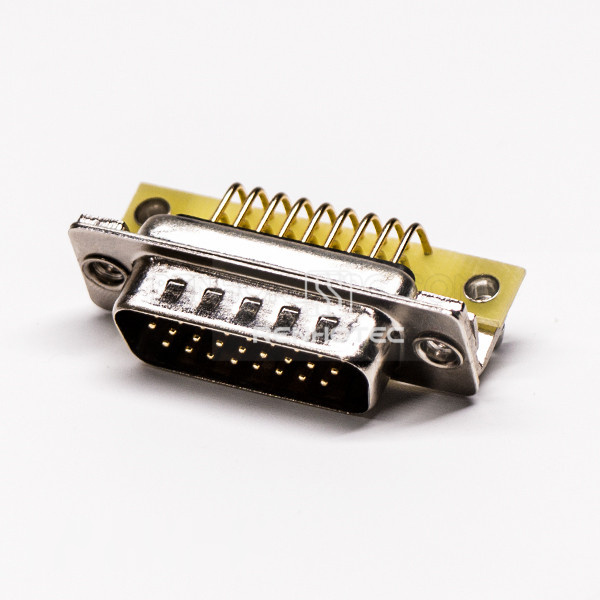

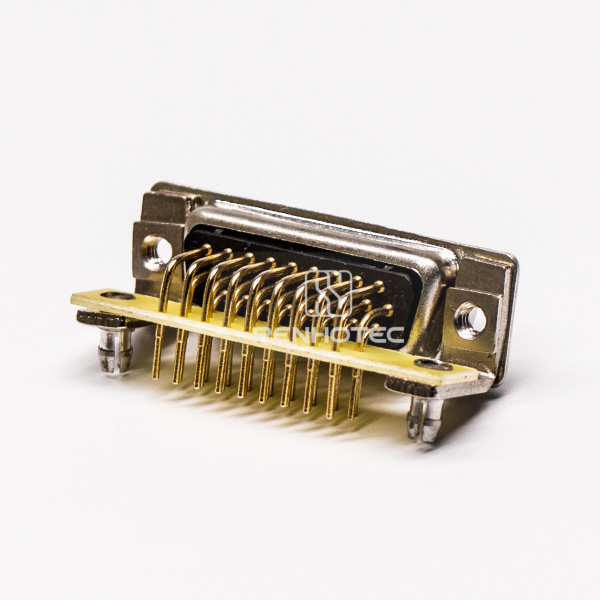

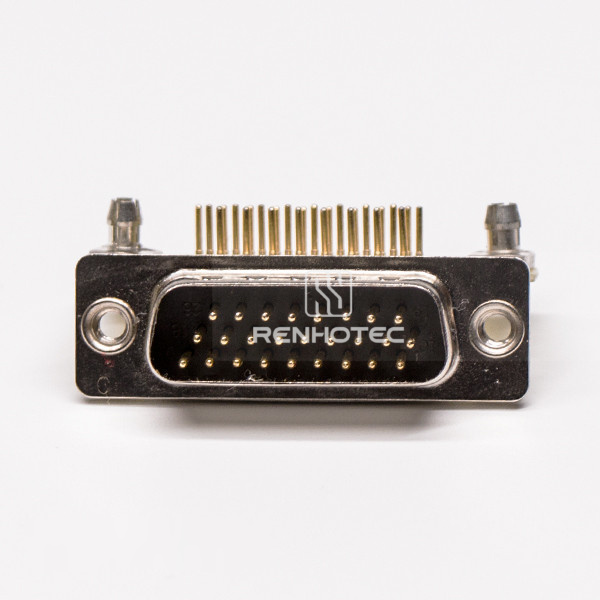

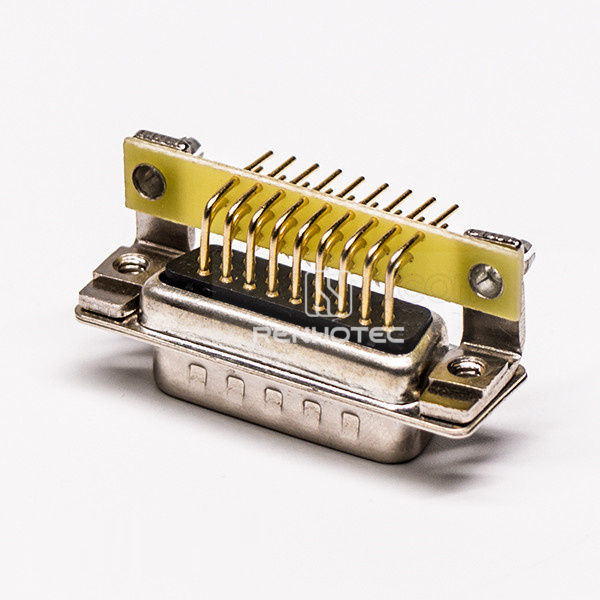

D-SUB 26 pin Right Angle Plug 8.89 Staking type Machined Pin Machined Pin

Public Part No. RHT-681-1214

D-SUB 26 pin Right Angle Plug 8.89 Staking type Machined Pin Machined Pin
Enlarge image
D-SUB 26 pin Right Angle Plug 8.89 Staking type Machined Pin Machined PinD-SUB 26 pin Right Angle Plug 8.89 Staking type Machined Pin Machined PinD-SUB 26 pin Right Angle Plug 8.89 Staking type Machined Pin Machined PinD-SUB 26 pin Right Angle Plug 8.89 Staking type Machined Pin Machined PinD-SUB 26 pin Right Angle Plug 8.89 Staking type Machined Pin Machined Pin

Key specifications

Connector Type
D-SUB
Pin Count
26 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Request QuoteFull specifications

Overview

26-pin male D-SUB connector with right-angle orientation and through-hole PCB mounting. Termination: staking type. It uses machined contacts. Colour: black.
