D-SUB Connector

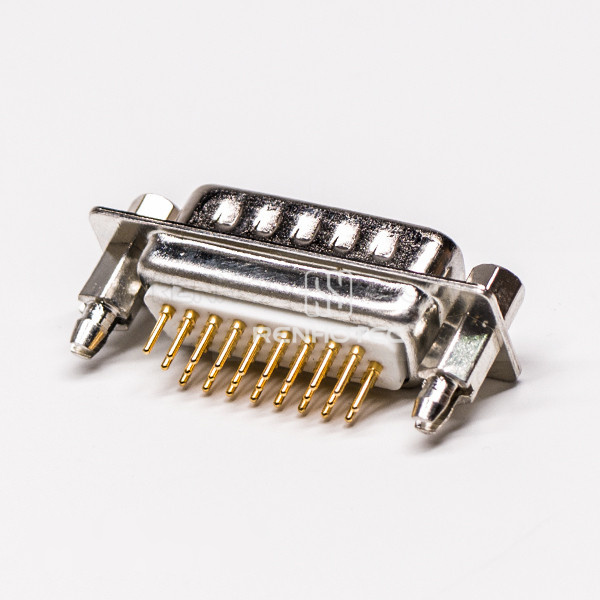

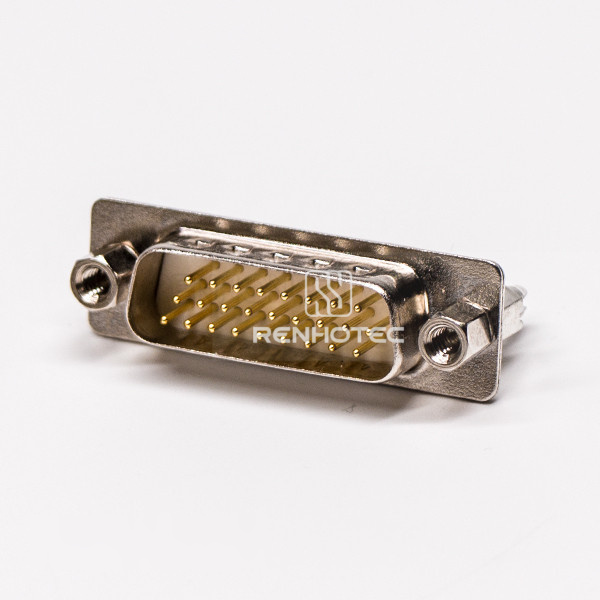

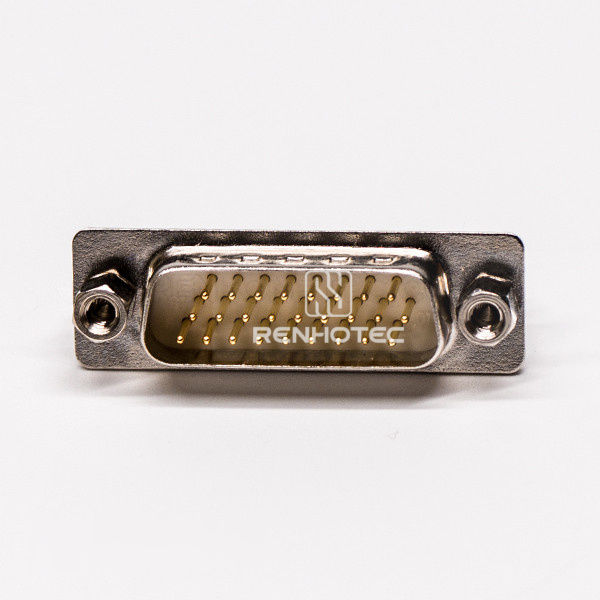

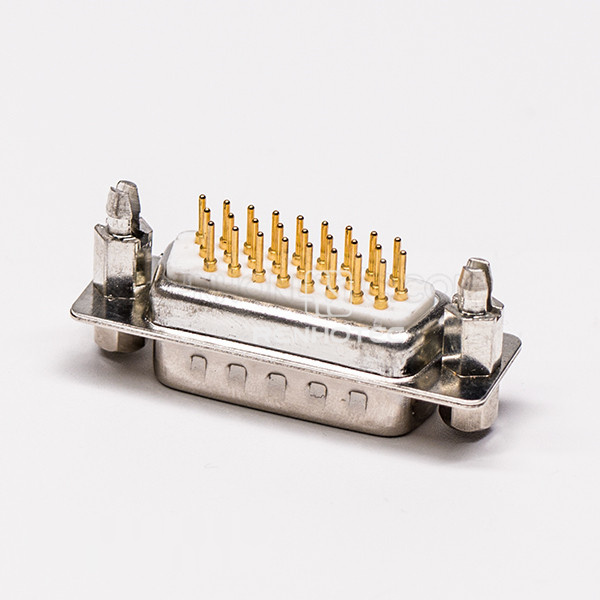

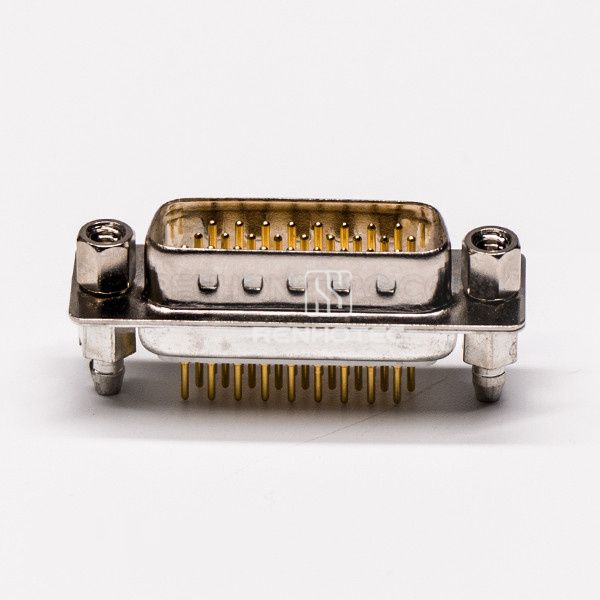

D-SUB 26 Pin Male Straight Staking type Through Hole for PCB Mount Connector

Part No.RHT-681-1213
26-pin male D-SUB connector with straight orientation and through-hole PCB mounting.
  • Connector TypeD-SUB
  • Pin Count26 Pin
  • GenderMale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
300V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
5000MΩ
Contact Resistance
8.5mΩ max. DF: 5mΩ max

Connection

Connector Type
D-SUB

Mechanical

Pin Count
26 Pin
Gender
Male
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Contact construction
Machined contacts / Precision turned contacts

Material

Color
White

Environmental

Operating Temperature options
D: -67°F (-55°C) to +185°F (85°C), DF: -67°F (-55°C) to + 257°F (125°C)

Before you specify

Selection guide

26-pin male D-SUB connector with straight orientation and through-hole PCB mounting. Termination: staking type. It uses machined contacts. Colour: white.

RHT-681-1213
