D-SUB Connector

D-SUB 25 Pos Male Stamped Pin Solder Type Connector

D-SUB 25 Pos Male Stamped Pin Solder Type Connector
Enlarge image
D-SUB 25 Pos Male Stamped Pin Solder Type ConnectorD-SUB 25 Pos Male Stamped Pin Solder Type ConnectorD-SUB 25 Pos Male Stamped Pin Solder Type ConnectorD-SUB 25 Pos Male Stamped Pin Solder Type Connector

Key specifications

Connector Type
D-SUB
Pin Count
25 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type / Stamped Pin
Request QuoteFull specifications

Overview

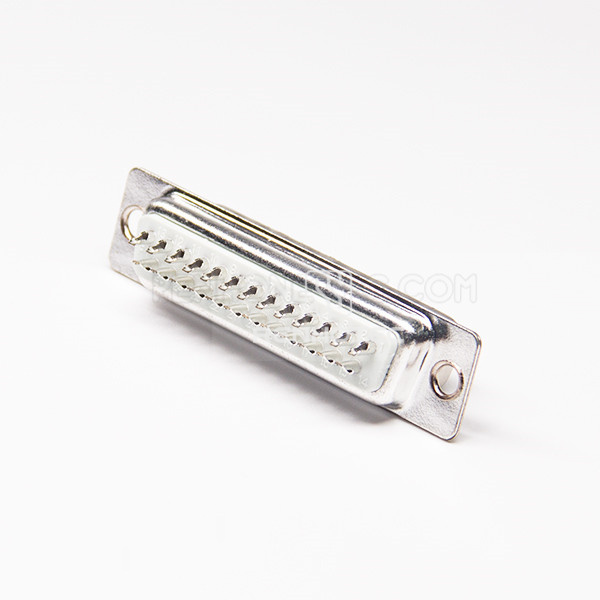

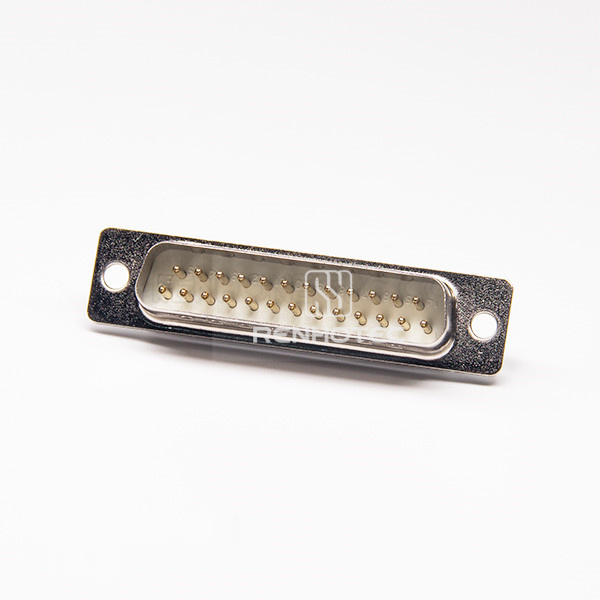

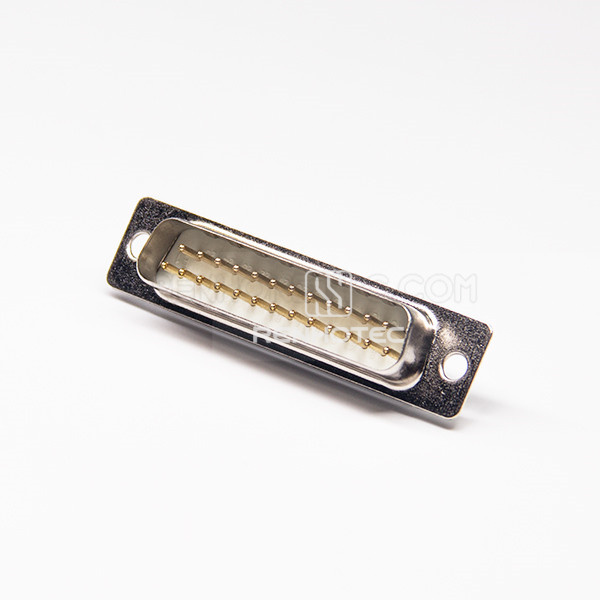

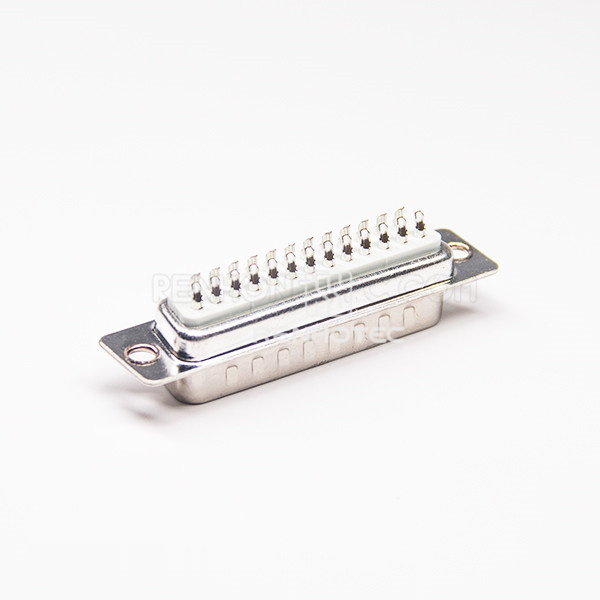

25-pin male D-SUB connector with straight orientation and solder termination. It uses stamped contacts.

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB
Pin Count
25 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type / Stamped Pin
Number of Rows
Dual Row
Mounting detail
Cable mount
Thread detail
Unthreaded
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Surface finish
Tinning
Insert material
Flame-retardant thermoplastic

Environmental

Waterproof Rating
IP20 STANDARD TYPE
Operating Temperature
-55 to 125 °C
