D-SUB Connector

D-SUB 44 Pin Right Angle Female Connector Solder Type for PCB Mount

Public Part No. RHT-681-1142

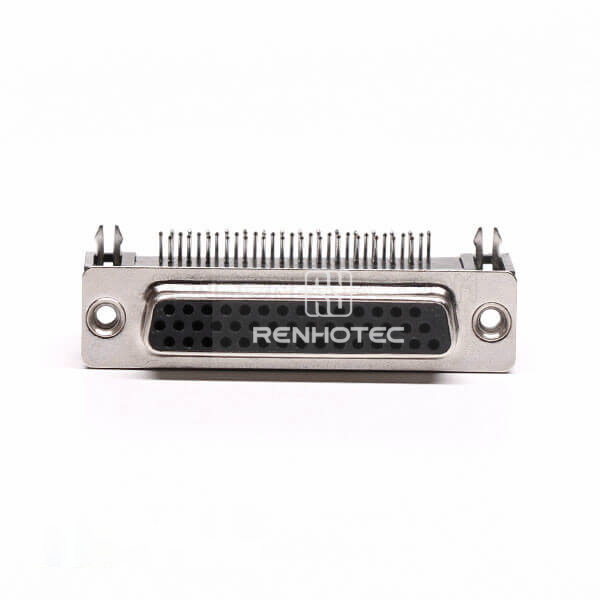

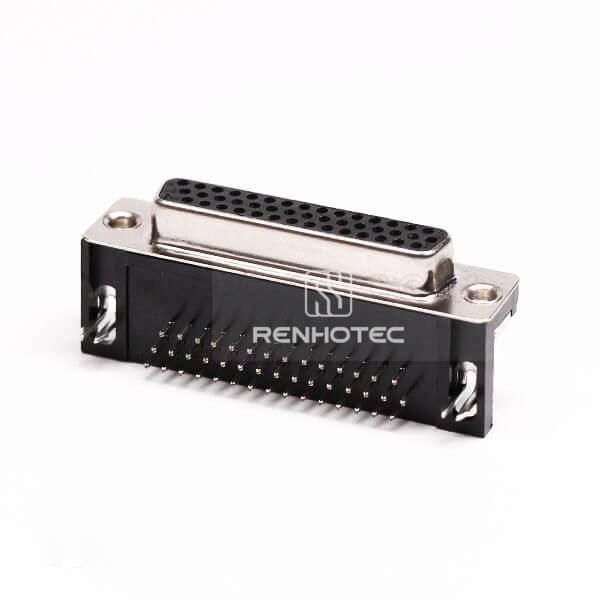

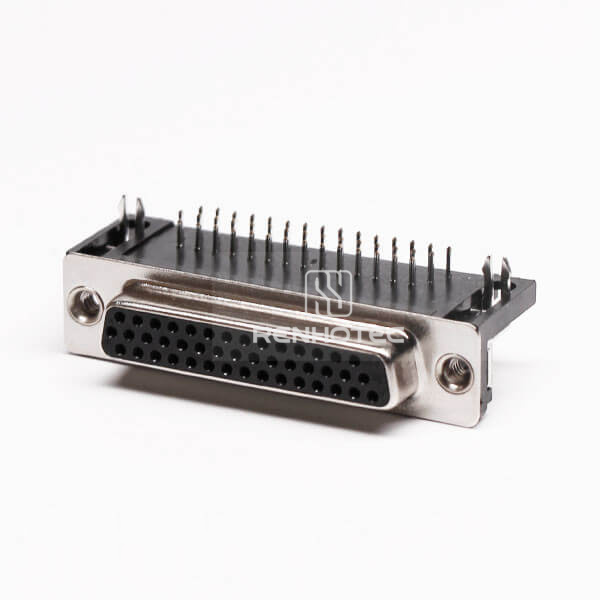

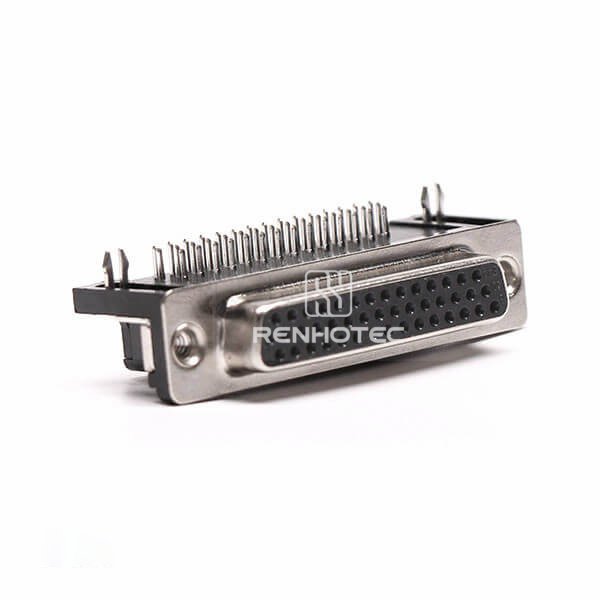

D-SUB 44 Pin Right Angle Female Connector Solder Type for PCB Mount
Enlarge image
D-SUB 44 Pin Right Angle Female Connector Solder Type for PCB MountD-SUB 44 Pin Right Angle Female Connector Solder Type for PCB MountD-SUB 44 Pin Right Angle Female Connector Solder Type for PCB MountD-SUB 44 Pin Right Angle Female Connector Solder Type for PCB Mount

Key specifications

Connector Type
D-SUB
Pin Count
44 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type
Request QuoteFull specifications

Overview

44-pin female D-SUB connector with right-angle orientation, through-hole PCB mounting and solder termination. Colour: black.

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB
Pin Count
44 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Color
Black
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
