D-SUB Connector

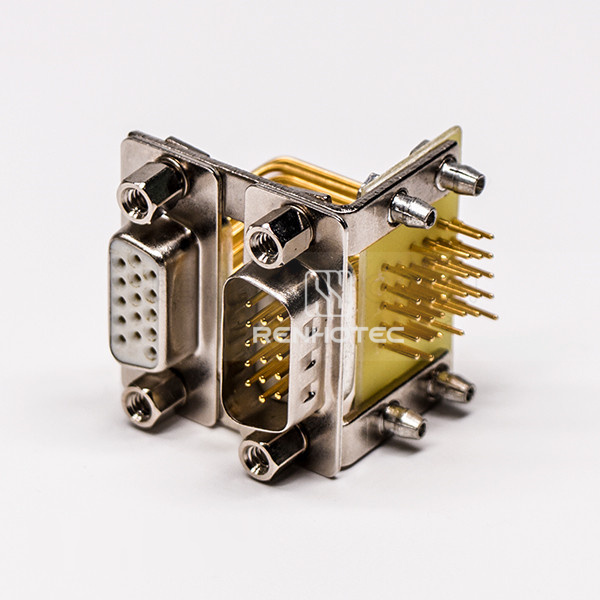

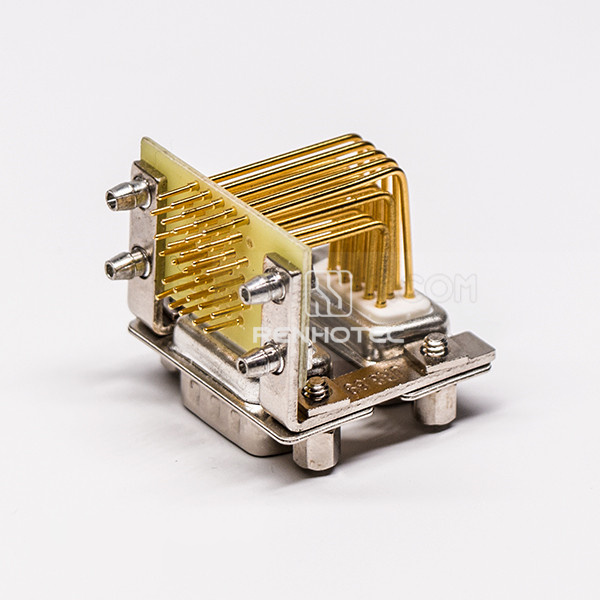

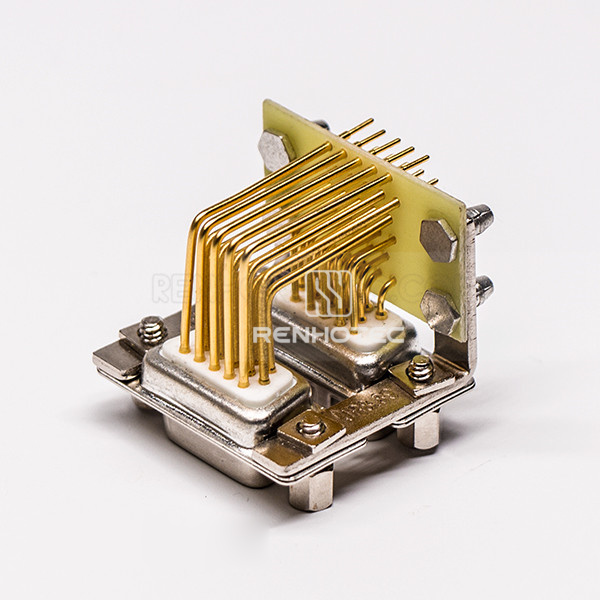

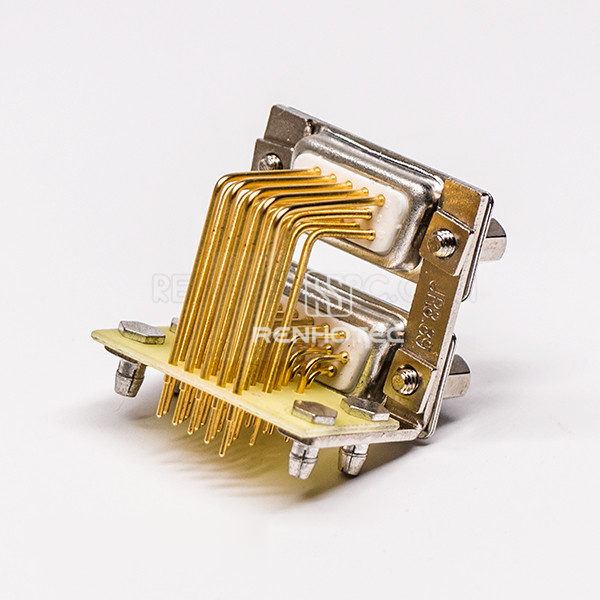

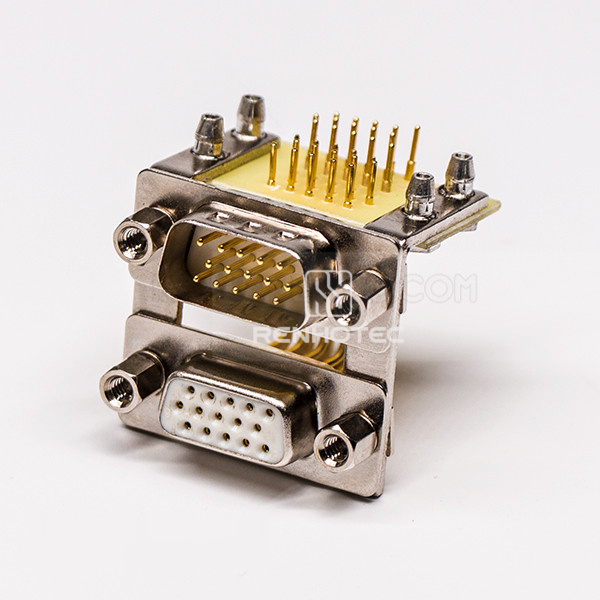

D-SUB 15Pin Stacked Connector 90 Degree 19.05 Staking type White Receptacle For PCB Mount
- Connector TypeD-SUB
- Pin Count15 Pin
- OrientationRight Angle
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Voltage Rating
- 300V AC RMS 50 Hz
- Withstanding Voltage
- 1000V AC/ rms 50Hz for one minute
- Insulation Resistance
- 5000MΩ
- Contact Resistance
- 8.5mΩ max. DF: 5mΩ max
Connection
- Connector Type
- D-SUB
Mechanical
- Pin Count
- 15 Pin
- Orientation
- Right Angle
- Mounting Type
- PCB Mount / Through Hole
- Termination Type
- Staking Type
- Contact construction
- Machined contacts / Precision turned contacts
- Construction detail
- Stacked
- Gender at connector ends
- Female / Male
Material
- Color
- White
Environmental
- Operating Temperature options
- D: -67°F (-55°C) to +185°F (85°C), DF: -67°F (-55°C) to + 257°F (125°C)
Before you specify
Selection guide
15-pin stacked D-SUB connector with male and female interfaces in a right-angle configuration. Termination: staking type. It uses machined contacts. Colour: white.
RHT-681-1212
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
D-SUB 15Pin Stacked Connector 90 Degree 19.05 Staking type White Receptacle For PCB Mount- Product family
- D-SUB Connector
- Public Part No.
- RHT-681-1212
