D-SUB Connector

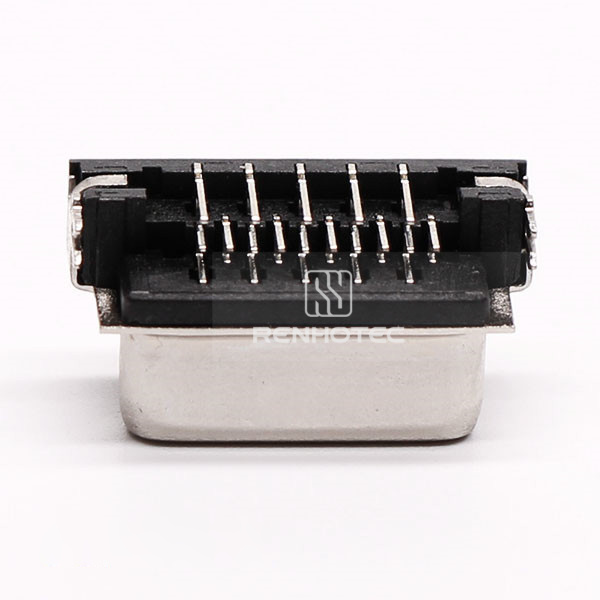

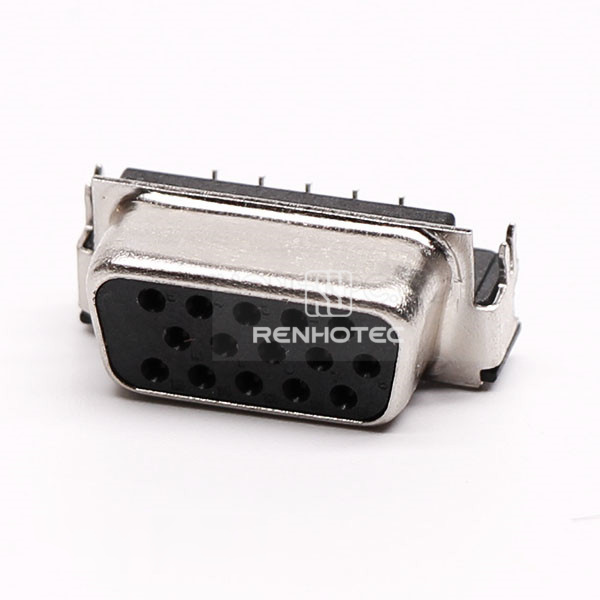

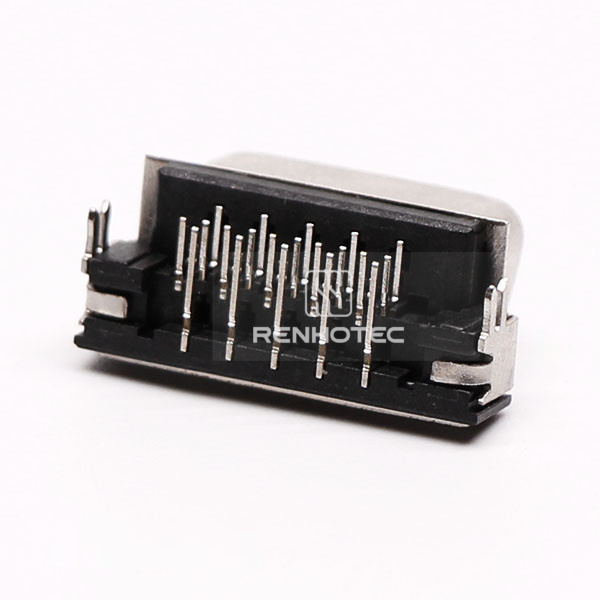

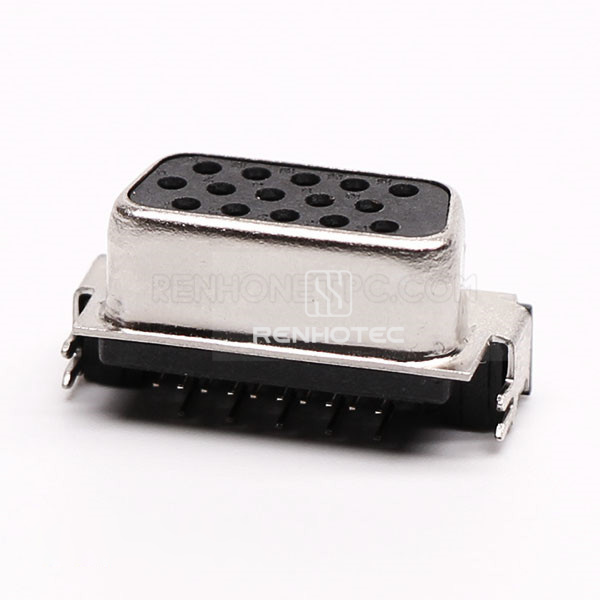

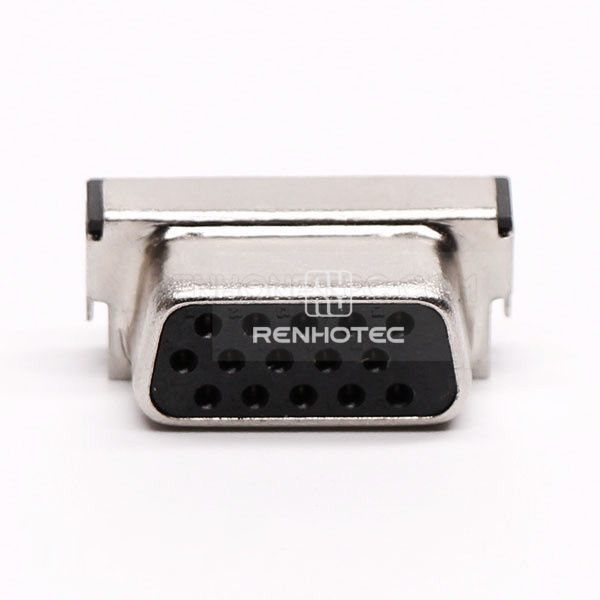

15-Contact Female D-SUB Connector, Right-Angle SMT

Public Part No. RHT-681-1209

15-Contact Female D-SUB Connector, Right-Angle SMT
Enlarge image
15-Contact Female D-SUB Connector, Right-Angle SMT15-Contact Female D-SUB Connector, Right-Angle SMT15-Contact Female D-SUB Connector, Right-Angle SMT15-Contact Female D-SUB Connector, Right-Angle SMT15-Contact Female D-SUB Connector, Right-Angle SMT

Key specifications

Connector Type
Cable Connector / D-SUB
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / SMT
Termination Type
Stamped Pin
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
3A
Voltage Rating
60V
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V

Mechanical

Connector Type
Cable Connector / D-SUB
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / SMT
Termination Type
Stamped Pin
Shielding
Shielded
Extraction force
<50 N
Insertion force
<50 N
Mating cycles
50

Material

Color
Blue
Shell construction
Metal shell

Environmental

Operating Temperature
-55 to 105 °C
