D-SUB Connector

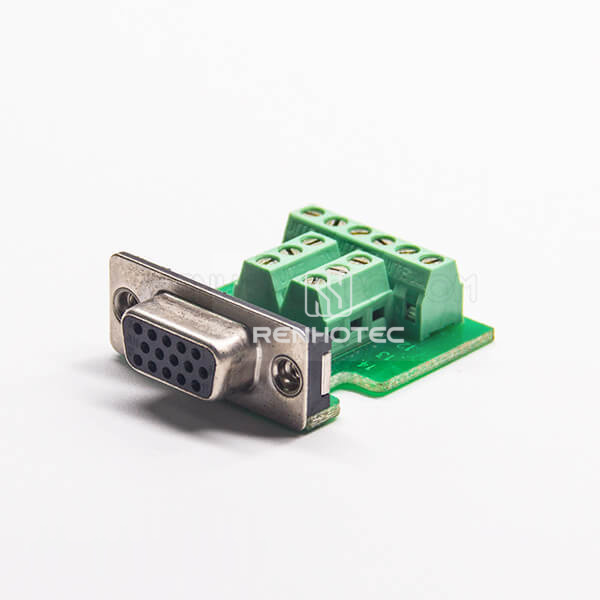

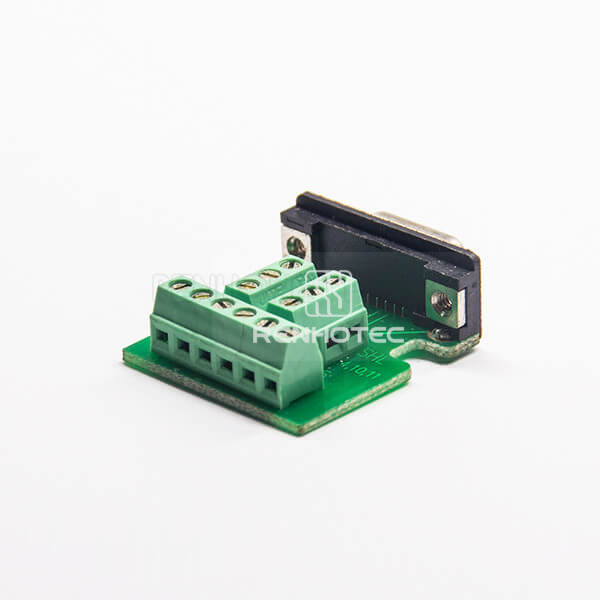

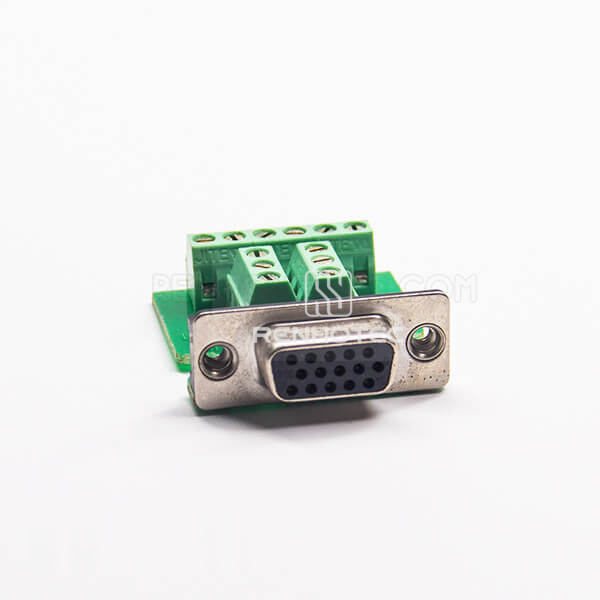

D-SUB 15 pin VGA Right Angle High Density D-SUB Female To Female 12Pin Breakout Board Gender Changers

Part No.RHT-681-1287
15-pin female high-density D-SUB connector with a 12-pin breakout board in a right-angle configuration.
  • Connector TypeD-SUB Adapter&Gender Changers
  • GenderFemale
  • OrientationRight Angle

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Connection

Connector Type
D-SUB Adapter&Gender Changers

Mechanical

Gender
Female
Orientation
Right Angle
Construction detail
Breakout Board
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Pin Count at connector ends
12 Pin / 15 Pin

Material

Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Before you specify

Selection guide

15-pin female high-density D-SUB connector with a 12-pin breakout board in a right-angle configuration.

RHT-681-1287
