D-SUB Connector

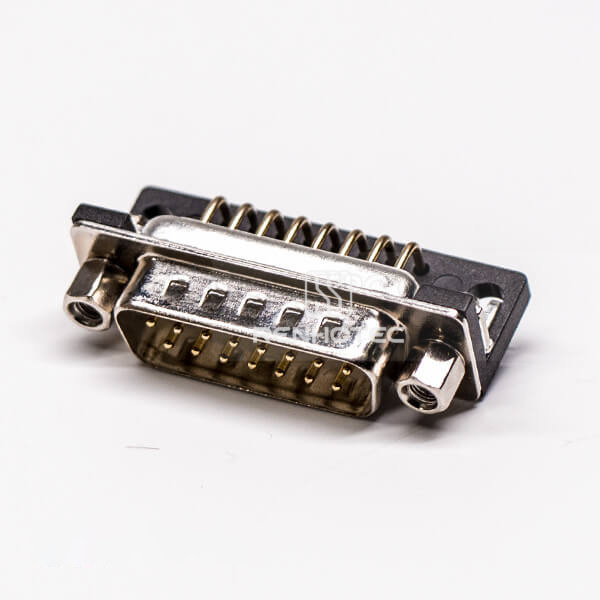

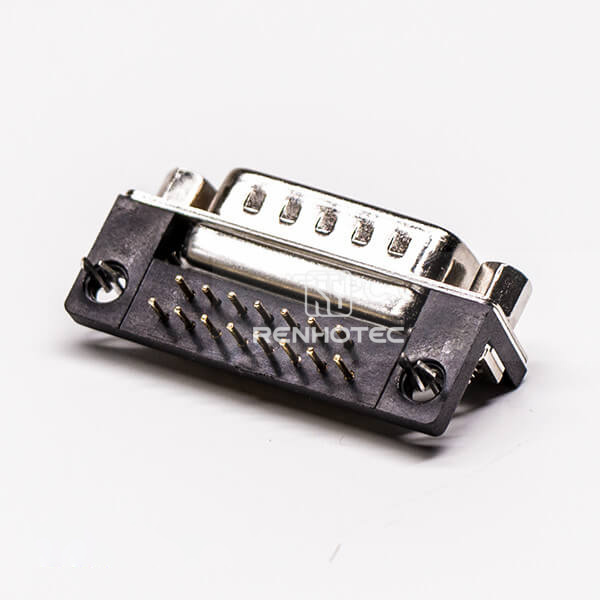

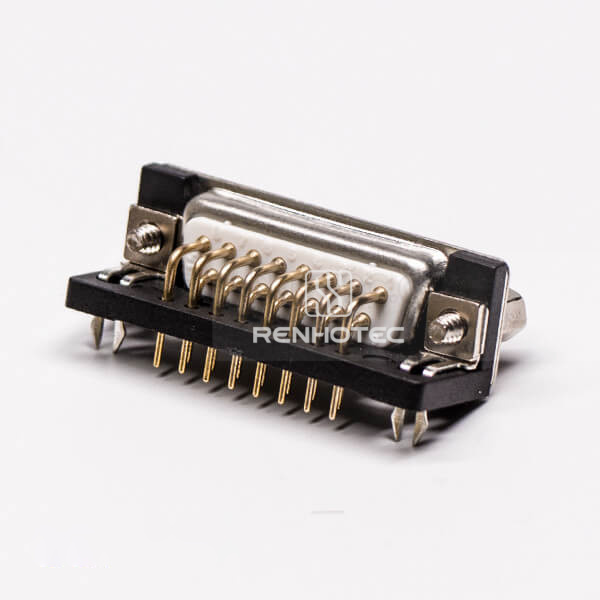

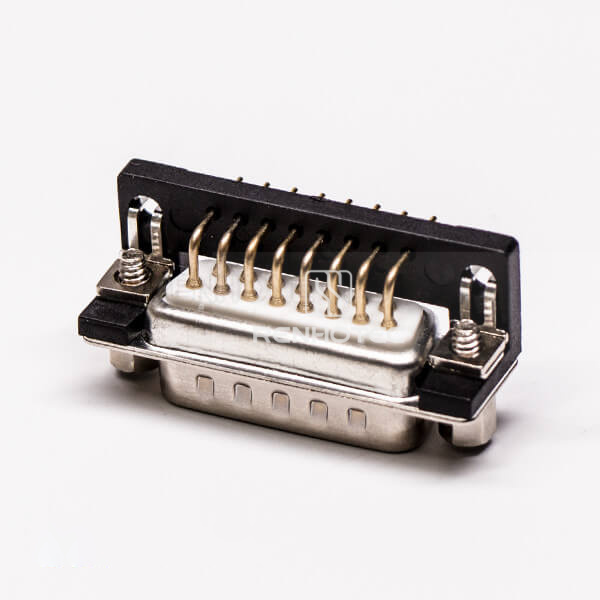

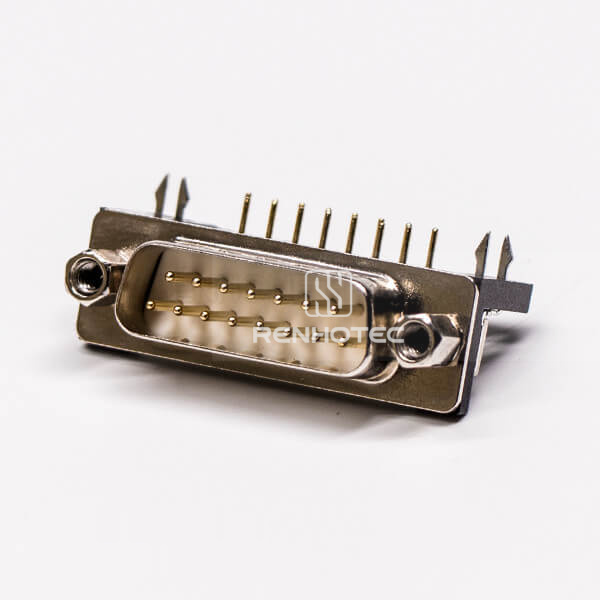

D-SUB 15 Pin Male Cable Connector Solder Type Right Angle with Staking

Public Part No. RHT-681-1168

D-SUB 15 Pin Male Cable Connector Solder Type Right Angle with Staking
Enlarge image
D-SUB 15 Pin Male Cable Connector Solder Type Right Angle with StakingD-SUB 15 Pin Male Cable Connector Solder Type Right Angle with StakingD-SUB 15 Pin Male Cable Connector Solder Type Right Angle with StakingD-SUB 15 Pin Male Cable Connector Solder Type Right Angle with StakingD-SUB 15 Pin Male Cable Connector Solder Type Right Angle with Staking

Key specifications

Pin Count
15 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type / Staking Type
Request QuoteFull specifications

Overview

15-pin male D-SUB connector with right-angle orientation, through-hole PCB mounting and solder termination. Termination: staking type.

Full Specifications

Electrical

Voltage Rating
300V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
5000MΩ
Contact Resistance
8.5mΩ max. DF: 5mΩ max

Mechanical

Pin Count
15 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type / Staking Type
Contact construction
Precision turned contacts

Environmental

Operating Temperature options
D: -67°F (-55°C) to +185°F (85°C), DF: -67°F (-55°C) to + 257°F (125°C)

Connector requirement

Request a quote

Share your connector requirements and the specifications you need.

    Inquiry details

    Attach one PDF, JPEG or PNG, up to 5 MB.

    Include the details needed to help with your connector inquiry. You can check them before sending.

    Complete verification before sending.
