D-SUB Connector

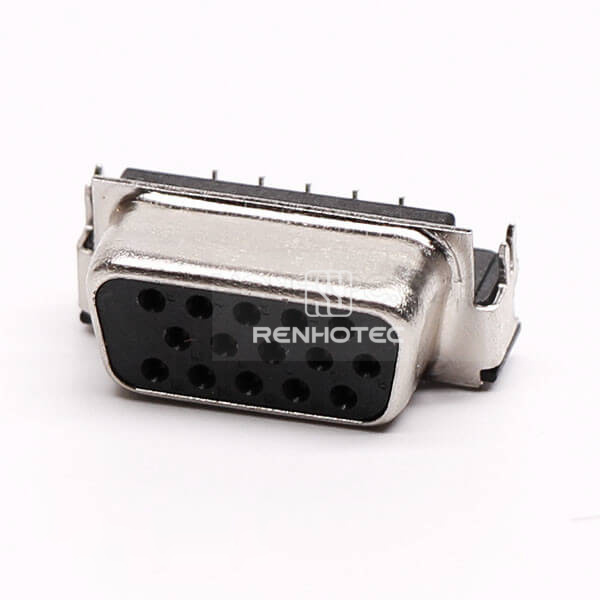

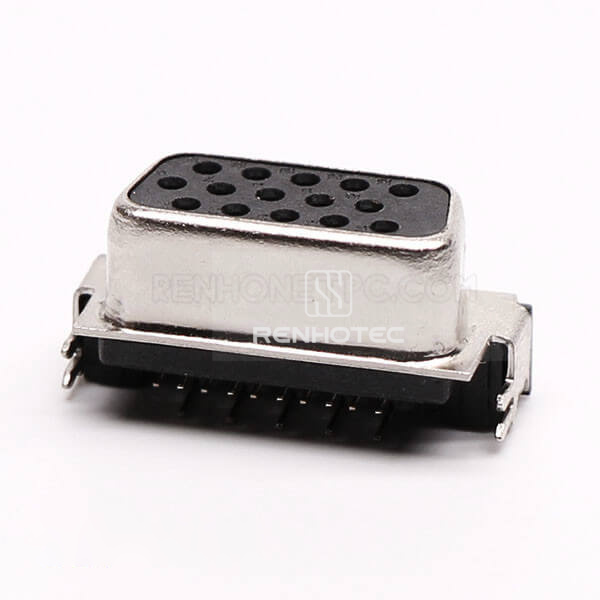

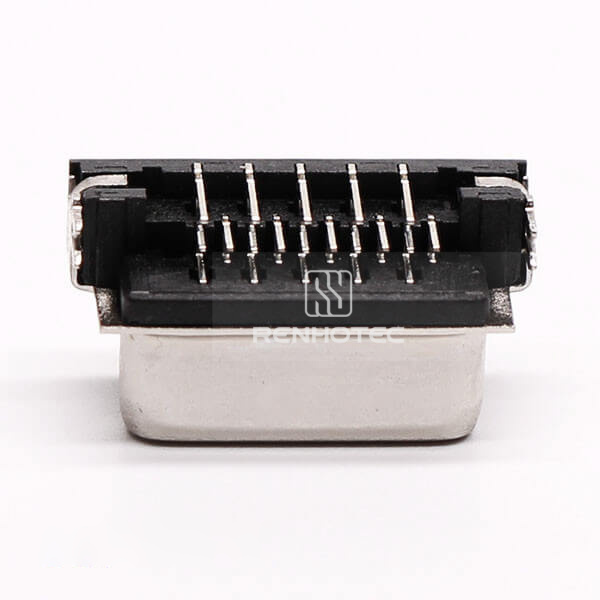

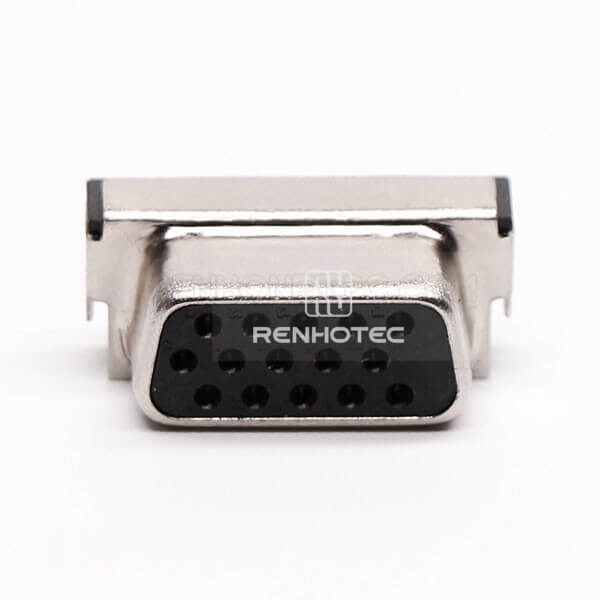

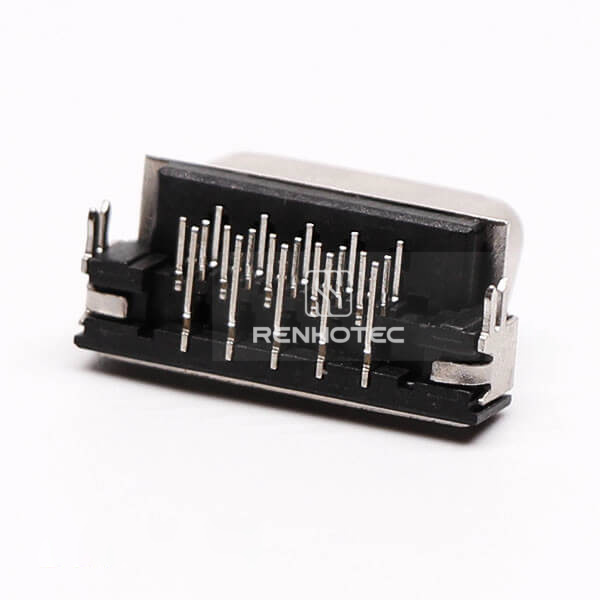

D-SUB 15 Pin Connector Female Right Angle PCB Mount

Public Part No. RHT-681-1194

D-SUB 15 Pin Connector Female Right Angle PCB Mount
Enlarge image
D-SUB 15 Pin Connector Female Right Angle PCB MountD-SUB 15 Pin Connector Female Right Angle PCB MountD-SUB 15 Pin Connector Female Right Angle PCB MountD-SUB 15 Pin Connector Female Right Angle PCB MountD-SUB 15 Pin Connector Female Right Angle PCB Mount

Key specifications

Pin Count
15 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount
Request QuoteFull specifications

Overview

15-pin female D-SUB connector with right-angle orientation and PCB mounting. Colour: black.

Full Specifications

Electrical

Current Rating
3A
Voltage Rating
60V
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V

Mechanical

Pin Count
15 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount
Shielding
Shielded
Extraction force
<50 N
Insertion force
<50 N
Mating cycles
50

Material

Color
Black
Shell construction
Metal shell

Environmental

Operating Temperature
-55 to 105 °C
