D-SUB Connector

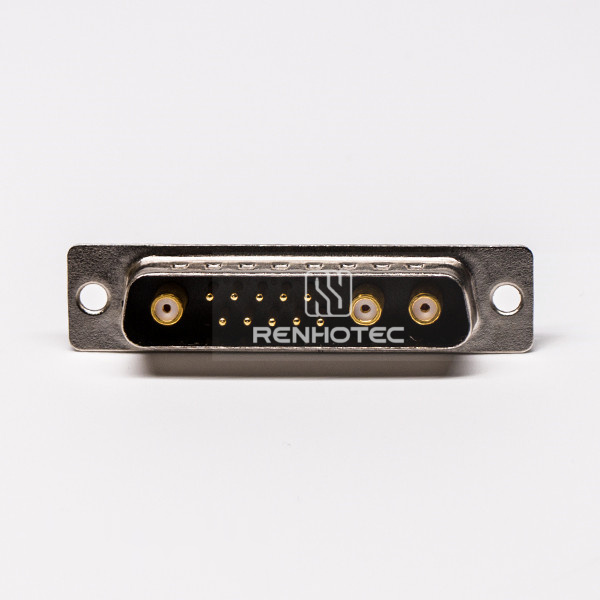

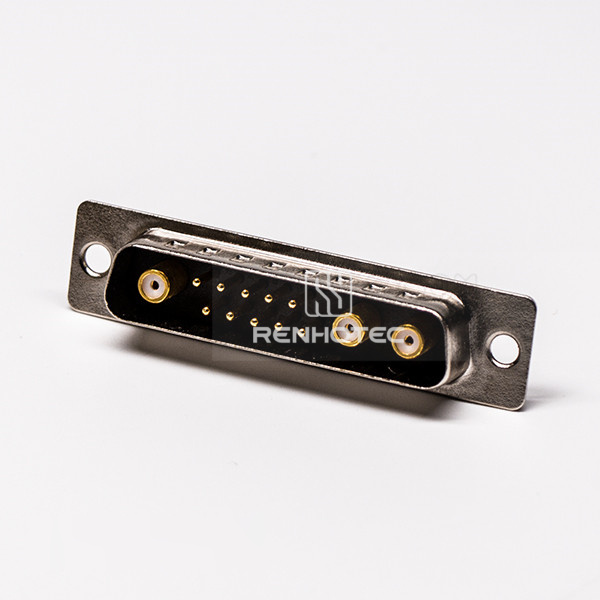

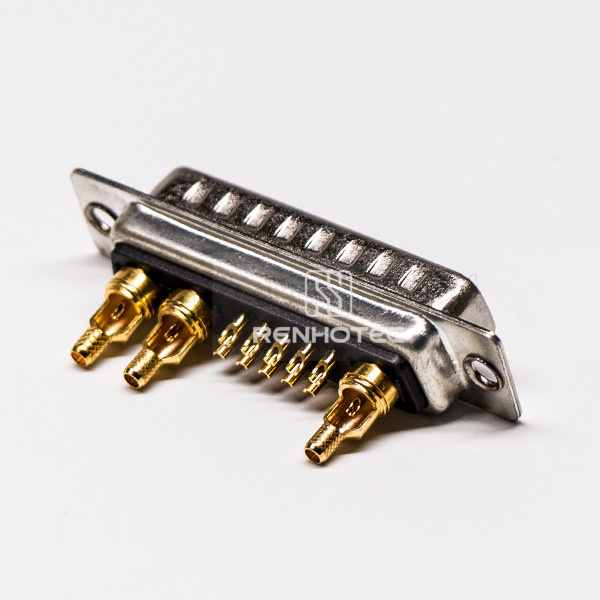

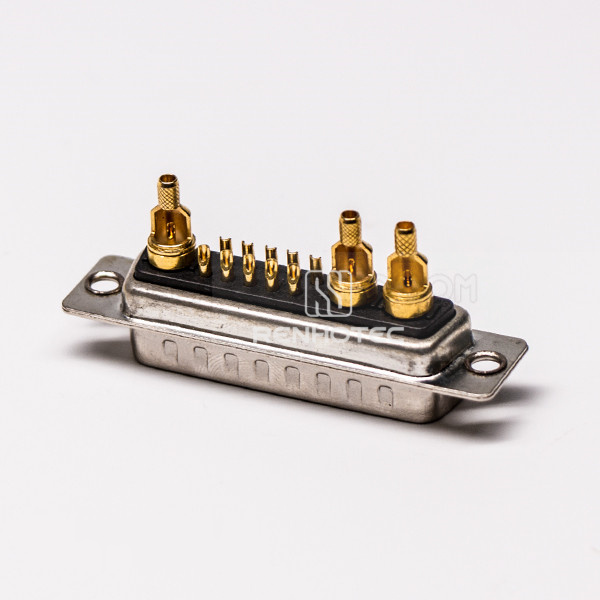

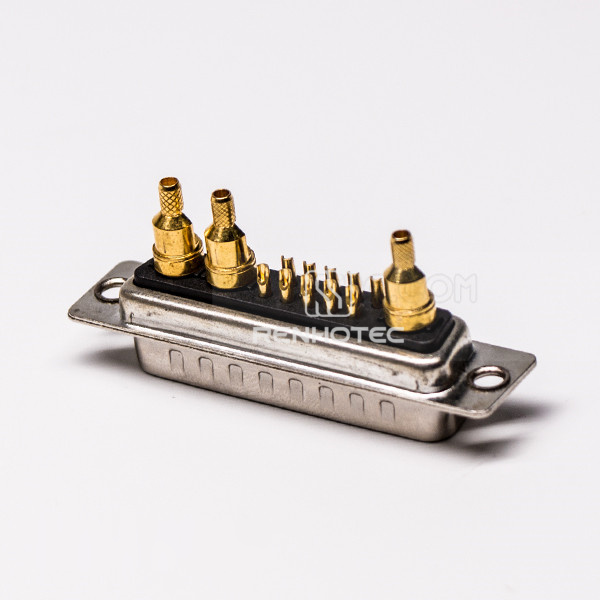

Coaxial D-SUB 13W3 Power Connector 180°Male Staking and Solder Type For Cable Mount

Public Part No. RHT-681-1237

Coaxial D-SUB 13W3 Power Connector 180°Male Staking and Solder Type For Cable Mount
Enlarge image
Coaxial D-SUB 13W3 Power Connector 180°Male Staking and Solder Type For Cable MountCoaxial D-SUB 13W3 Power Connector 180°Male Staking and Solder Type For Cable MountCoaxial D-SUB 13W3 Power Connector 180°Male Staking and Solder Type For Cable MountCoaxial D-SUB 13W3 Power Connector 180°Male Staking and Solder Type For Cable MountCoaxial D-SUB 13W3 Power Connector 180°Male Staking and Solder Type For Cable Mount

Key specifications

Connector Type
Cable Connector / Power D-SUB
Gender
Male
Orientation
Straight
Termination Type
Solder Type / Staking Type
Request QuoteFull specifications

Overview

13W3 male D-SUB connector with straight orientation and solder termination. Termination: staking type.

Full Specifications

Electrical

Frequency range
0 -1 GHz
VSWR
1.4 (+0.04/GHz)
Characteristic Impedance
50 Ohms
Dielectric Withstanding Voltage
≥ 1000V R.M.S. at 50Hz
Insulation Resistance
≥ 5000 megaohms at 500 V D.C.
Contact Resistance
≤5 milliohms

Mechanical

Connector Type
Cable Connector / Power D-SUB
Gender
Male
Orientation
Straight
Termination Type
Solder Type / Staking Type
Contact configuration
13w3 / 13W3
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 155 °C
