D-SUB Connector

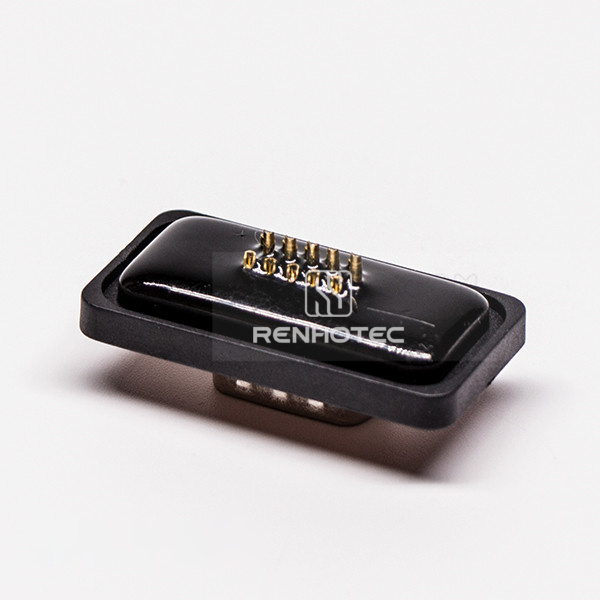

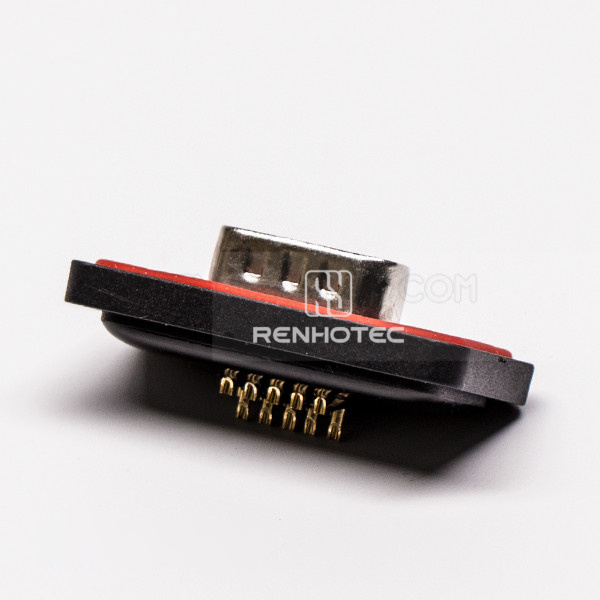

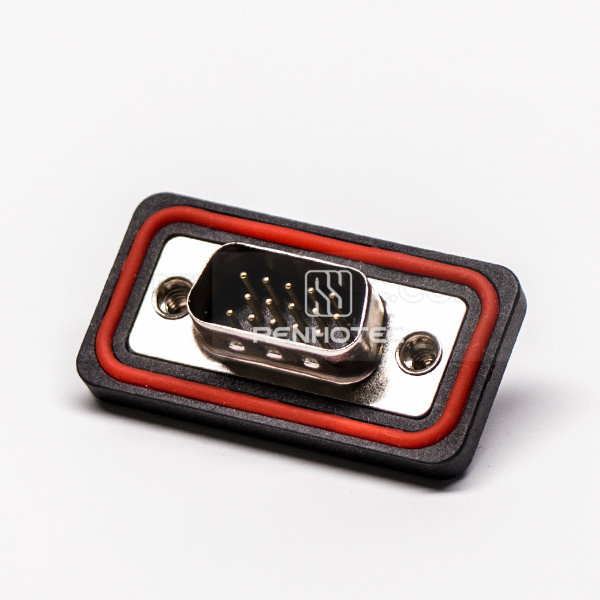

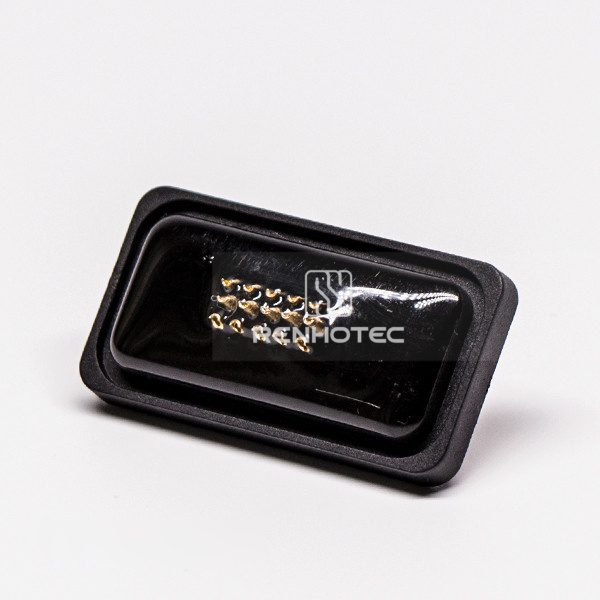

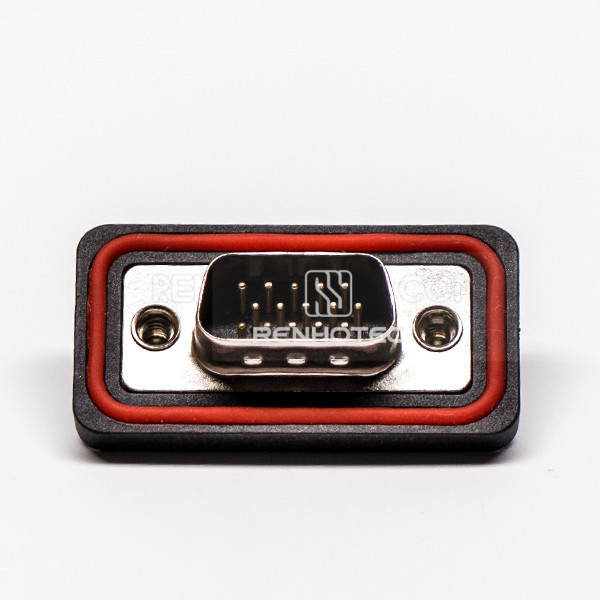

Waterproof DB 15 Male 180° Cable Connector Solder Type

Part No.RHT-681-1186
15-pin male D-SUB connector with straight orientation and solder termination.
  • Connector TypeCable Connector / D-SUB
  • Pin Count15 Pin
  • GenderMale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Connection

Connector Type
Cable Connector / D-SUB

Mechanical

Pin Count
15 Pin
Gender
Male
Orientation
Straight
Termination Type
Solder Type
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Operating Temperature
-25 to 125 °C

Before you specify

Selection guide

15-pin male D-SUB connector with straight orientation and solder termination. It uses machined contacts. An interfacial seal is included.

RHT-681-1186
