D-SUB Connector

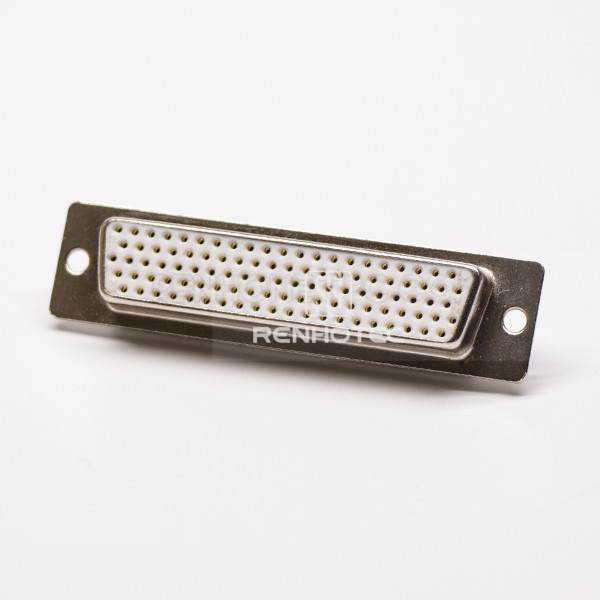

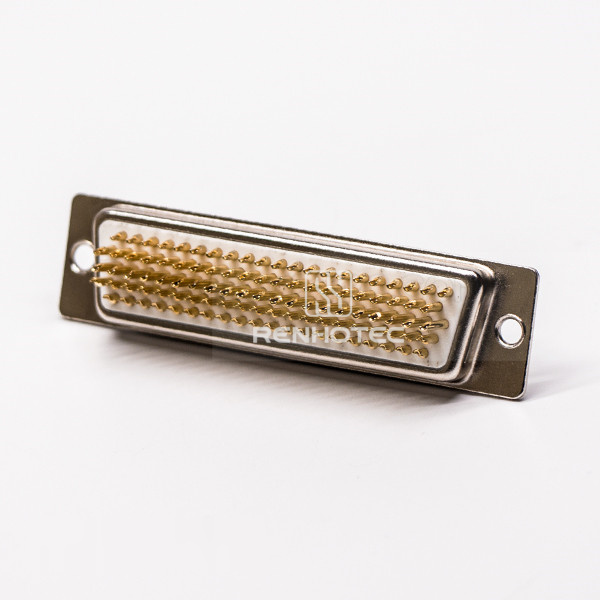

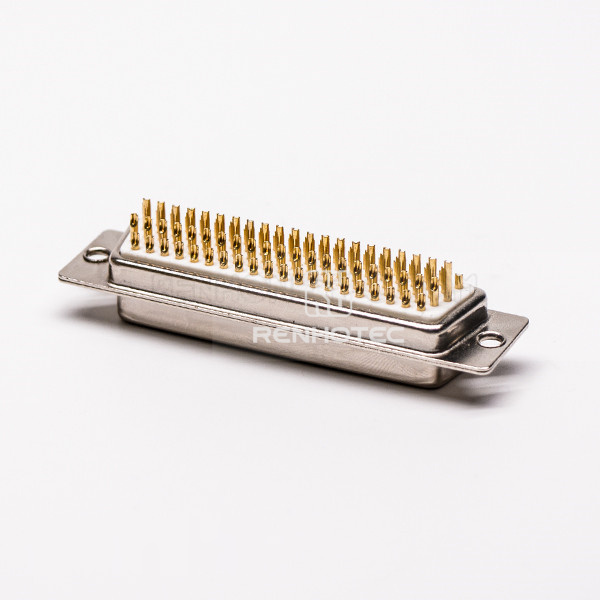

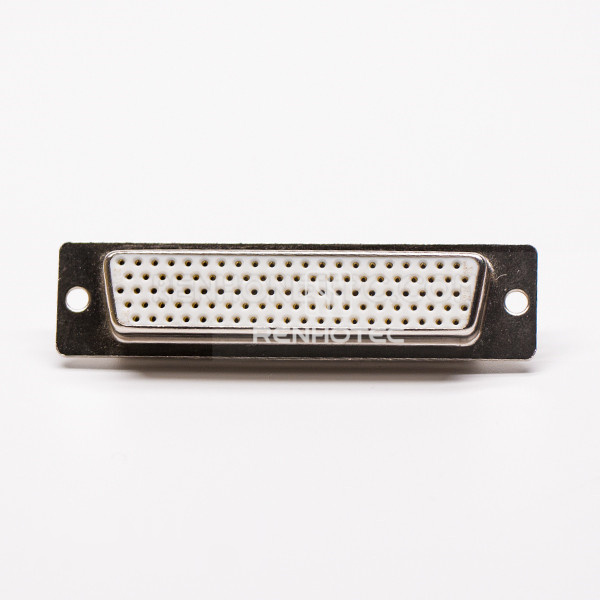

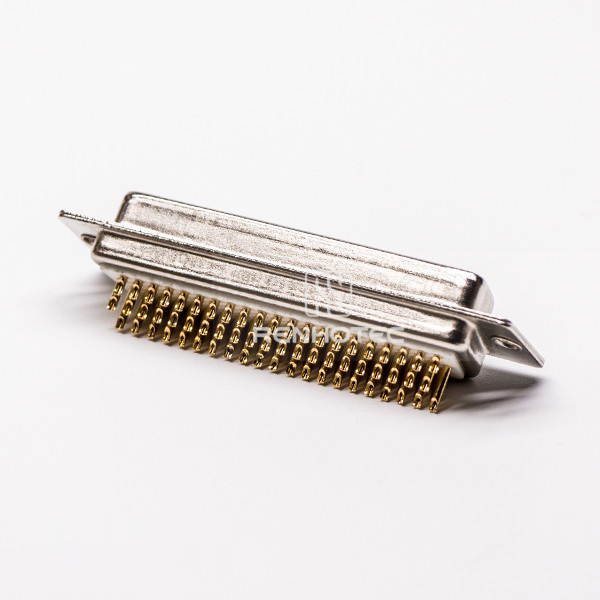

D-SUB 104 pin female High Density Female Straight Staking type Cable Solder type Connector

Public Part No. RHT-681-1130

D-SUB 104 pin female High Density Female Straight Staking type Cable Solder type Connector
Enlarge image
D-SUB 104 pin female High Density Female Straight Staking type Cable Solder type ConnectorD-SUB 104 pin female High Density Female Straight Staking type Cable Solder type ConnectorD-SUB 104 pin female High Density Female Straight Staking type Cable Solder type ConnectorD-SUB 104 pin female High Density Female Straight Staking type Cable Solder type ConnectorD-SUB 104 pin female High Density Female Straight Staking type Cable Solder type Connector

Key specifications

Connector Type
Cable Connector / D-SUB
Pin Count
104 Pin
Gender
Female
Orientation
Straight
Termination Type
Solder Type / Staking Type
Request QuoteFull specifications

Overview

104-pin female high-density D-SUB connector with straight orientation and solder termination. Termination: staking type. Colour: white.

Full Specifications

Electrical

Current Rating
3A
Voltage Rating
60V
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V

Mechanical

Connector Type
Cable Connector / D-SUB
Pin Count
104 Pin
Gender
Female
Orientation
Straight
Termination Type
Solder Type / Staking Type
Shielding
Shielded
Extraction force
<50 N
Insertion force
<50 N
Mating cycles
50

Material

Color
White
Shell construction
Metal shell

Environmental

Operating Temperature
-55 to 105 °C
