DVI Connector

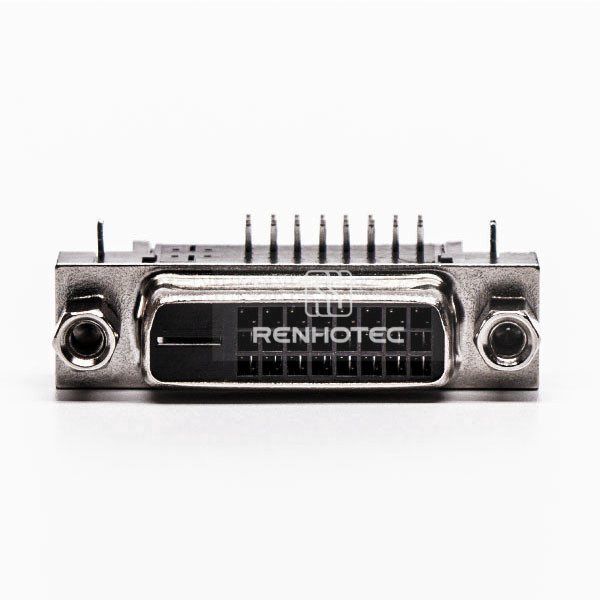

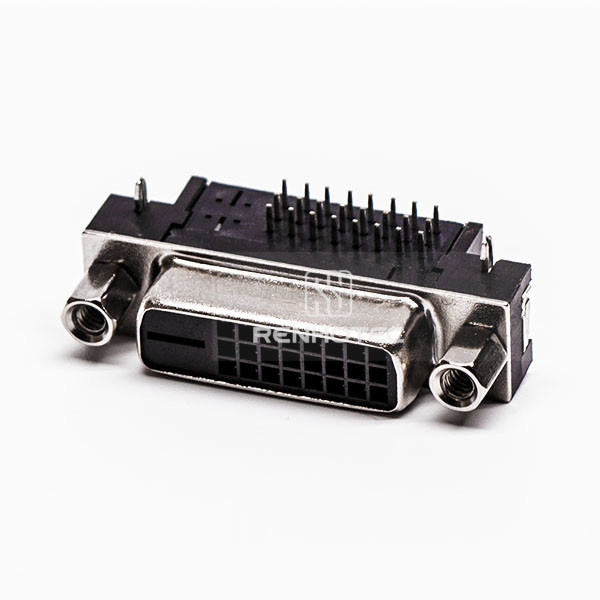

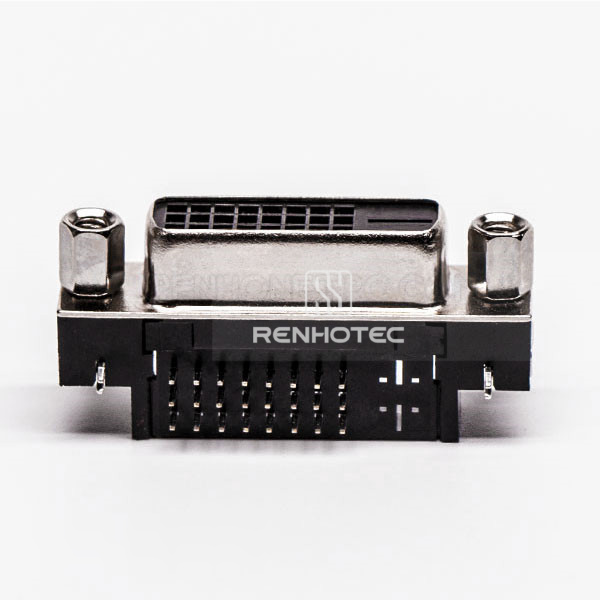

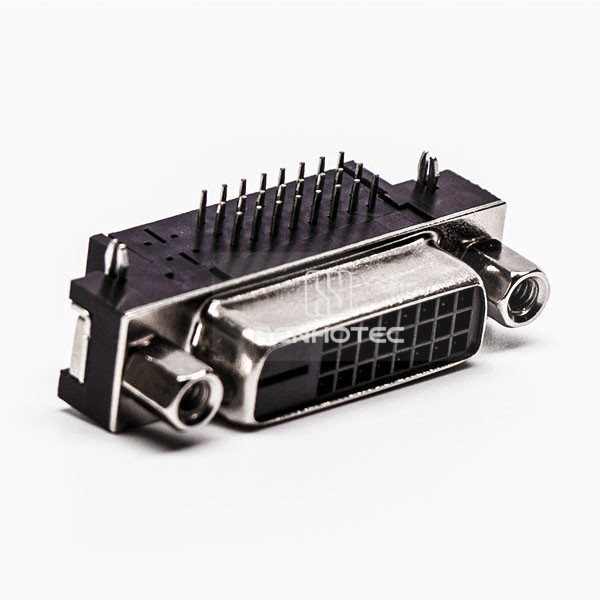

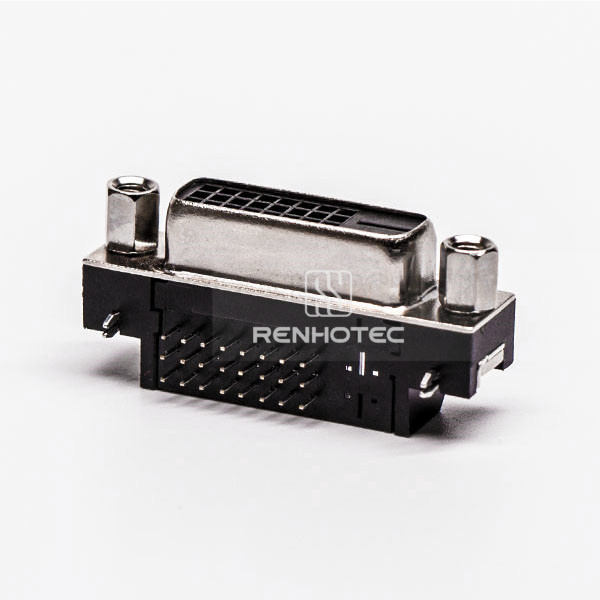

DVI Connector RHT-621-2106
- Connector TypeDVI-D
- GenderFemale
- OrientationRight Angle
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1.5A min.
- Contact Resistance
- 20 Millohms Max
- Insulation Resistance
- 1000Megohms Min
- Dielectric Withstanding
- 1000V DC
- Dielectric Withstanding Voltage
- 500V DC RMS ±50V 60HZ
Connection
- Connector Type
- DVI-D
Mechanical
- Gender
- Female
- Orientation
- Right Angle
- Mounting Type
- PCB Mount / Through Hole
- Contact configuration
- 24+1
- Construction detail
- Nut
- Extraction force
- 1KGf Min. 4KGf Max
- Insertion force
- 4.5KGf Max
Material
- Color
- Black
Environmental
- Operating Temperature
- -20 to 85 °C
Before you specify
Selection guide
DVI-D 24+1 female connector in black, with right-angle orientation and through-hole PCB mounting. Includes a nut.
RHT-621-2106
