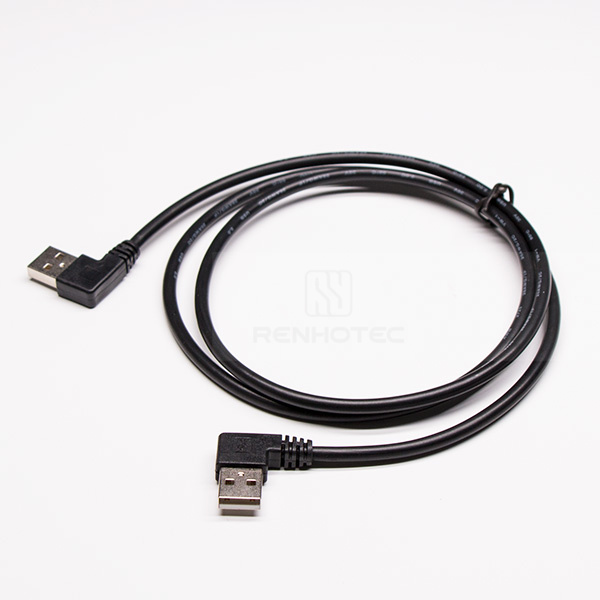

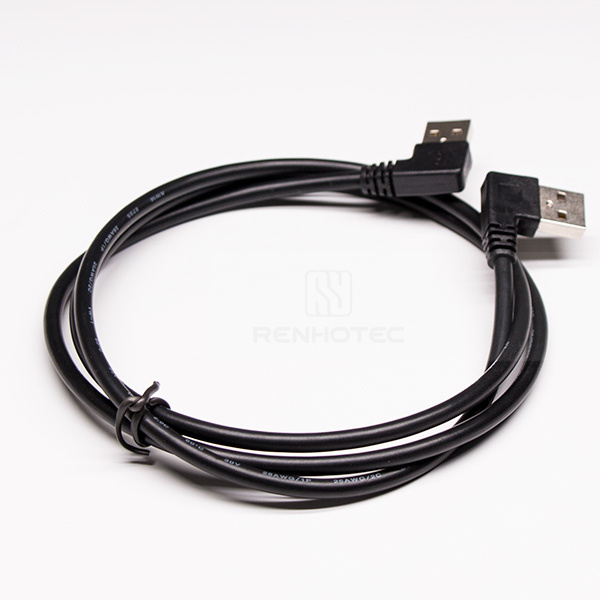

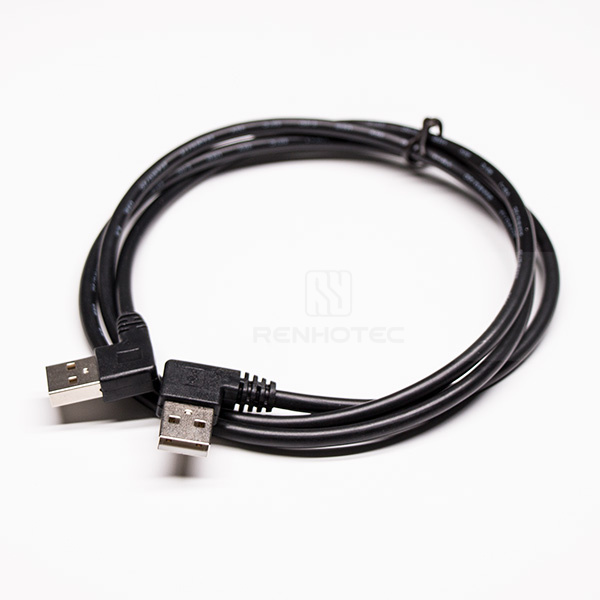

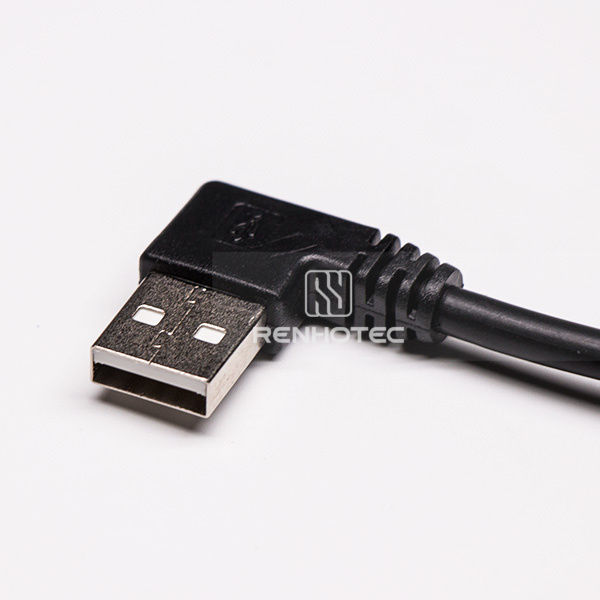

Angled Type A USB Conversion Cable A Type Male to Male 90 Degree 1m

Public Part No. RHT-605-2509

Angled Type A USB Conversion Cable A Type Male to Male 90 Degree 1m
Enlarge image
Angled Type A USB Conversion Cable A Type Male to Male 90 Degree 1mAngled Type A USB Conversion Cable A Type Male to Male 90 Degree 1mAngled Type A USB Conversion Cable A Type Male to Male 90 Degree 1mAngled Type A USB Conversion Cable A Type Male to Male 90 Degree 1m

Key specifications

Connector Type
Type A
Orientation
Right Angle
Pin Count
4 Pin
Request QuoteFull specifications

Overview

1 m USB Type-A cable with right-angle male connectors at both ends. Compare both plug directions and the cable route with the available space.

Full Specifications

Electrical

Current Rating
1.5A
Data rate
Up to 5 Gb/s
Dielectric Withstanding Voltage
100V R.M.S
Insulation Resistance
1000 Megohms Min

Mechanical

Connector Type
Type A
Pin Count
4 Pin
Orientation
Right Angle
Shielding
Shielded
Mounting detail
for cable
Mating Force
3.57kg Max
Unmating Force
1.02kg Min
Gender at connector ends
USB-A: Right Angle Male / USB-A: Right Angle Male

Environmental

Operating Temperature
-45 to 85 °C
