D-SUB Connector

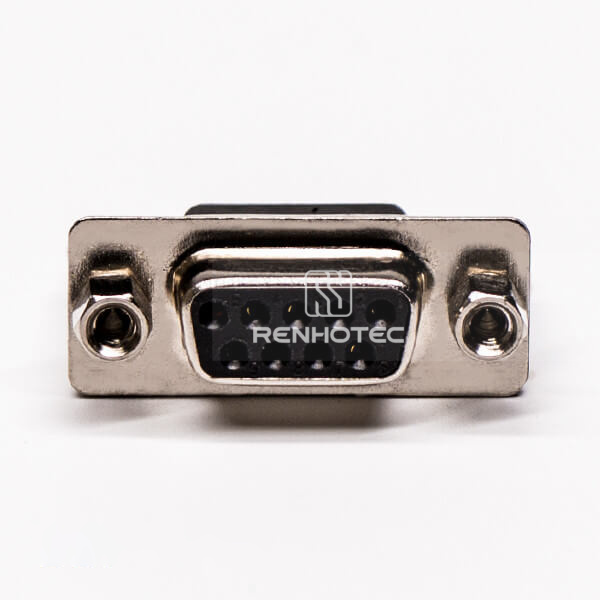

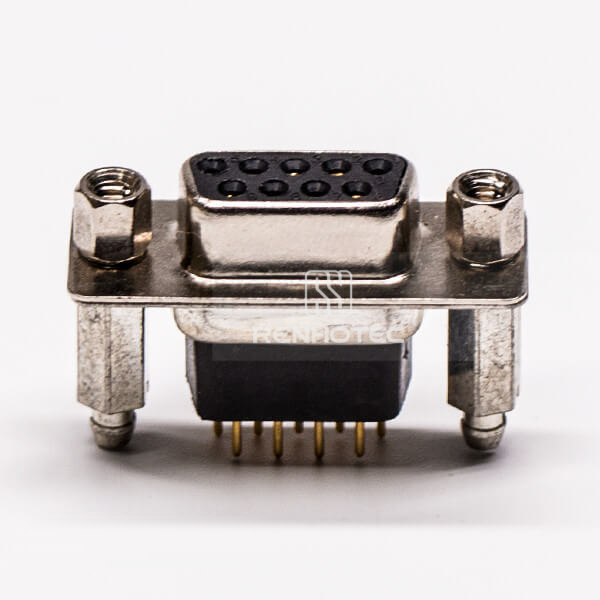

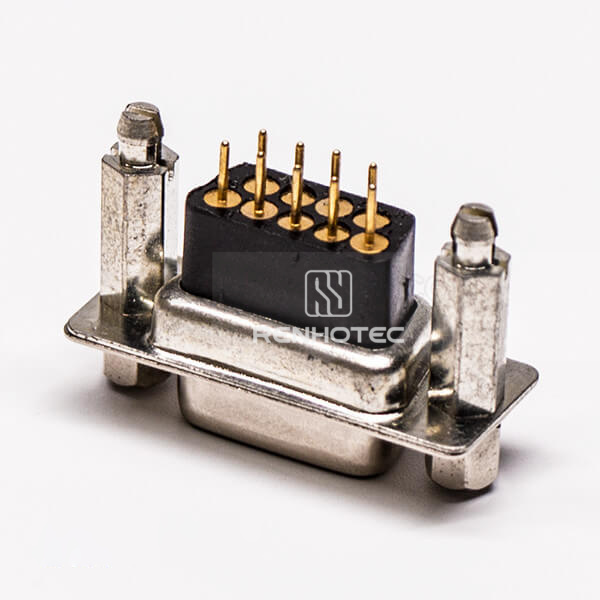

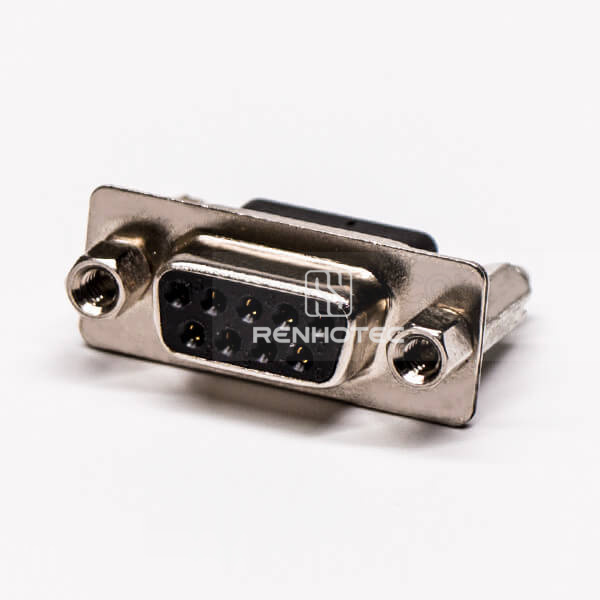

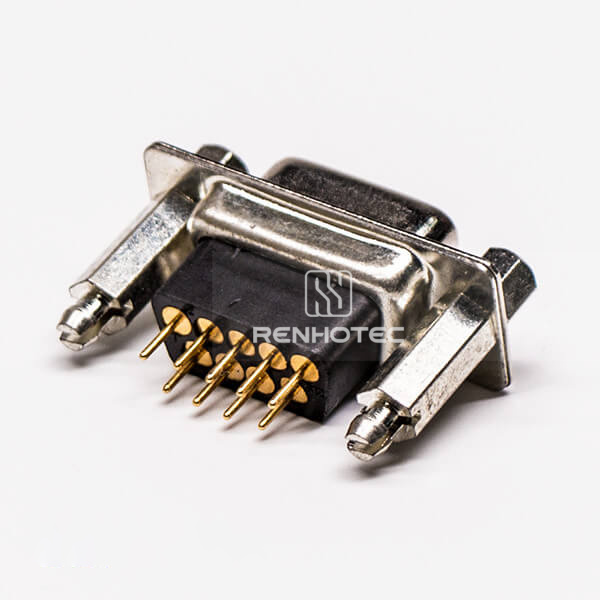

D-SUB 9 Pin Female Straight Harpoon Through Hole for PCB Mount Connector

Public Part No. RHT-681-1161

D-SUB 9 Pin Female Straight Harpoon Through Hole for PCB Mount Connector
Enlarge image
D-SUB 9 Pin Female Straight Harpoon Through Hole for PCB Mount ConnectorD-SUB 9 Pin Female Straight Harpoon Through Hole for PCB Mount ConnectorD-SUB 9 Pin Female Straight Harpoon Through Hole for PCB Mount ConnectorD-SUB 9 Pin Female Straight Harpoon Through Hole for PCB Mount ConnectorD-SUB 9 Pin Female Straight Harpoon Through Hole for PCB Mount Connector

Key specifications

Connector Type
D-SUB
Pin Count
9 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

9-pin female D-SUB connector with straight orientation and through-hole PCB mounting. It uses machined contacts.

Full Specifications

Electrical

Voltage Rating
300V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
5000MΩ
Contact Resistance
8.5mΩ max. DF: 5mΩ max

Mechanical

Connector Type
D-SUB
Pin Count
9 Pin
Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Contact construction
Machined contacts / Precision turned contacts

Environmental

Operating Temperature options
D: -67°F (-55°C) to +185°F (85°C), DF: -67°F (-55°C) to + 257°F (125°C)
