USB Connector

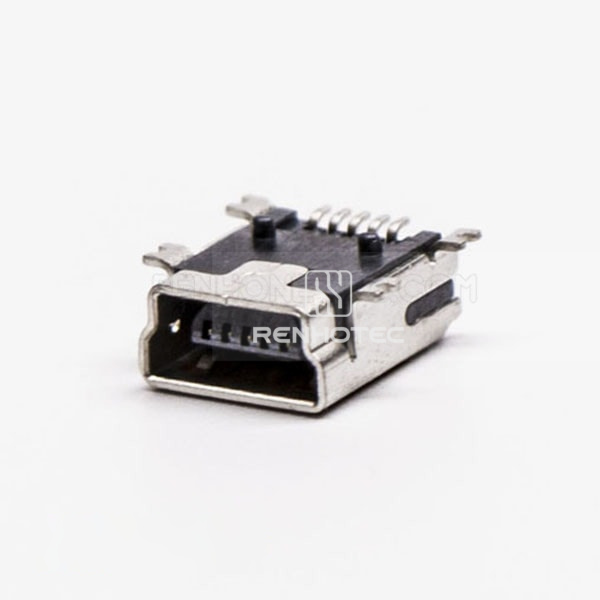

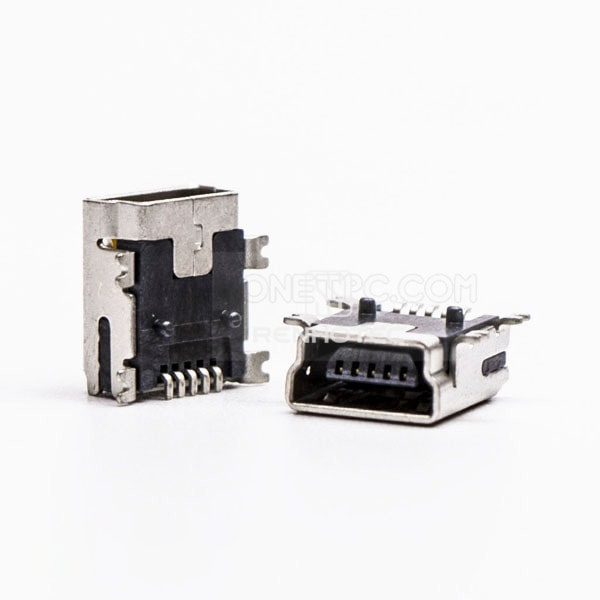

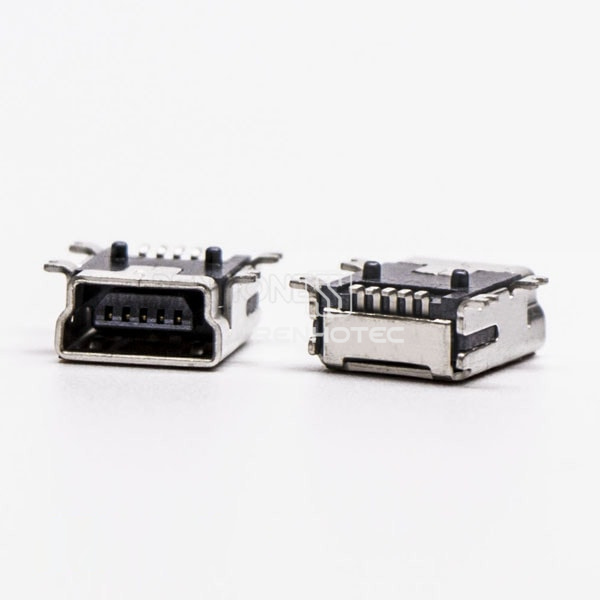

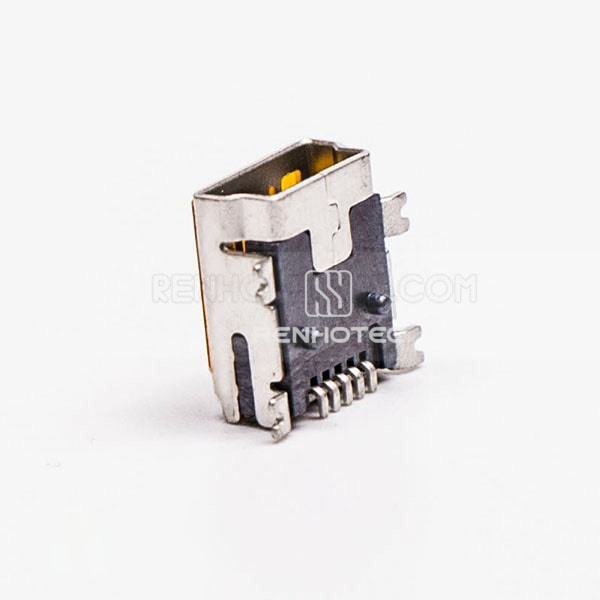

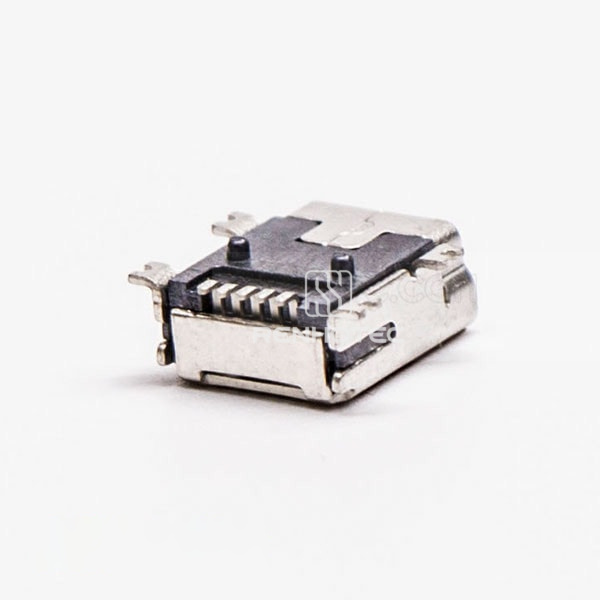

90 Degree Micro USB Female Panel Mount SMT Type B Connector

Part No.RHT-692-1258

USB Connector with 5 Pin, Female, Right Angle, Micro USB / Type B. Mounting: PCB Mount, SMT, Panel Mount.

  • Connector TypeType B / Micro USB
  • GenderFemale
  • OrientationRight Angle

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
1A max.
Voltage Rating
100V AC RMS
Contact Resistance
10 milliohms max
Insulation Resistance
1000M ΩMin
Dielectric Withstanding Voltage
500 V DC/1min

Connection

Connector Type
Type B / Micro USB

Mechanical

Pin Count
5 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
Panel Mount / PCB Mount / SMT
Shielding
Shielded
Durability
10,000 cycles
Mating force
35N max
Unmating Force
10N

Environmental

Operating Temperature
-55 to 85 °C

Before you specify

Selection guide

USB Connector with 5 Pin, Female, Right Angle, Micro USB / Type B. Mounting: PCB Mount, SMT, Panel Mount.

Shielding: Shielded.

RHT-692-1258
