D-SUB Connector

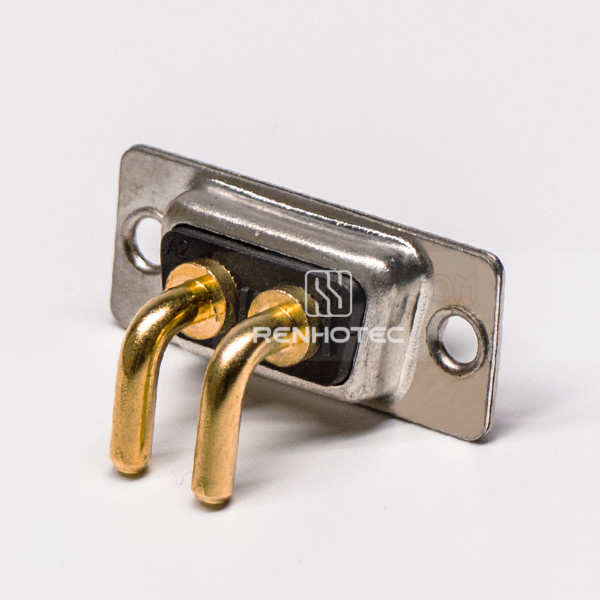

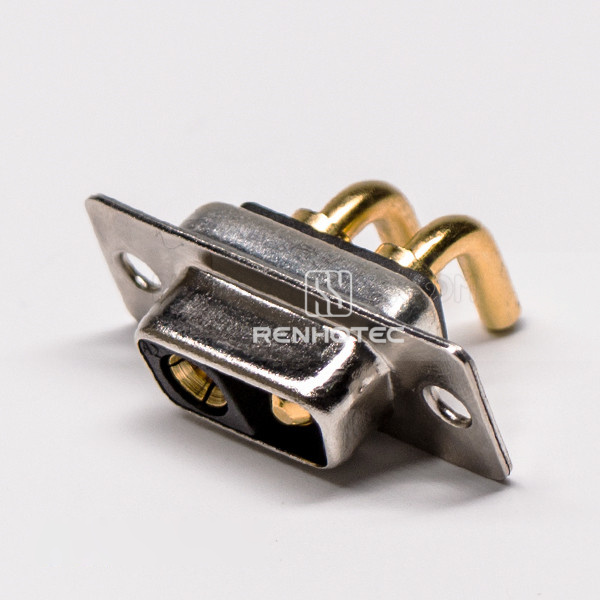

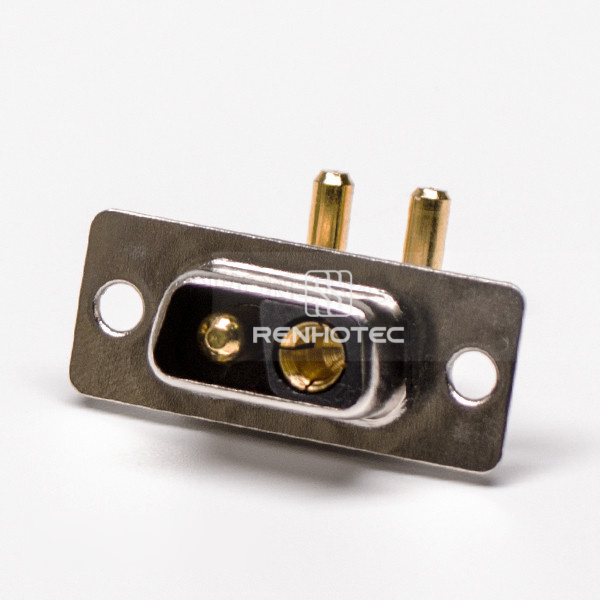

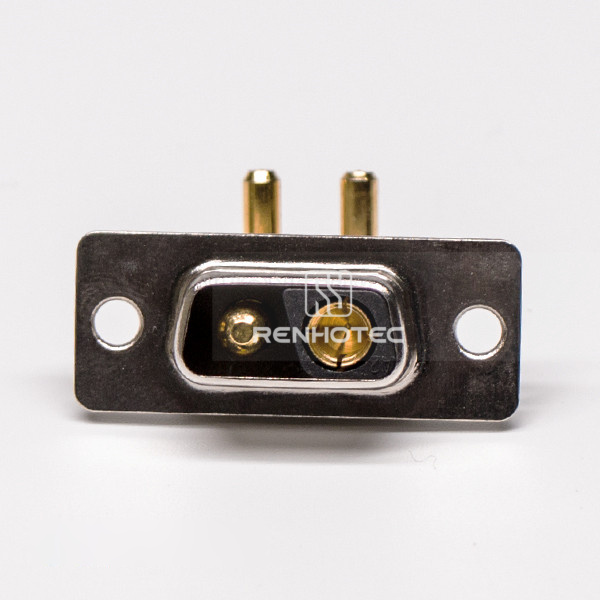

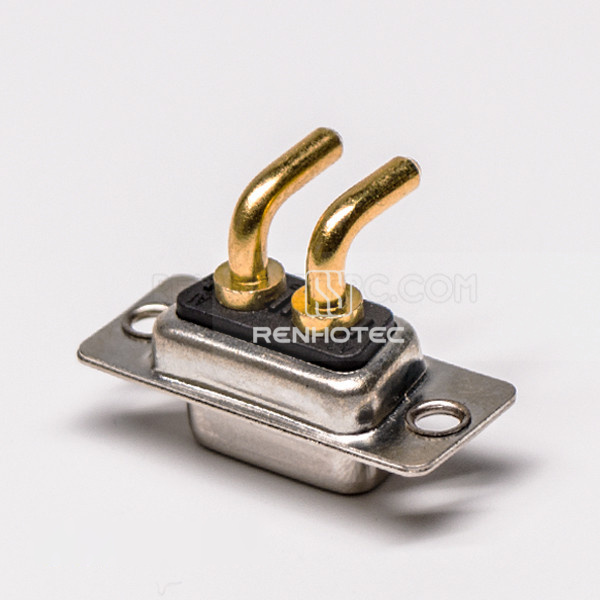

2V2 Right-Angle D-SUB Connector, Male/Female Combination

Public Part No. RHT-681-1224

2V2 Right-Angle D-SUB Connector, Male/Female Combination
Enlarge image
2V2 Right-Angle D-SUB Connector, Male/Female Combination2V2 Right-Angle D-SUB Connector, Male/Female Combination2V2 Right-Angle D-SUB Connector, Male/Female Combination2V2 Right-Angle D-SUB Connector, Male/Female Combination2V2 Right-Angle D-SUB Connector, Male/Female Combination

Key specifications

Connector Type
Power D-SUB
Gender
Female / Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type
Request QuoteFull specifications

Full Specifications

Electrical

Frequency range
0 -1 GHz
VSWR
1.4 (+0.04/GHz)
Characteristic Impedance
50 Ohms
Dielectric Withstanding Voltage
≥ 1000V R.M.S. at 50Hz
Insulation Resistance
≥ 5000 megaohms at 500 V D.C.
Contact Resistance
≤5 milliohms

Mechanical

Connector Type
Power D-SUB
Gender
Female / Male
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type
Contact configuration
2v2
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 155 °C

Connector requirement

Request a quote
