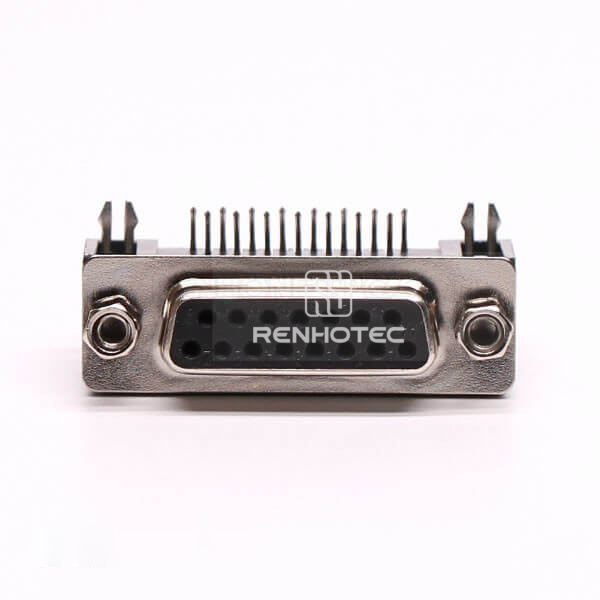

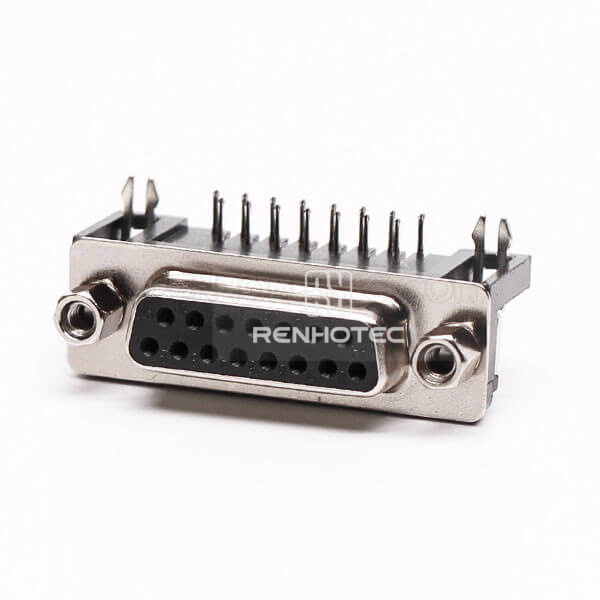

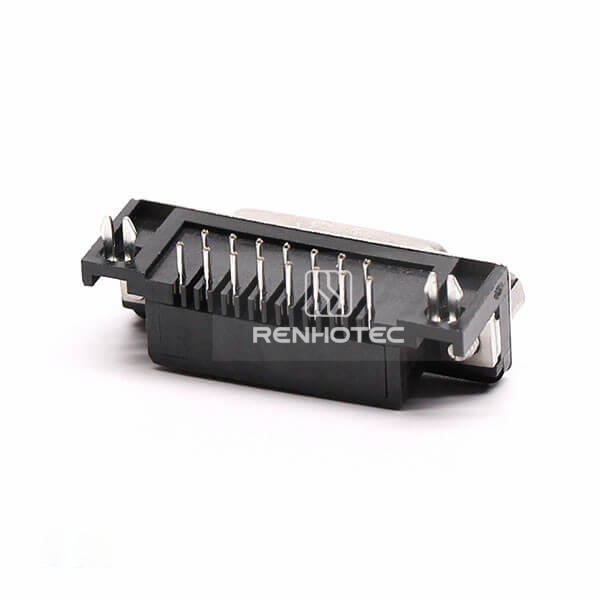

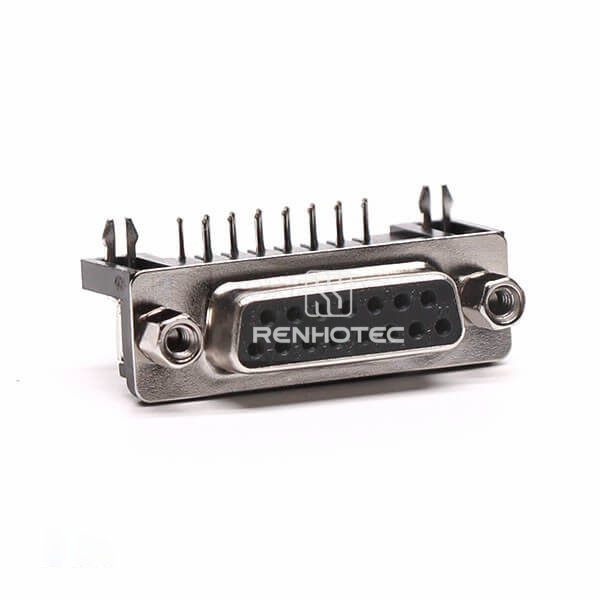

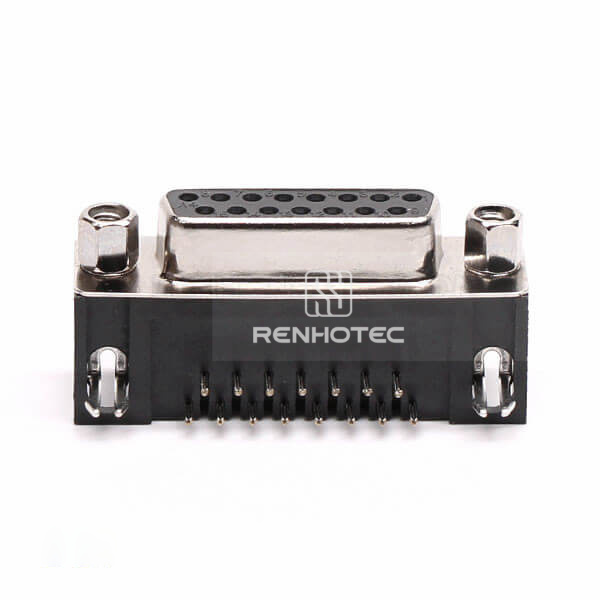

15 Pin Female Solder D-SUB Connector Right Angle Solder Type with Stamped Pin for PCB

Public Part No. RHT-681-1145

15 Pin Female Solder D-SUB Connector Right Angle Solder Type with Stamped Pin for PCB
Enlarge image
15 Pin Female Solder D-SUB Connector Right Angle Solder Type with Stamped Pin for PCB15 Pin Female Solder D-SUB Connector Right Angle Solder Type with Stamped Pin for PCB15 Pin Female Solder D-SUB Connector Right Angle Solder Type with Stamped Pin for PCB15 Pin Female Solder D-SUB Connector Right Angle Solder Type with Stamped Pin for PCB15 Pin Female Solder D-SUB Connector Right Angle Solder Type with Stamped Pin for PCB

Key specifications

Connector Type
D-SUB
Pin Count
15 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type / Stamped Pin
Request QuoteFull specifications

Overview

15-pin female D-SUB connector with right-angle orientation, through-hole PCB mounting and solder termination. It uses stamped contacts. Colour: black.
