D-SUB Connector

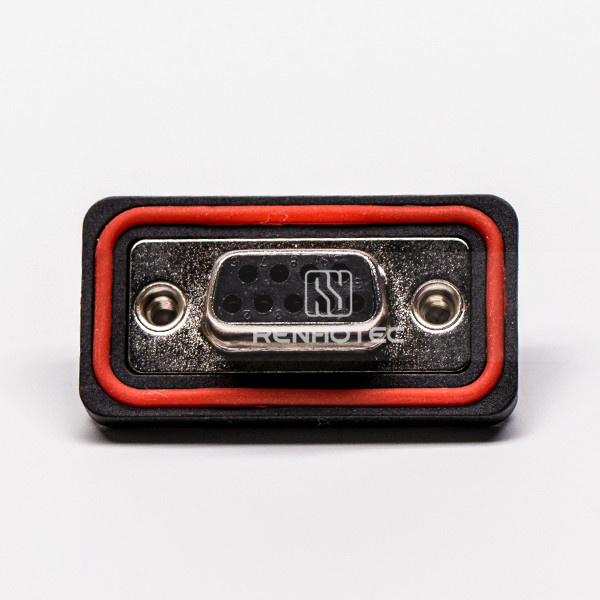

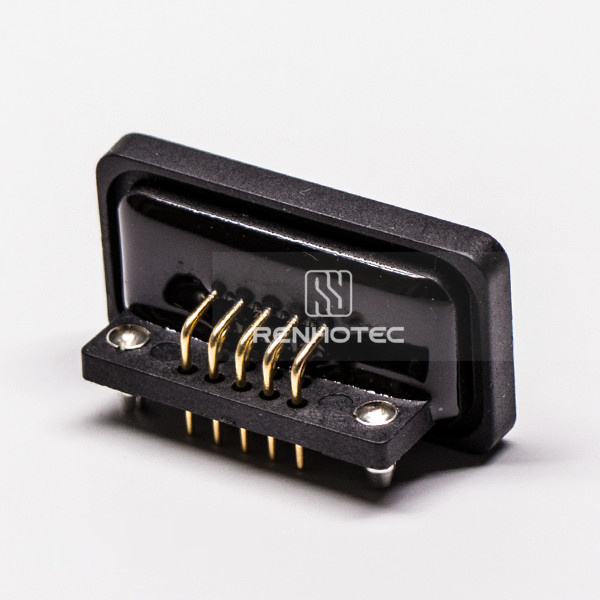

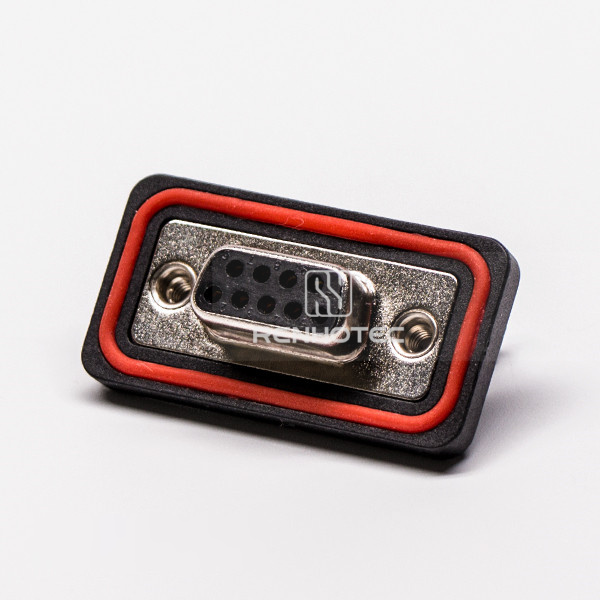

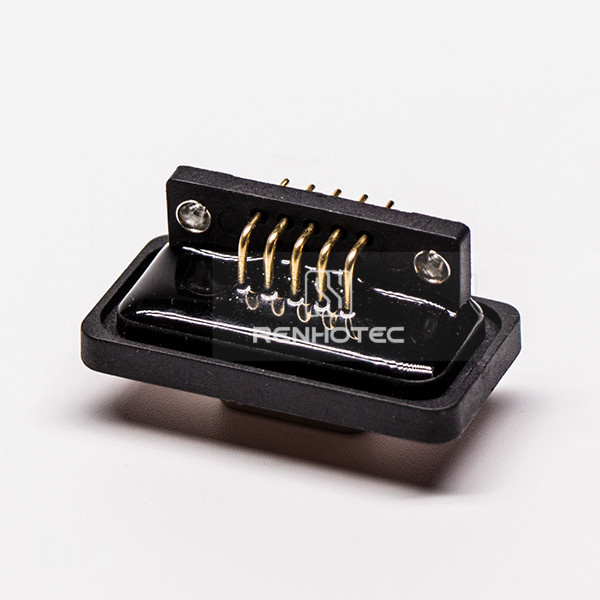

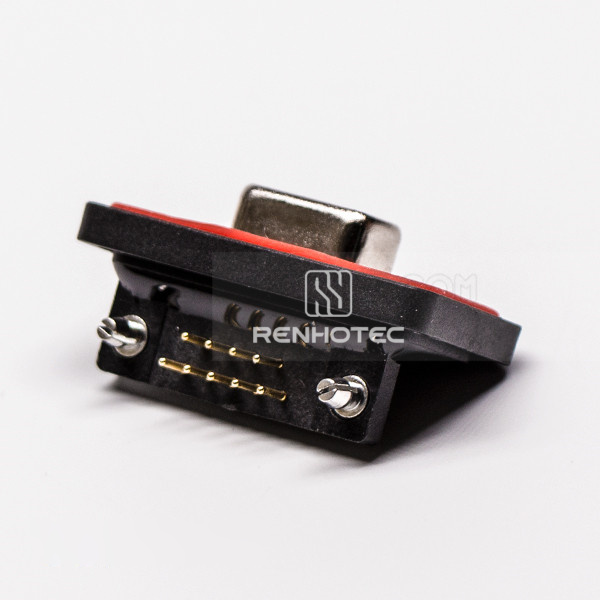

9 Pin D-SUB Waterproof Connector 90° Female Through Hole for PCB Mount

Public Part No. RHT-681-1184

9 Pin D-SUB Waterproof Connector 90° Female Through Hole for PCB Mount
Enlarge image
9 Pin D-SUB Waterproof Connector 90° Female Through Hole for PCB Mount9 Pin D-SUB Waterproof Connector 90° Female Through Hole for PCB Mount9 Pin D-SUB Waterproof Connector 90° Female Through Hole for PCB Mount9 Pin D-SUB Waterproof Connector 90° Female Through Hole for PCB Mount9 Pin D-SUB Waterproof Connector 90° Female Through Hole for PCB Mount

Key specifications

Connector Type
D-SUB
Pin Count
9 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Request QuoteFull specifications

Overview

9-pin female D-SUB connector with right-angle orientation and through-hole PCB mounting. It uses machined contacts. An interfacial seal is included.

Full Specifications

Electrical

Current Rating
7.5A
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V
Working voltage signal
125 V
Working Voltage
1000V

Mechanical

Connector Type
D-SUB
Pin Count
9 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Contact construction
Machined contacts
Seal construction
Interfacial seal
Extraction force
30N
Insertion force
30N

Environmental

Waterproof Rating
IP67
Operating Temperature
-25 to 125 °C
