D-SUB Connector

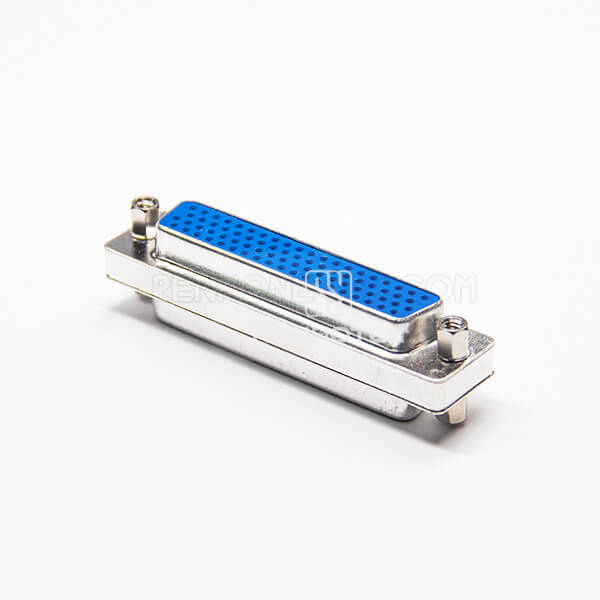

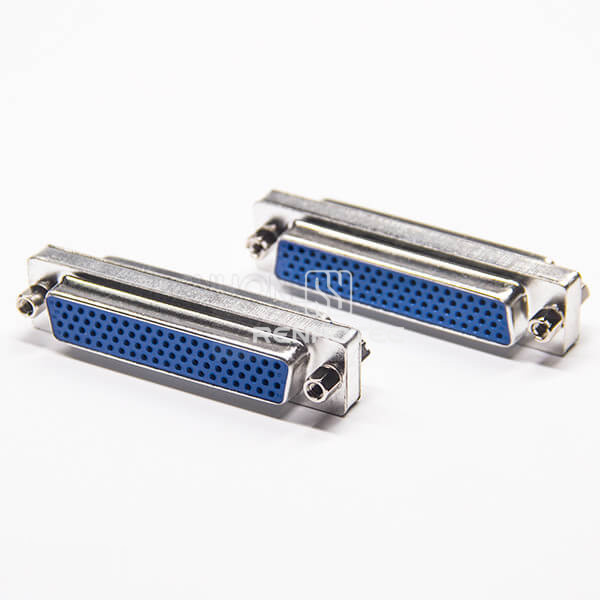

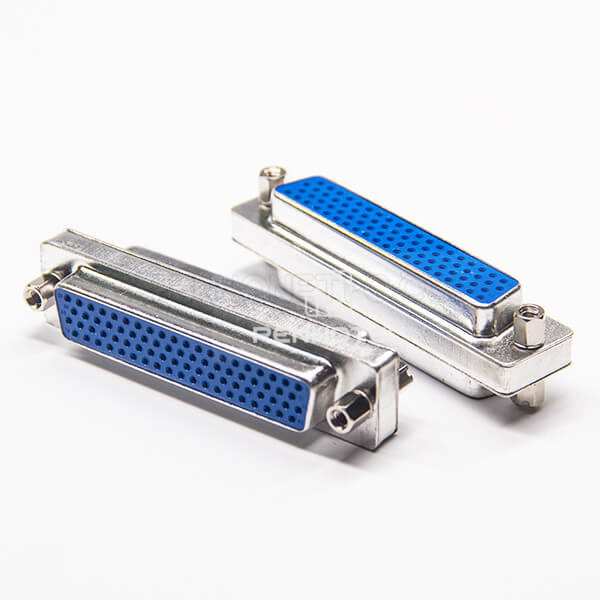

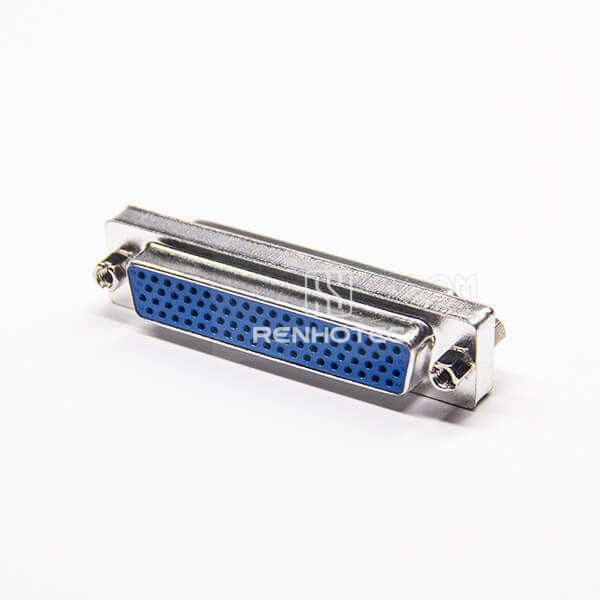

78Pin D-SUB Connector Female To Female High Density D-SUB Straight Metal

Part No.RHT-681-1305
78-pin female-to-female high-density D-SUB adapter with a straight configuration.
  • Connector TypeD-SUB Adapter&Gender Changers
  • Pin Count78 Pin
  • GenderFemale

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Connection

Connector Type
D-SUB Adapter&Gender Changers

Mechanical

Pin Count
78 Pin
Gender
Female
Orientation
Straight
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Material
Metal
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Before you specify

Selection guide

78-pin female-to-female high-density D-SUB adapter with a straight configuration.

RHT-681-1305
