Terminal Blocks

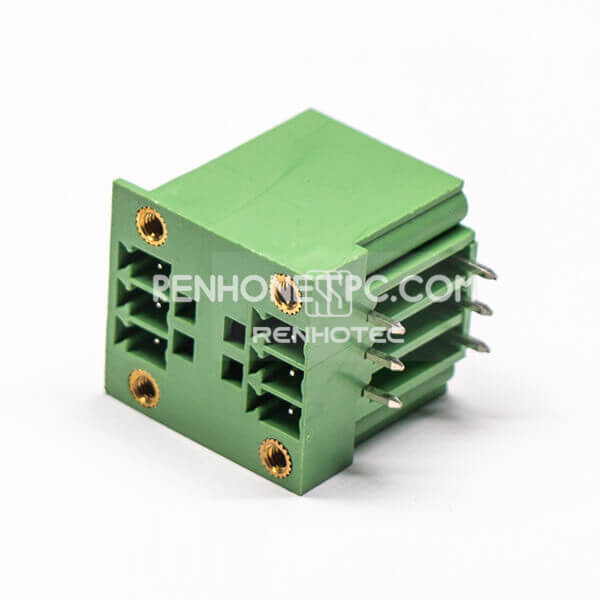

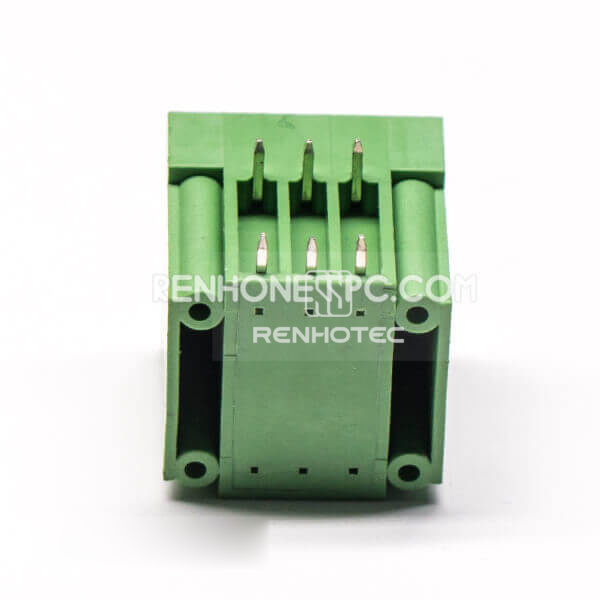

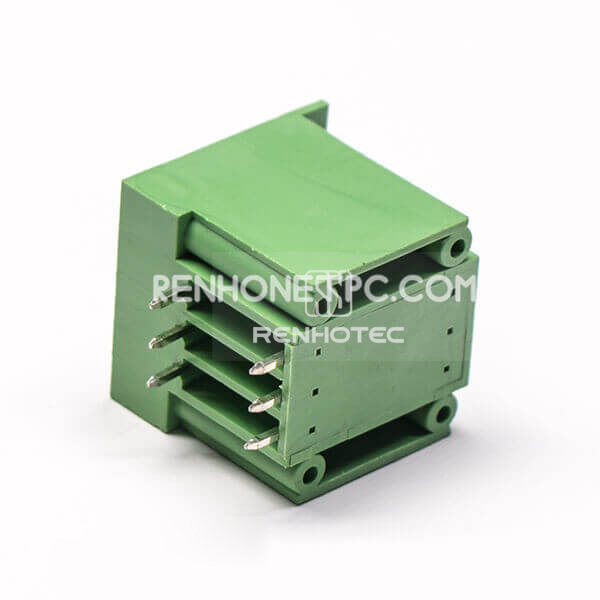

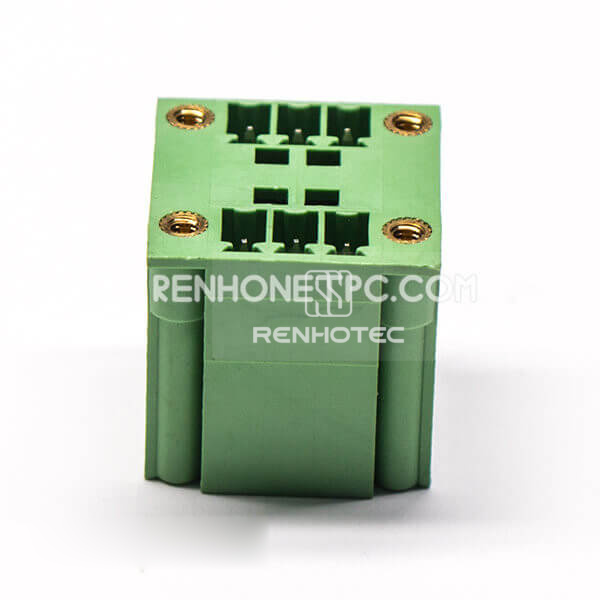

6 pin Terminal Block Multipole Plasti Brass ICE Plug

Public Part No. RHT-665-2504

6 pin Terminal Block Multipole Plasti Brass ICE Plug
Enlarge image
6 pin Terminal Block Multipole Plasti Brass ICE Plug6 pin Terminal Block Multipole Plasti Brass ICE Plug6 pin Terminal Block Multipole Plasti Brass ICE Plug6 pin Terminal Block Multipole Plasti Brass ICE Plug6 pin Terminal Block Multipole Plasti Brass ICE Plug

Key specifications

Pin Count
6 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

6-pin male green pluggable terminal block with right-angle orientation, through-hole mounting. Pitch options listed: 3.0mm/3.81mm. Confirm the required option before matching the footprint or mating part. Rated current 10 A; rated voltage 300 V. Wire range: 14-22 AWG.

Full Specifications

Electrical

Current Rating
10A
Voltage Rating
300V
Rate current options
10A 15A 20A 30A
Withstanding voltage
AC2000V/1Min
Insulation resistance
5000MΩ/1000V

Mechanical

Pin Count
6 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
Through Hole
Pitch options
3.0mm/3.81mm
Contact-count options
2P-30P
Wire range
14-22AWG

Material

Color
Green

Environmental

Operating Temperature
-40 to 105 °C
MAX soldering
+250ºC for 5 sec
