Terminal Blocks

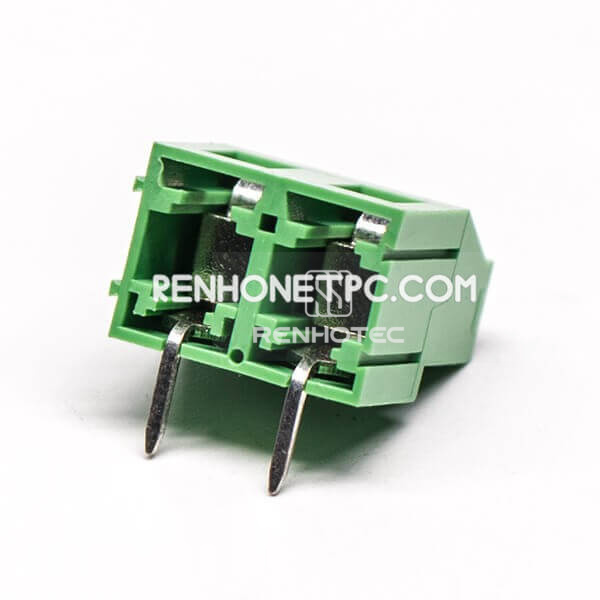

PCB Screw Terminal Connectors 2pin Right Angle Green Through Hole

Part No.RHT-665-1521
2-pin green screw terminal block with right-angle orientation, through-hole mounting. Pitch options: 5.00/5.08mm. Rated current 15 A; rated voltage 300 V.
  • Pin Count2 Pin
  • OrientationRight Angle
  • Mounting TypeThrough Hole

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
15A
Voltage Rating
300V

Mechanical

Pin Count
2 Pin
Orientation
Right Angle
Mounting Type
Through Hole
Pitch options
5.00/5.08mm

Material

Color
Green

Before you specify

Selection guide

2-pin green screw terminal block with right-angle orientation, through-hole mounting. Pitch options listed: 5.00/5.08mm. Confirm the required option before matching the footprint or mating part. Rated current 15 A; rated voltage 300 V.

RHT-665-1521
