Terminal Blocks

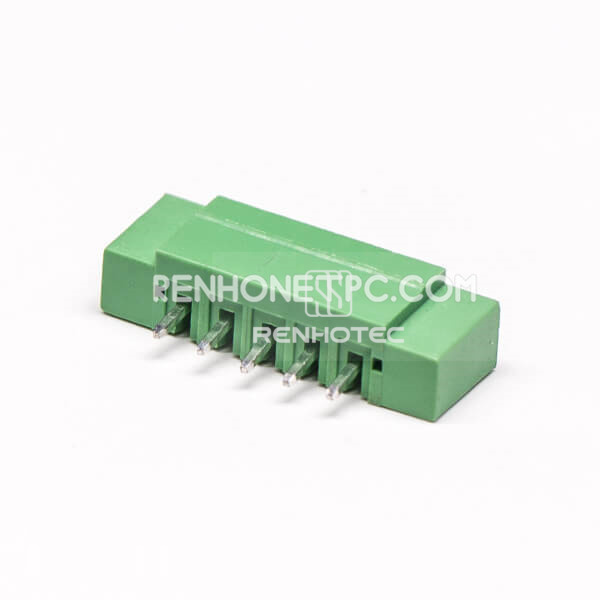

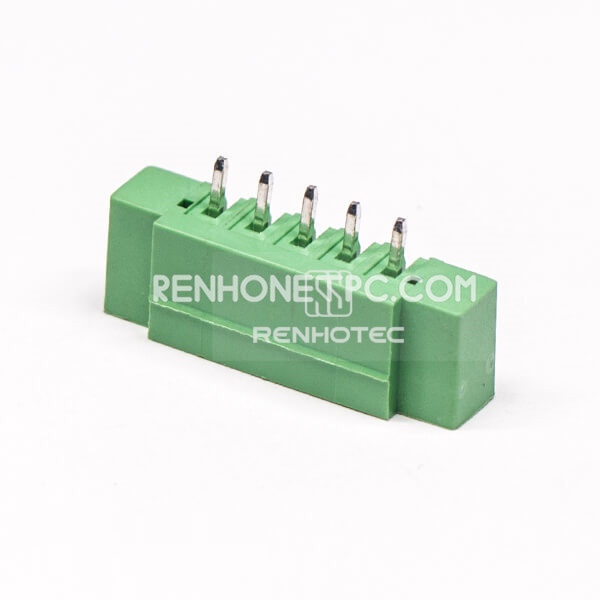

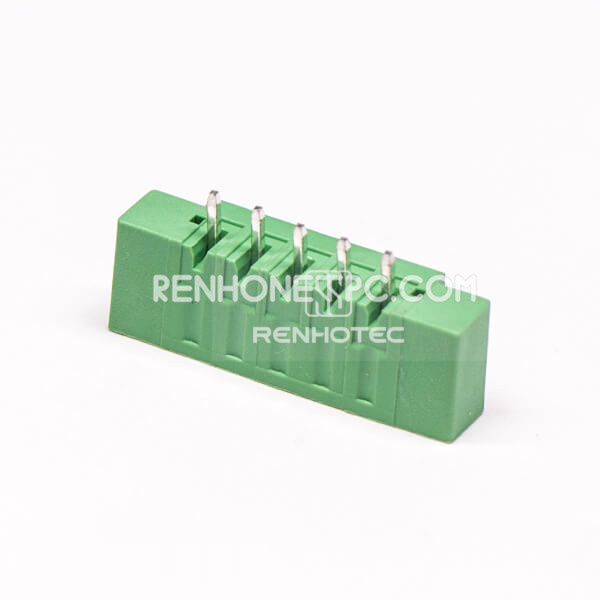

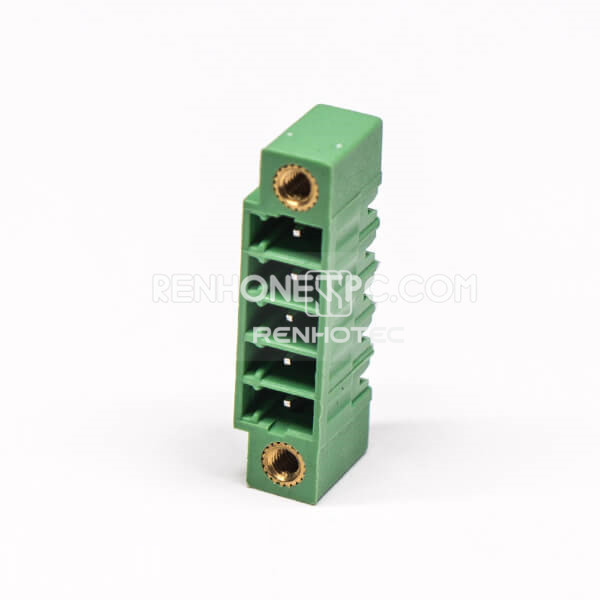

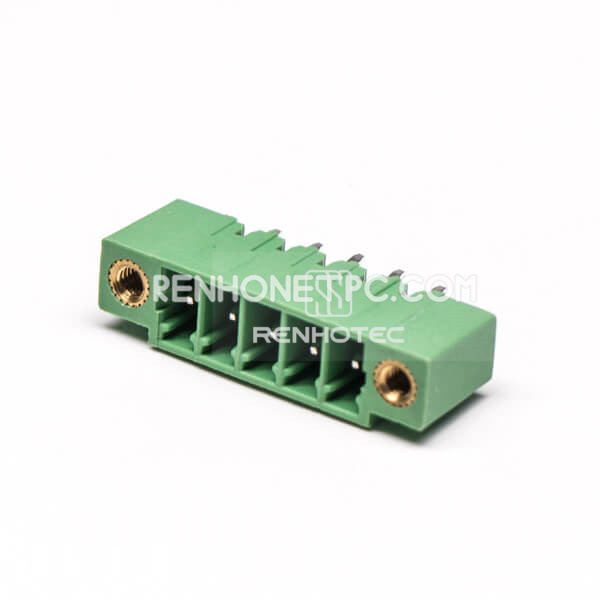

5 pin Terminal Block Straight Through Hole Green Pluggable Connector

Public Part No. RHT-665-2541

5 pin Terminal Block Straight Through Hole Green Pluggable Connector
Enlarge image
5 pin Terminal Block Straight Through Hole Green Pluggable Connector5 pin Terminal Block Straight Through Hole Green Pluggable Connector5 pin Terminal Block Straight Through Hole Green Pluggable Connector5 pin Terminal Block Straight Through Hole Green Pluggable Connector5 pin Terminal Block Straight Through Hole Green Pluggable Connector

Key specifications

Pin Count
5 Pin
Orientation
Straight
Mounting Type
Through Hole
Request QuoteFull specifications

Overview

5-pin green pluggable terminal block with straight orientation, through-hole mounting. Pitch options listed: 3.50/3.81mm. Confirm the required option before matching the footprint or mating part. Rated current 10 A; rated voltage 300 V.

Full Specifications

Electrical

Current Rating
10A
Voltage Rating
300V

Mechanical

Pin Count
5 Pin
Orientation
Straight
Mounting Type
Through Hole
Pitch options
3.50/3.81mm

Material

Color
Green
