Terminal Blocks

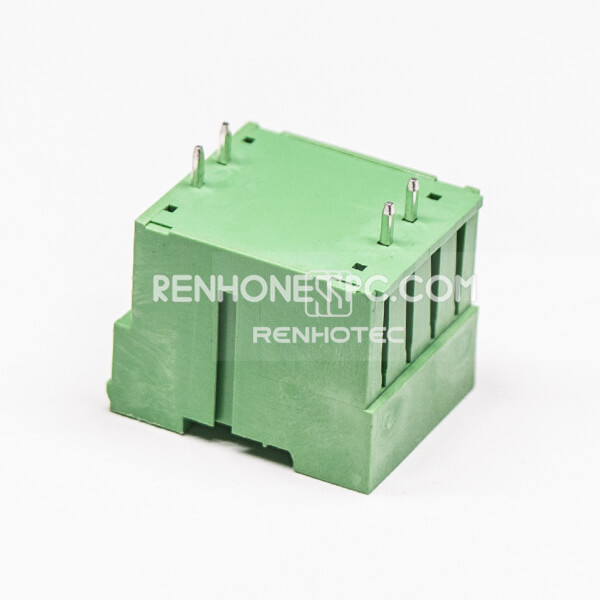

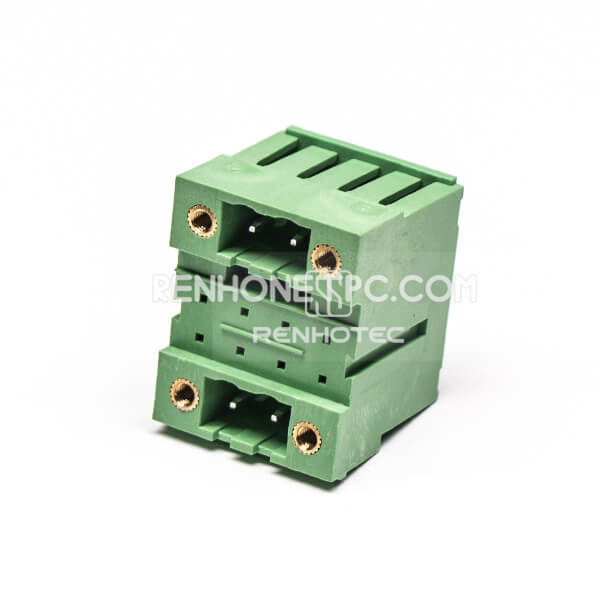

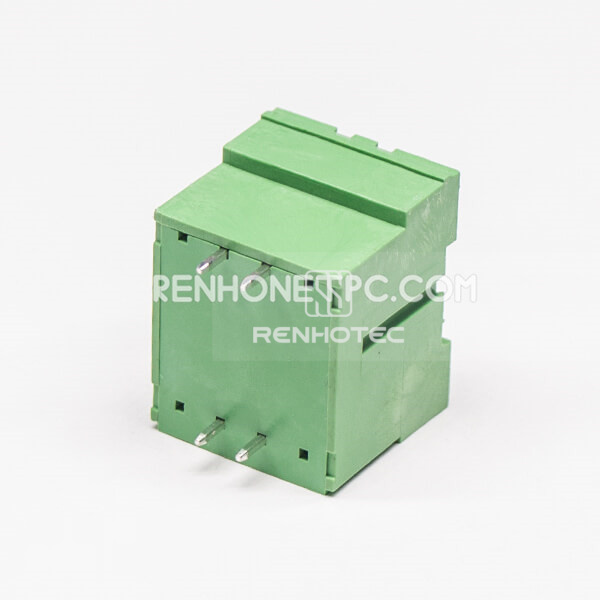

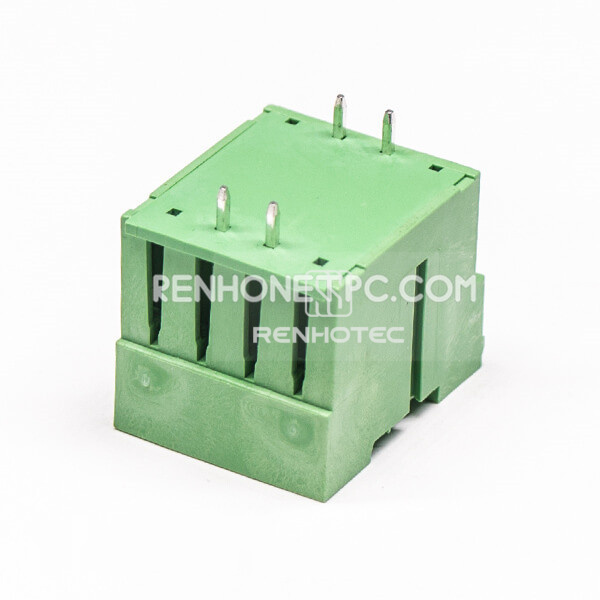

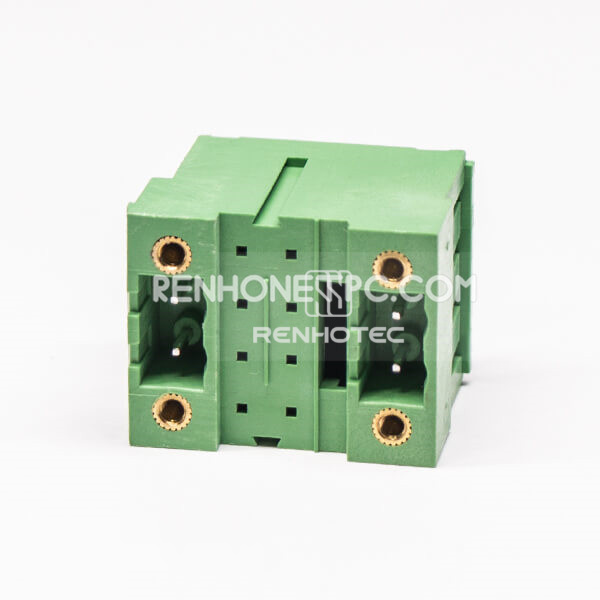

4 pin Terminal Block 4 Screw Holes Square Pluggable Connector for Panel Mount

Public Part No. RHT-665-2542

4 pin Terminal Block 4 Screw Holes Square Pluggable Connector for Panel Mount
Enlarge image
4 pin Terminal Block 4 Screw Holes Square Pluggable Connector for Panel Mount4 pin Terminal Block 4 Screw Holes Square Pluggable Connector for Panel Mount4 pin Terminal Block 4 Screw Holes Square Pluggable Connector for Panel Mount4 pin Terminal Block 4 Screw Holes Square Pluggable Connector for Panel Mount4 pin Terminal Block 4 Screw Holes Square Pluggable Connector for Panel Mount

Key specifications

Pin Count
4 Pin
Orientation
Straight
Mounting Type
Panel Mount / Through Hole
Request QuoteFull specifications

Overview

4-pin green pluggable terminal block with straight orientation, through-hole and panel mounting. Pitch options listed: 3.50/3.81mm. Confirm the required option before matching the footprint or mating part. 4 screw holes. Rated current 10 A; rated voltage 300 V.

Full Specifications

Electrical

Current Rating
10A
Voltage Rating
300V

Mechanical

Pin Count
4 Pin
Orientation
Straight
Mounting Type
Panel Mount / Through Hole
Pitch options
3.50/3.81mm

Material

Color
Green
