D-SUB Connector

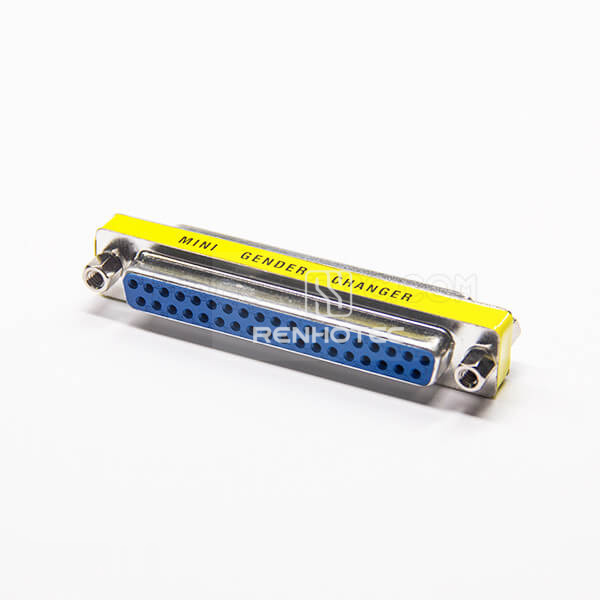

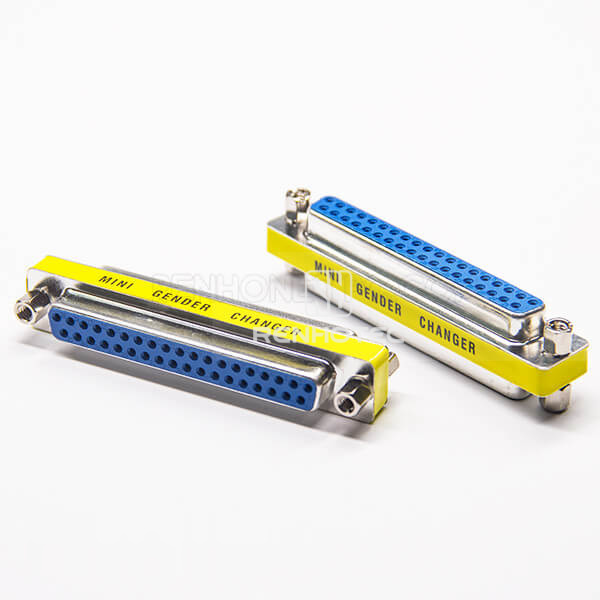

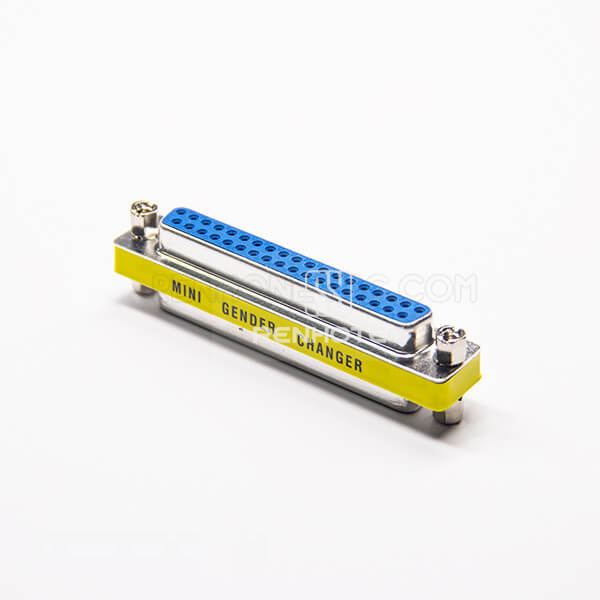

37 Pin D-SUB Gender Changer To Male Straight Standard D-SUB Metal

Part No.RHT-681-1298
37-pin male-to-female D-SUB adapter with a straight configuration.
  • Connector TypeD-SUB Adapter&Gender Changers
  • Pin Count37 Pin
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Connection

Connector Type
D-SUB Adapter&Gender Changers

Mechanical

Pin Count
37 Pin
Orientation
Straight
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Gender at connector ends
Female / Male

Material

Material
Metal / metal
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Before you specify

Selection guide

37-pin male-to-female D-SUB adapter with a straight configuration.

RHT-681-1298
