Terminal Blocks

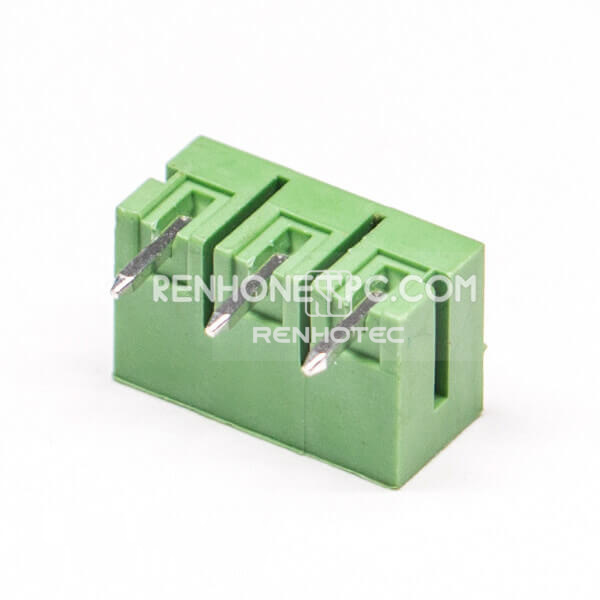

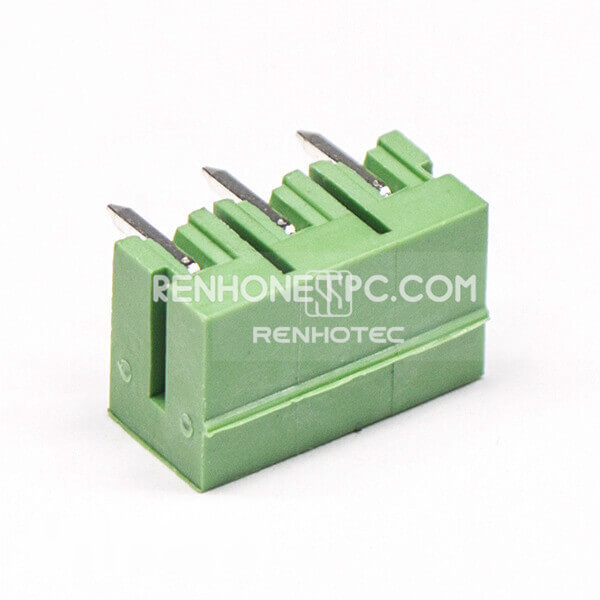

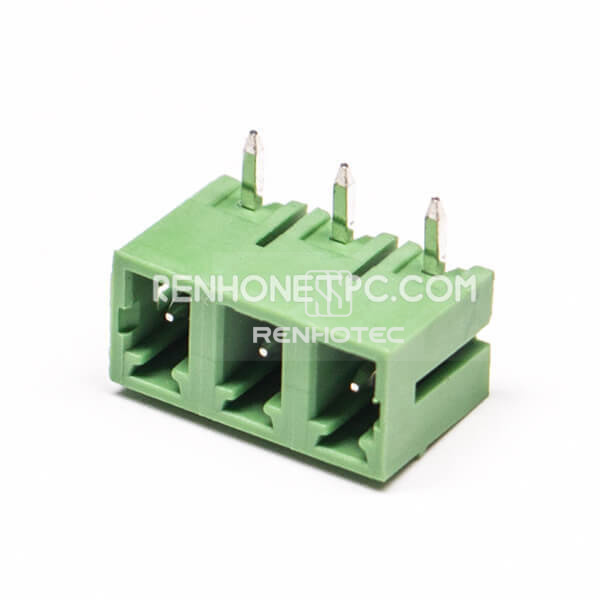

3 pin Terminal Block 90 Degree PCB Connector Plastic Green

Part No.RHT-665-2516
3-pin green pluggable terminal block with right-angle orientation, 5.08 mm pitch, through-hole mounting. Solder termination. Rated current 10 A; rated voltage 300 V.
  • Pin Count3 Pin
  • OrientationRight Angle
  • Mounting TypeThrough Hole

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
10A
Voltage Rating
300V

Mechanical

Pin Count
3 Pin
Orientation
Right Angle
Mounting Type
Through Hole
Termination Type
Solder Type
Pitch
5.08 mm

Material

Color
Green

Before you specify

Selection guide

3-pin green pluggable terminal block with right-angle orientation, 5.08 mm pitch, through-hole mounting. Solder termination. Rated current 10 A; rated voltage 300 V.

RHT-665-2516
