D-SUB Connector

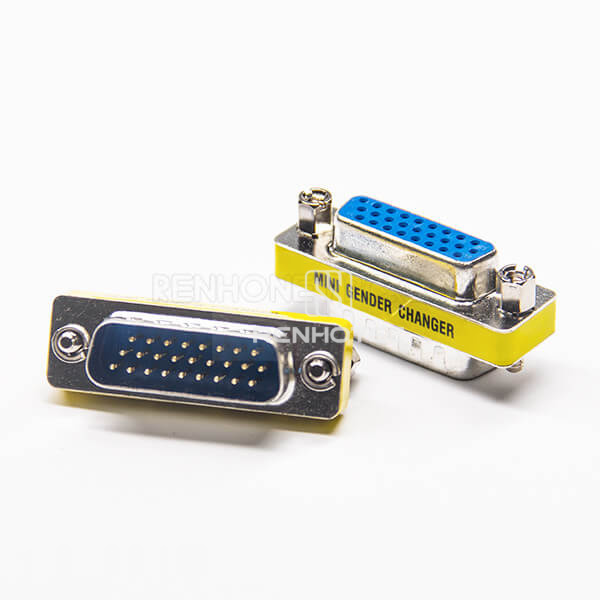

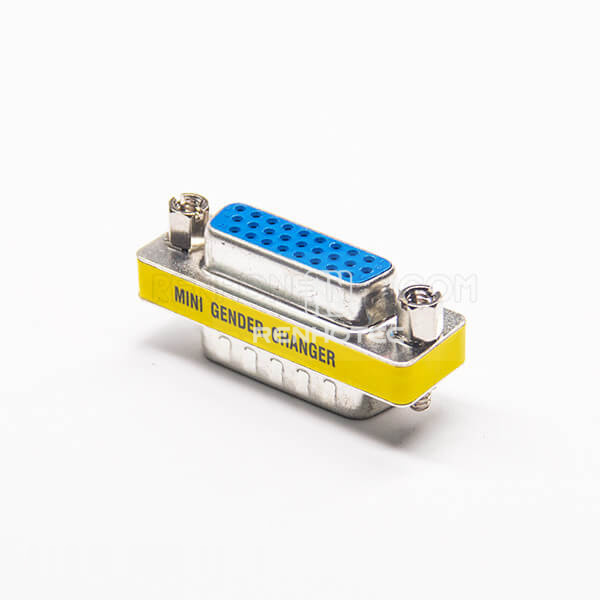

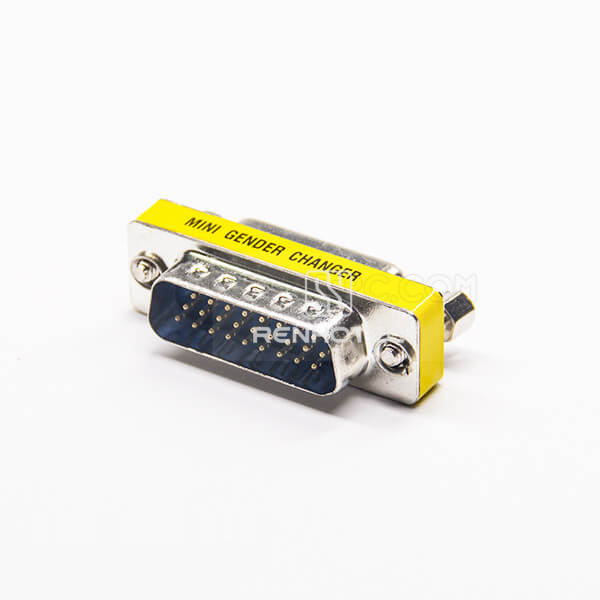

26 Pin Adapter Straight Metal High Density D-SUB Male To Female

Public Part No. RHT-681-1294

26 Pin Adapter Straight Metal High Density D-SUB Male To Female
Enlarge image
26 Pin Adapter Straight Metal High Density D-SUB Male To Female26 Pin Adapter Straight Metal High Density D-SUB Male To Female26 Pin Adapter Straight Metal High Density D-SUB Male To Female

Key specifications

Connector Type
D-SUB Adapter&Gender Changers
Pin Count
26 Pin
Orientation
Straight
Request QuoteFull specifications

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB Adapter&Gender Changers
Pin Count
26 Pin
Orientation
Straight
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Gender at connector ends
Female / Male

Material

Material
Metal / metal
Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
