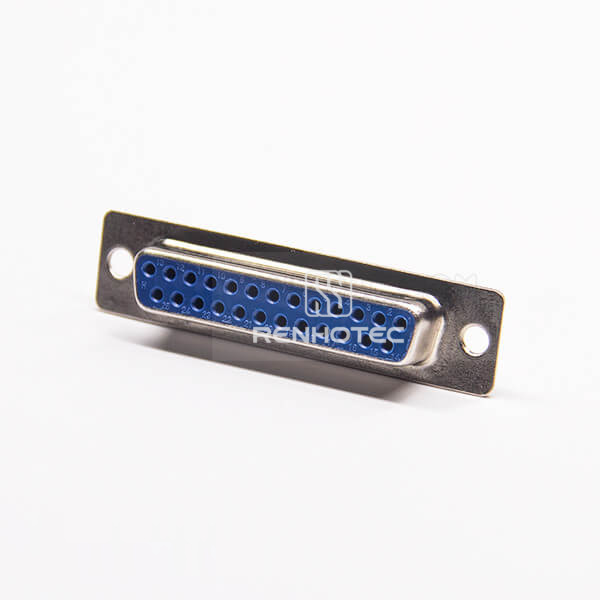

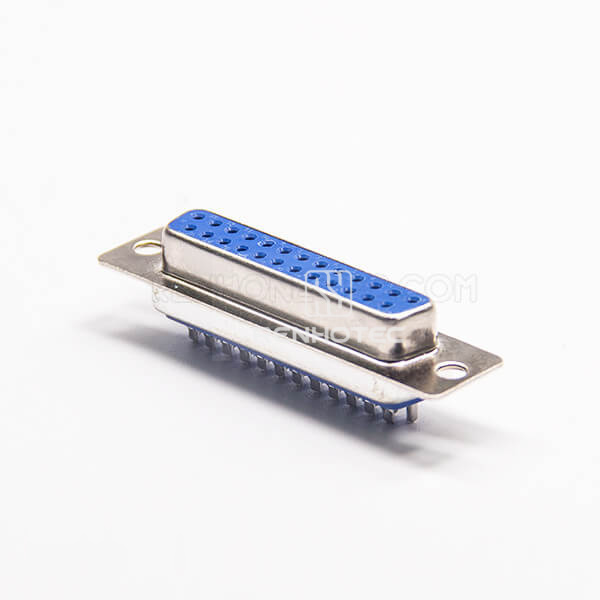

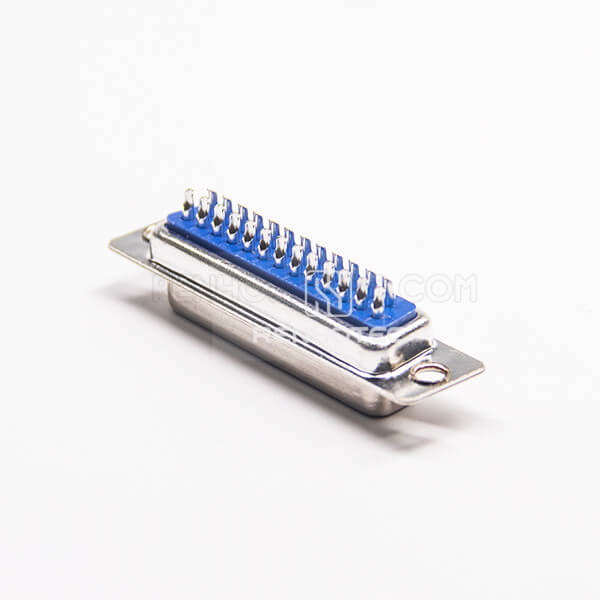

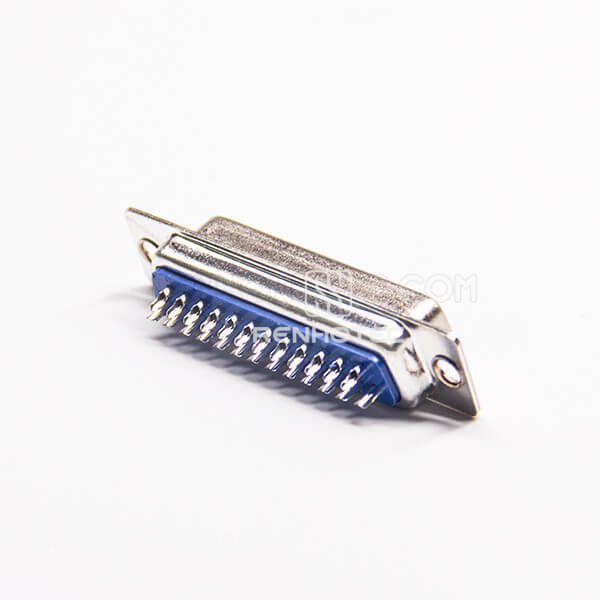

25 Pin D-SUB Connector Receptacle 2 Rows Single 180°Machined Silver Solder Cup Shell Panel Mount

Public Part No. RHT-681-1292

25 Pin D-SUB Connector Receptacle 2 Rows Single 180°Machined Silver Solder Cup Shell Panel Mount
Enlarge image
25 Pin D-SUB Connector Receptacle 2 Rows Single 180°Machined Silver Solder Cup Shell Panel Mount25 Pin D-SUB Connector Receptacle 2 Rows Single 180°Machined Silver Solder Cup Shell Panel Mount25 Pin D-SUB Connector Receptacle 2 Rows Single 180°Machined Silver Solder Cup Shell Panel Mount25 Pin D-SUB Connector Receptacle 2 Rows Single 180°Machined Silver Solder Cup Shell Panel Mount

Key specifications

Connector Type
D-SUB Connector
Pin Count
25 Pin
Gender
Female
Orientation
Straight
Mounting Type
Panel Mount
Termination Type
Solder Type
Request QuoteFull specifications

Overview

25-pin female D-SUB connector with straight orientation, panel mounting and solder termination. It uses machined contacts.

Full Specifications

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Mechanical

Connector Type
D-SUB Connector
Pin Count
25 Pin
Gender
Female
Orientation
Straight
Mounting Type
Panel Mount
Termination Type
Solder Type
Number of Rows
Dual Row
Contact construction
Machined contacts
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.

Material

Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C
