D-SUB Connector

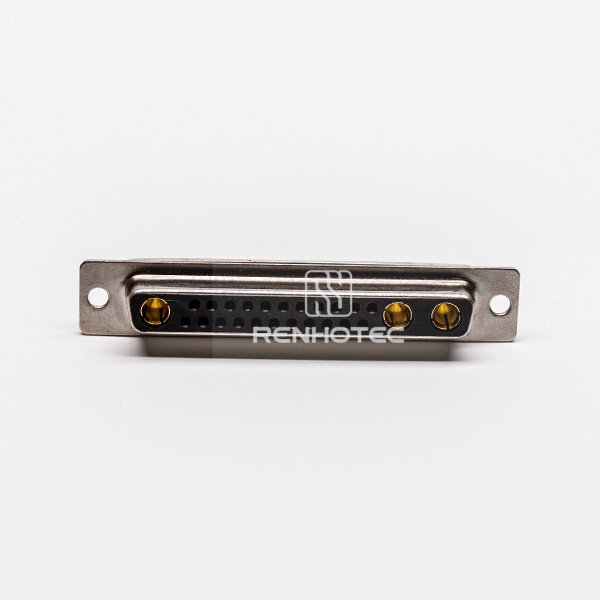

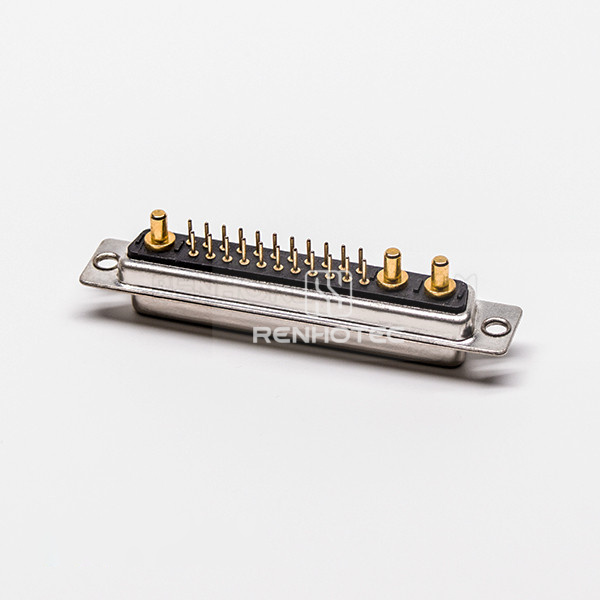

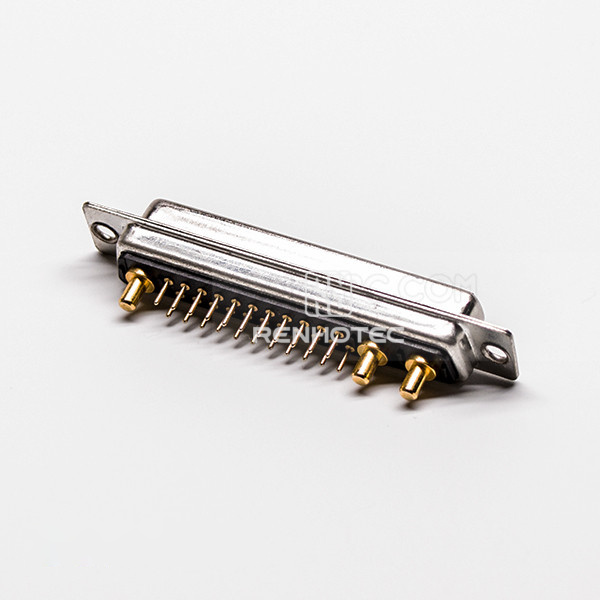

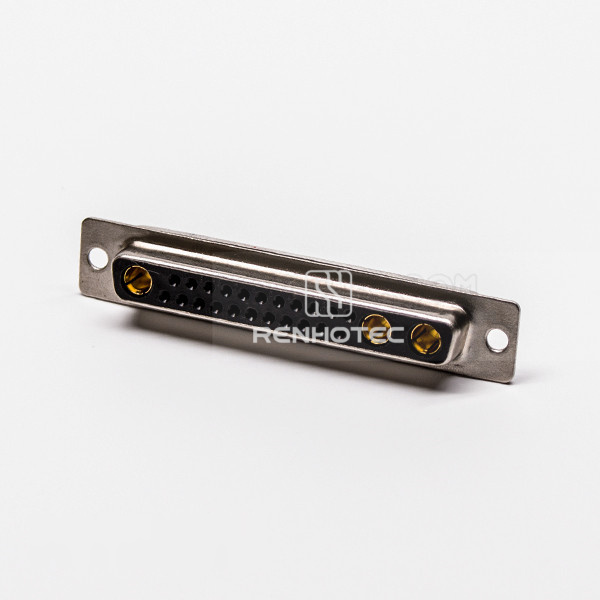

25 Pin D-SUB Connector Female 25W3 Through Hole 180° Staking Type For PCB Mount

Public Part No. RHT-681-1221

25 Pin D-SUB Connector Female 25W3 Through Hole 180° Staking Type For PCB Mount
Enlarge image
25 Pin D-SUB Connector Female 25W3 Through Hole 180° Staking Type For PCB Mount25 Pin D-SUB Connector Female 25W3 Through Hole 180° Staking Type For PCB Mount25 Pin D-SUB Connector Female 25W3 Through Hole 180° Staking Type For PCB Mount25 Pin D-SUB Connector Female 25W3 Through Hole 180° Staking Type For PCB Mount

Key specifications

Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Request QuoteFull specifications

Overview

25W3 female D-SUB connector with straight orientation and through-hole PCB mounting. Termination: staking type.

Full Specifications

Electrical

Frequency range
0 -1 GHz
VSWR
1.4 (+0.04/GHz)
Characteristic Impedance
50 Ohms
Dielectric Withstanding Voltage
≥ 1000V R.M.S. at 50Hz
Insulation Resistance
≥ 5000 megaohms at 500 V D.C.
Contact Resistance
≤5 milliohms

Mechanical

Gender
Female
Orientation
Straight
Mounting Type
PCB Mount / Through Hole
Termination Type
Staking Type
Contact configuration
25w3
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 155 °C
