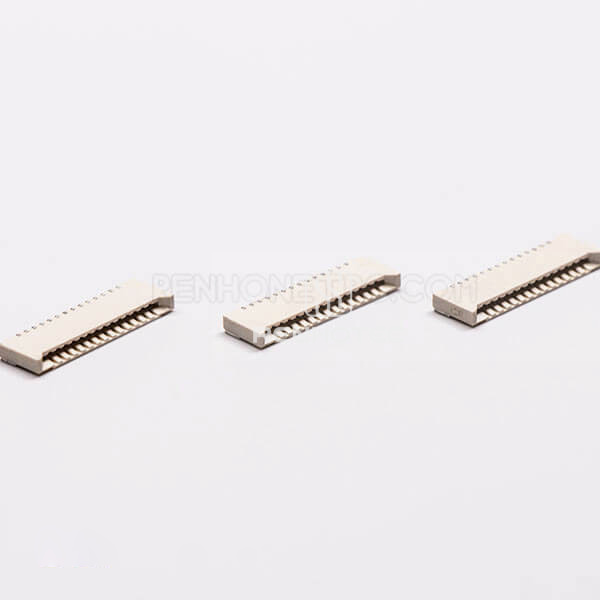

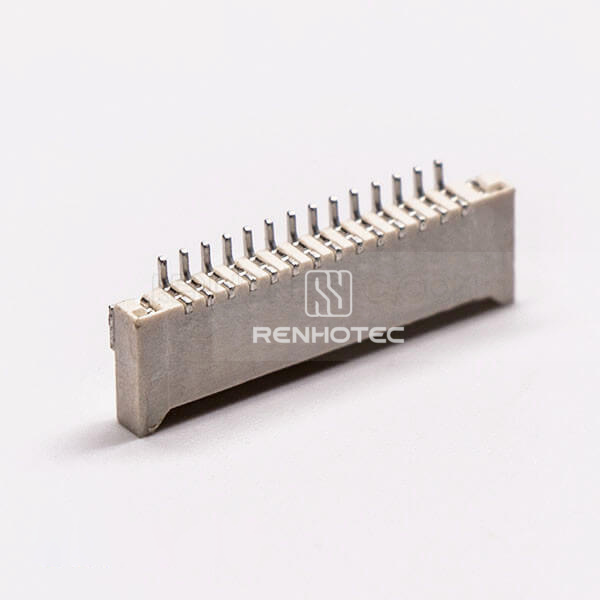

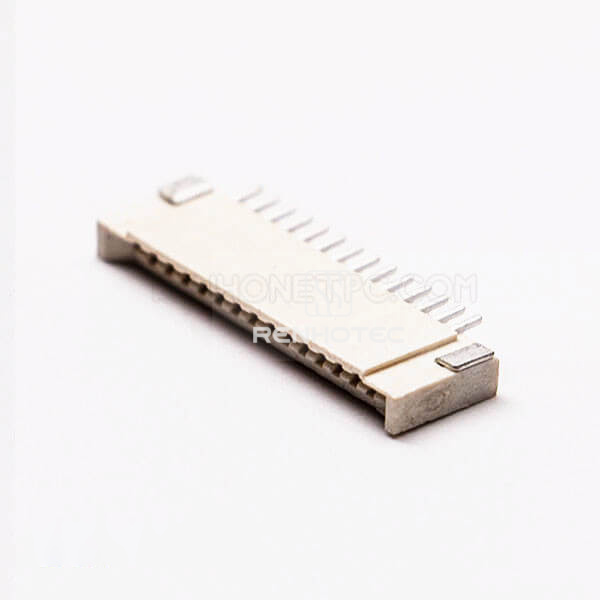

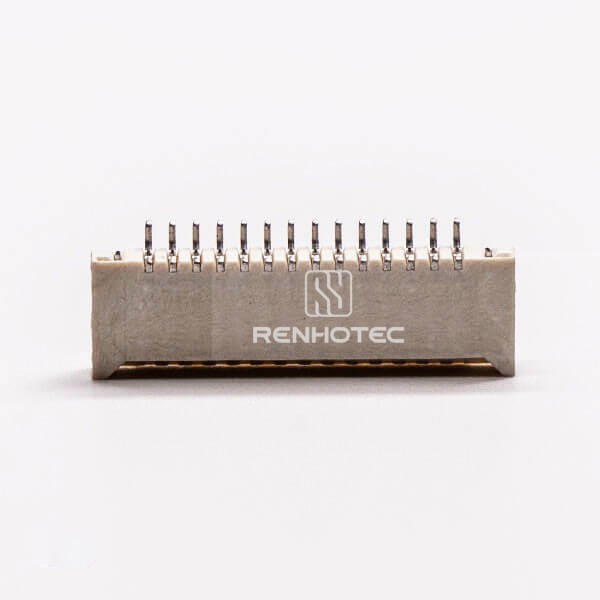

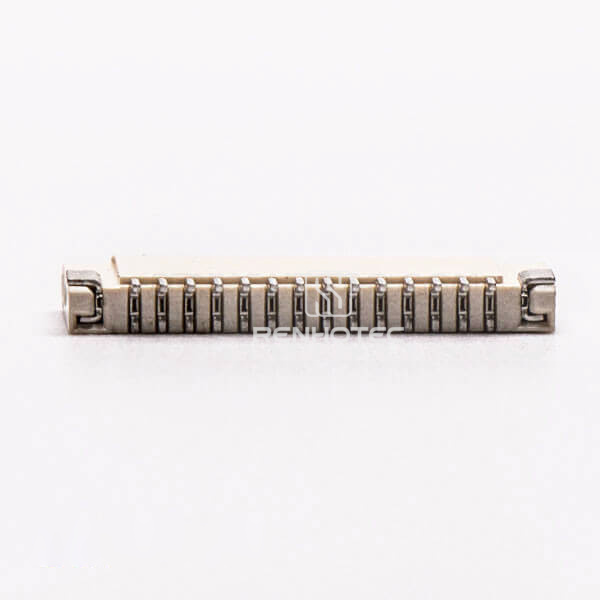

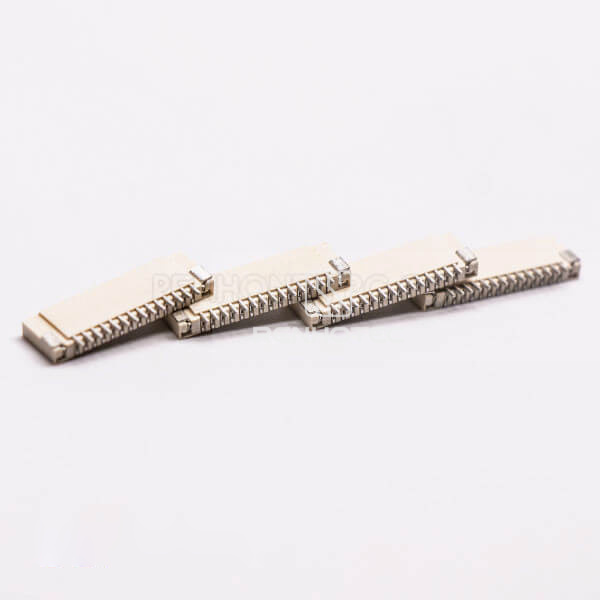

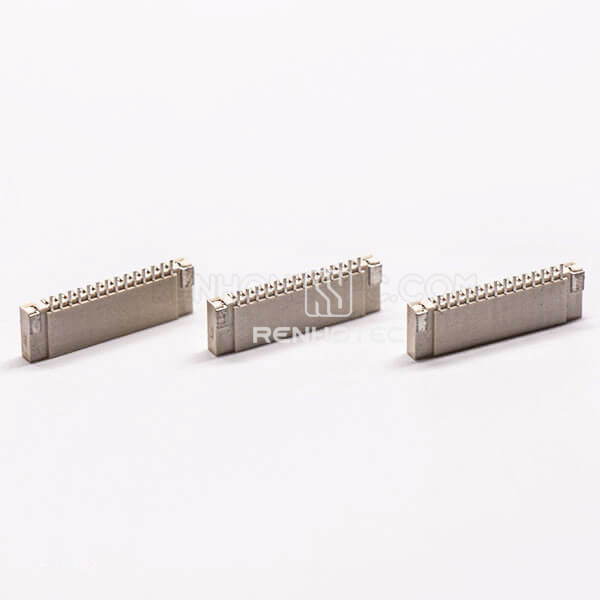

2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type

Public Part No. RHT-616-0514

2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type
Enlarge image
2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type2.0H FPC Socket Connector Dual Contact Style 1.0 PH 14 PIN Horizontal Type

Key specifications

Connector Type
FFC/FPC Connector
Pin Count
14 Pin
Mounting Type
PCB Mount
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector
Pin Count
14 Pin
Mounting Type
PCB Mount
Pitch notation
1.0 Pitch / 1.0 PH
Dimension H notation
2.0H
Construction detail
Dual Contact / Horizontal Type
Locking detail
Without lock
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
