16pin Terminal Block Diagram Plug-in Technology in a Double-Row

Part No.RHT-665-2509

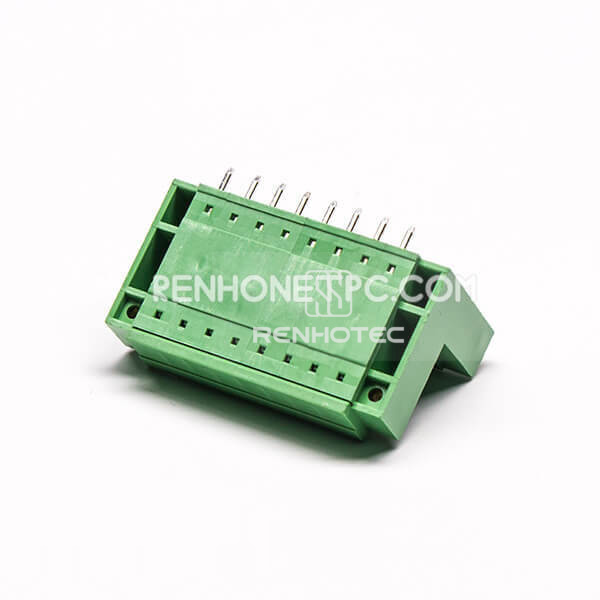

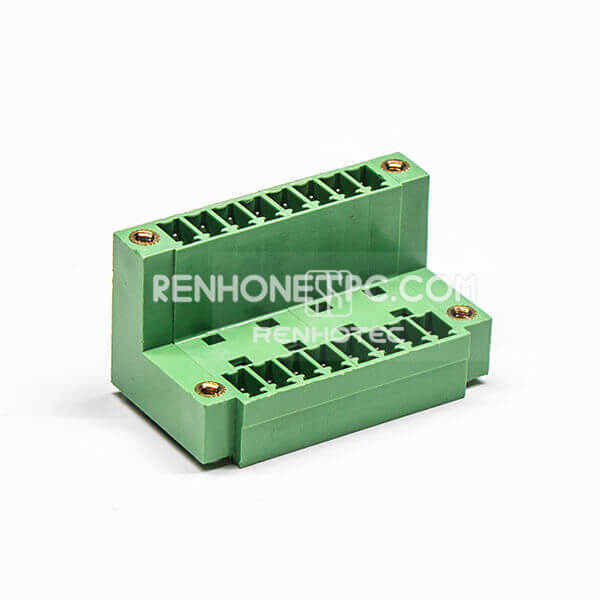

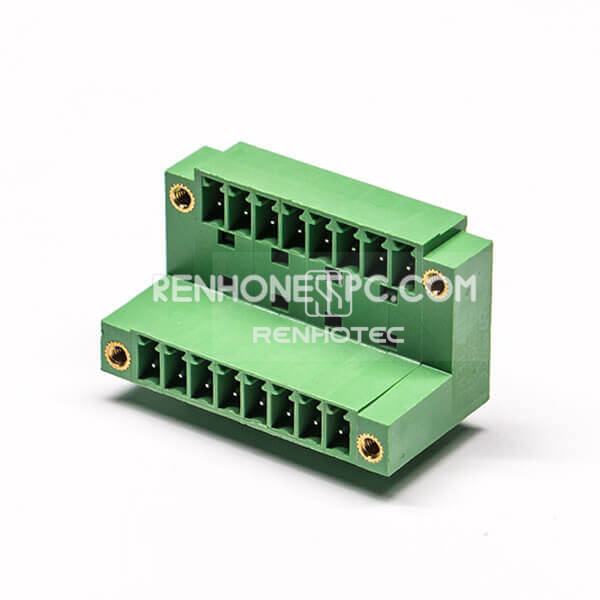

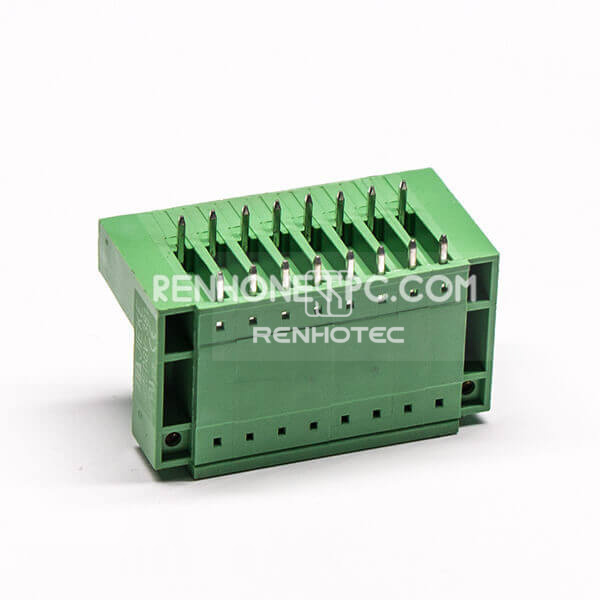

16-pin male green pluggable terminal block with right-angle orientation, through-hole mounting. Pitch options: 5.0mm/5.08mm. Double-row construction. Crimp termination. Rated current 20 A; rated voltage 300 V.
  • Pin Count16 Pin
  • GenderMale
  • OrientationRight Angle

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
20A
Voltage Rating
300V

Mechanical

Pin Count
16 Pin
Gender
Male
Orientation
Right Angle
Mounting Type
Through Hole
Termination Type
Crimp
Pitch options
5.0mm/5.08mm

Material

Color
Green

Before you specify

Selection guide

16-pin male green pluggable terminal block with right-angle orientation, through-hole mounting. Pitch options listed: 5.0mm/5.08mm. Confirm the required option before matching the footprint or mating part. Double-row construction. Crimp termination. Rated current 20 A; rated voltage 300 V.

RHT-665-2509
