D-SUB Connector

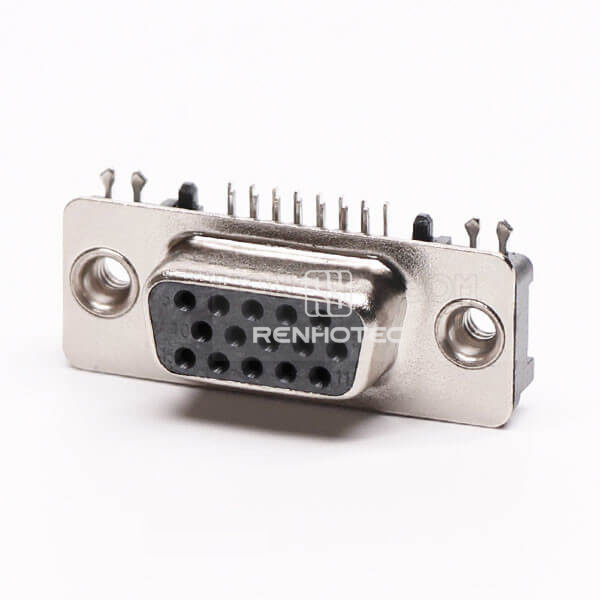

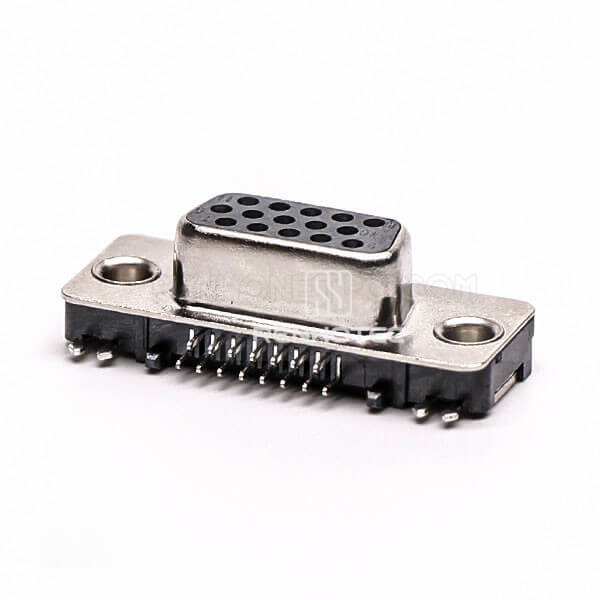

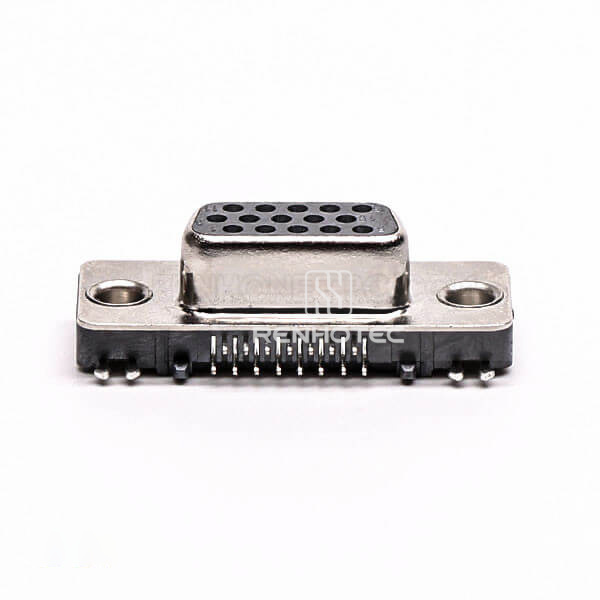

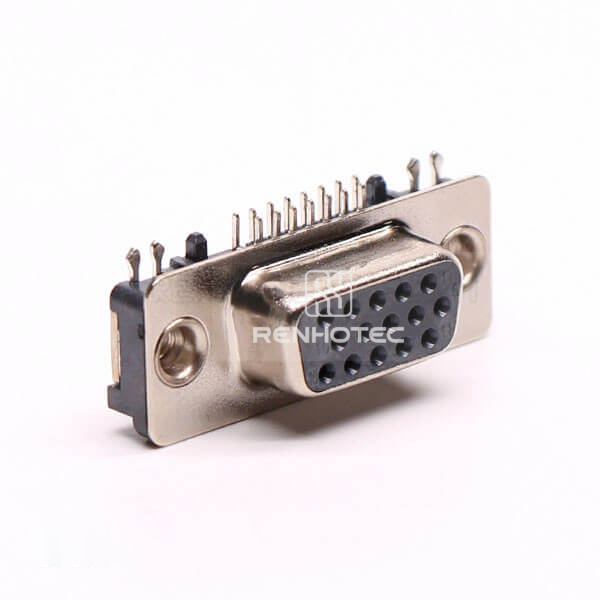

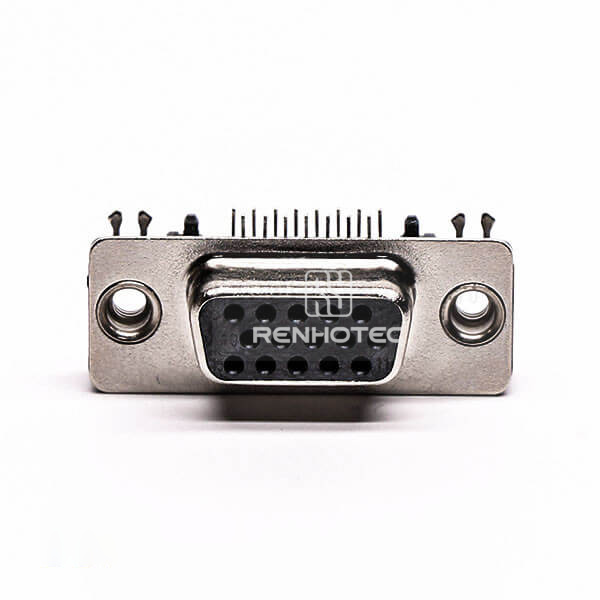

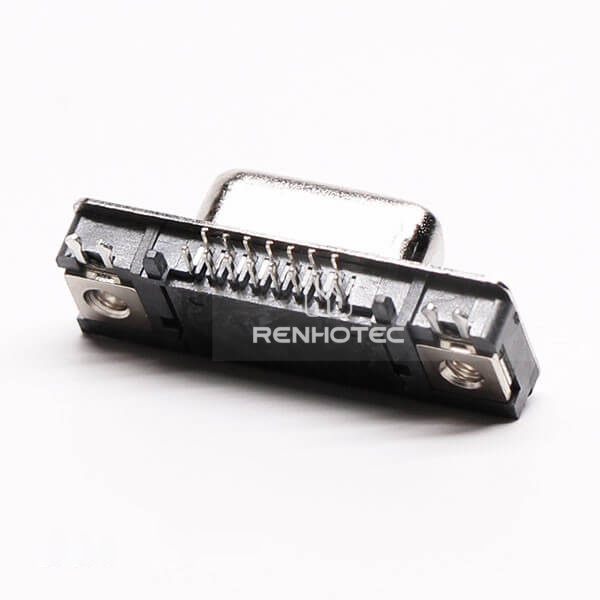

15 Pin HD D-SUB Right Angle Jack Through Hole Staking Type Black

Public Part No. RHT-681-1191

15 Pin HD D-SUB Right Angle Jack Through Hole Staking Type Black
Enlarge image
15 Pin HD D-SUB Right Angle Jack Through Hole Staking Type Black15 Pin HD D-SUB Right Angle Jack Through Hole Staking Type Black15 Pin HD D-SUB Right Angle Jack Through Hole Staking Type Black15 Pin HD D-SUB Right Angle Jack Through Hole Staking Type Black15 Pin HD D-SUB Right Angle Jack Through Hole Staking Type Black15 Pin HD D-SUB Right Angle Jack Through Hole Staking Type Black

Key specifications

Connector Type
D-SUB Connector
Pin Count
15 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
Through Hole
Termination Type
Staking Type
Request QuoteFull specifications

Overview

15-pin female high-density D-SUB connector with right-angle orientation and through-hole mounting. Termination: staking type. Colour: black.

Full Specifications

Electrical

Current Rating
3A
Voltage Rating
60V
Contact resistance
10 mOhm
Dielectric Withstanding Voltage (Signal)
1000 V

Mechanical

Connector Type
D-SUB Connector
Pin Count
15 Pin
Gender
Female
Orientation
Right Angle
Mounting Type
Through Hole
Termination Type
Staking Type
Shielding
Shielded
Extraction force
<50 N
Insertion force
<50 N
Mating cycles
50

Material

Color
Black
Shell construction
Metal shell

Environmental

Operating Temperature
-55 to 105 °C
