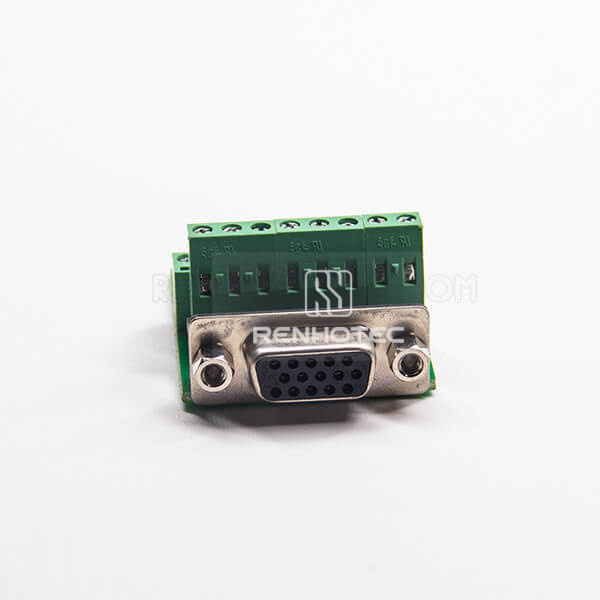

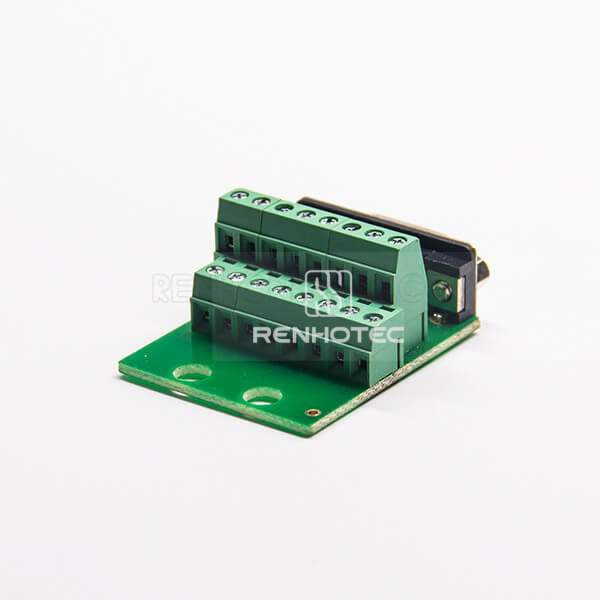

15 Pin D-SUB Adapter Female High Density D-SUB Straight to Breakout Board 16Pin

Part No.RHT-681-1281
15-pin female high-density D-SUB connector with a 16-pin breakout board in a straight configuration.
  • Connector TypeD-SUB Adapter&Gender Changers
  • GenderFemale
  • OrientationStraight

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Voltage Rating
250V AC RMS 50 Hz
Withstanding Voltage
1000V AC/ rms 50Hz for one minute
Insulation Resistance
1000MΩ at 500V DC
Contact Resistance
20 mΩ max.

Connection

Connector Type
D-SUB Adapter&Gender Changers

Mechanical

Gender
Female
Orientation
Straight
Construction detail
Breakout Board
Single Contact Insertion Force
1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force
0.13 lb. (0.06 kg.) min.
Pin Count at connector ends
15 Pin / 16 Pin

Material

Insert material
Flame-retardant thermoplastic

Environmental

Operating Temperature
-55 to 125 °C

Before you specify

Selection guide

15-pin female high-density D-SUB connector with a 16-pin breakout board in a straight configuration.

RHT-681-1281
