D-SUB Connector

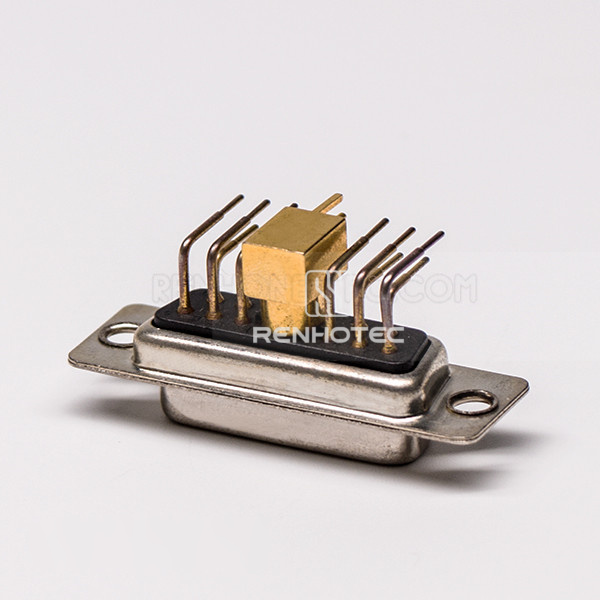

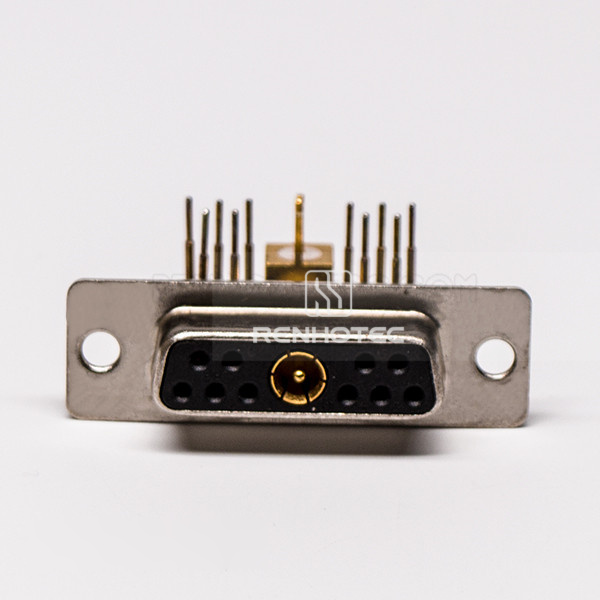

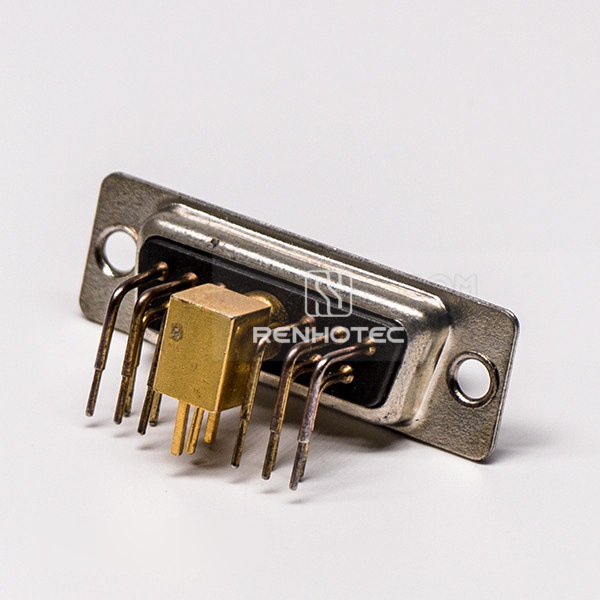

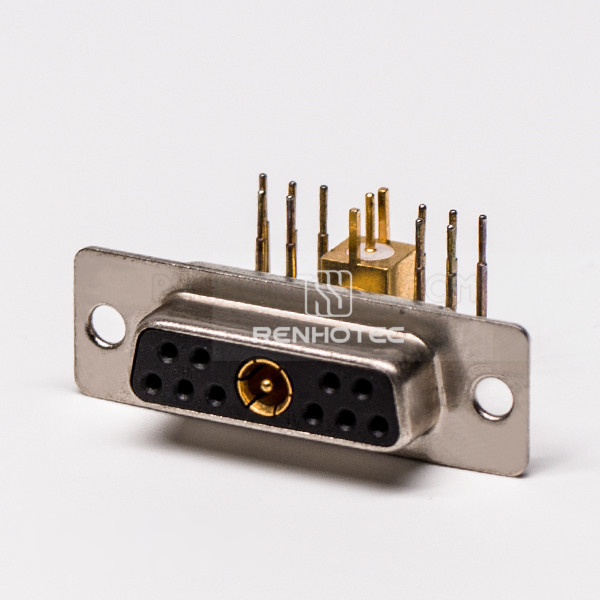

D-SUB Coaxial 11W1 Right Angle Solder Type Receptacle For PCB Mount Connector

Part No.RHT-681-1228
11W1 female D-SUB connector with right-angle orientation, through-hole PCB mounting and solder termination.
  • Connector TypePower D-SUB
  • GenderFemale
  • OrientationRight Angle

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Frequency range
0 -1 GHz
VSWR
1.4 (+0.04/GHz)
Characteristic Impedance
50 Ohms
Dielectric Withstanding Voltage
≥ 1000V R.M.S. at 50Hz
Insulation Resistance
≥ 5000 megaohms at 500 V D.C.
Contact Resistance
≤5 milliohms

Connection

Connector Type
Power D-SUB

Mechanical

Gender
Female
Orientation
Right Angle
Mounting Type
PCB Mount / Through Hole
Termination Type
Solder Type
Contact configuration
11W1
Mechanical operations
up to 500

Environmental

Operating Temperature
-55 to 155 °C

Before you specify

Selection guide

11W1 female D-SUB connector with right-angle orientation, through-hole PCB mounting and solder termination.

RHT-681-1228
