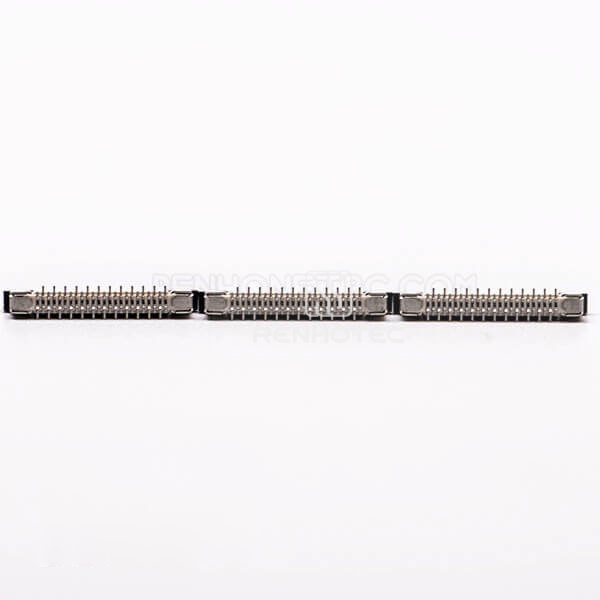

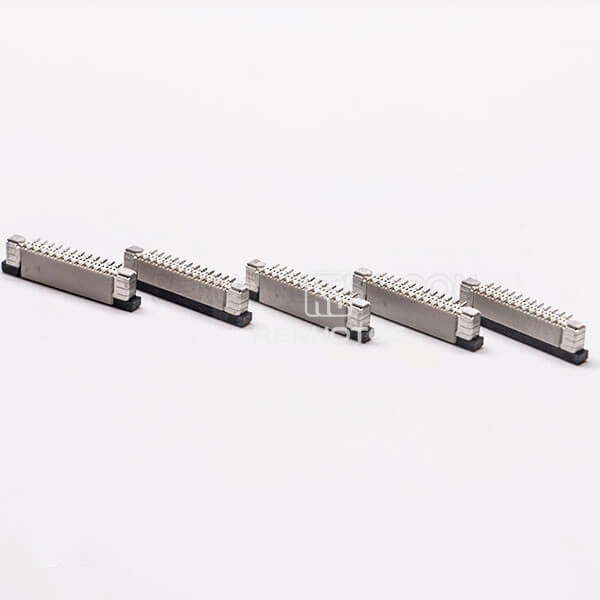

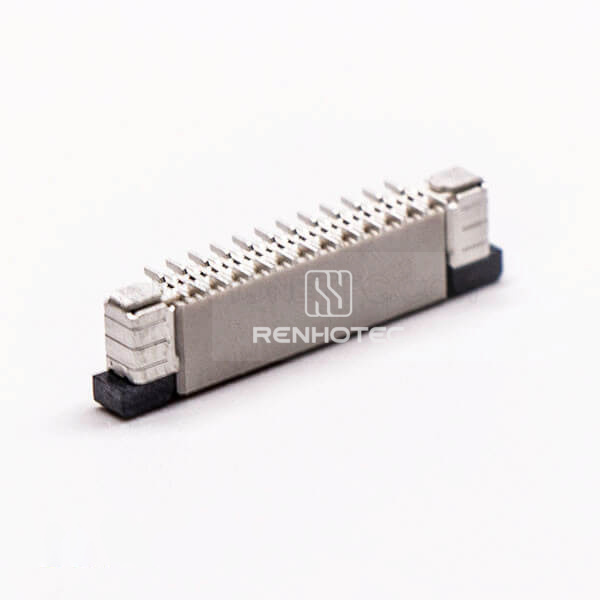

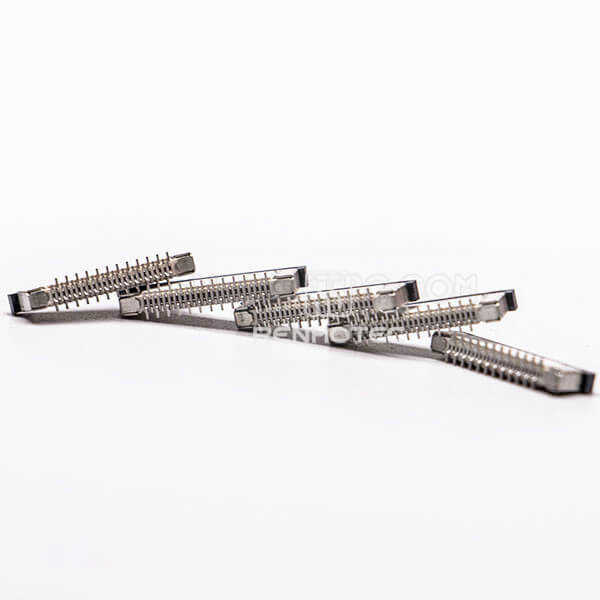

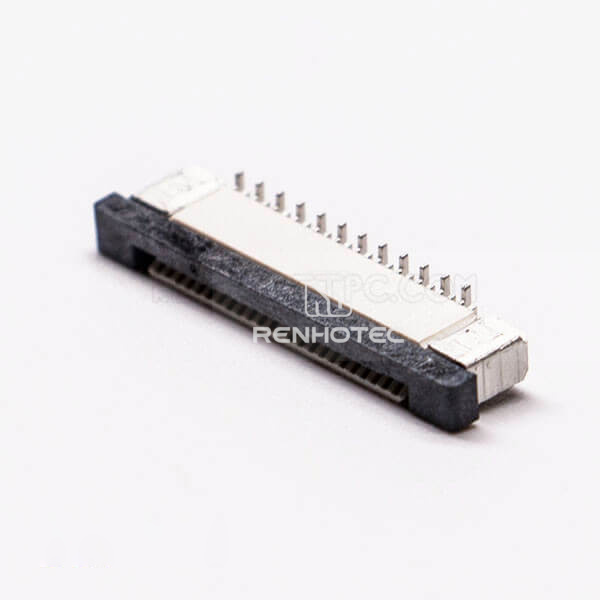

12P FPC Connector Socket 0.5 PH Single Contact Style SMT Height 2.0 with Lock

Public Part No. RHT-616-0119

12P FPC Connector Socket 0.5 PH Single Contact Style SMT Height 2.0 with Lock
Enlarge image
12P FPC Connector Socket 0.5 PH Single Contact Style SMT Height 2.0 with Lock12P FPC Connector Socket 0.5 PH Single Contact Style SMT Height 2.0 with Lock12P FPC Connector Socket 0.5 PH Single Contact Style SMT Height 2.0 with Lock12P FPC Connector Socket 0.5 PH Single Contact Style SMT Height 2.0 with Lock12P FPC Connector Socket 0.5 PH Single Contact Style SMT Height 2.0 with Lock12P FPC Connector Socket 0.5 PH Single Contact Style SMT Height 2.0 with Lock

Key specifications

Connector Type
FFC/FPC Connector
Pin Count
12 Pin
Mounting Type
PCB Mount / SMT
Termination Type
Solder Type
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector
Pin Count
12 Pin
Mounting Type
PCB Mount / SMT
Termination Type
Solder Type
Pitch notation
0.5 Pitch / 0.5 PH
Dimension H notation
H2.0
Construction detail
Single Contact Type
Locking detail
With lock
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
