FPC / FFC Connector

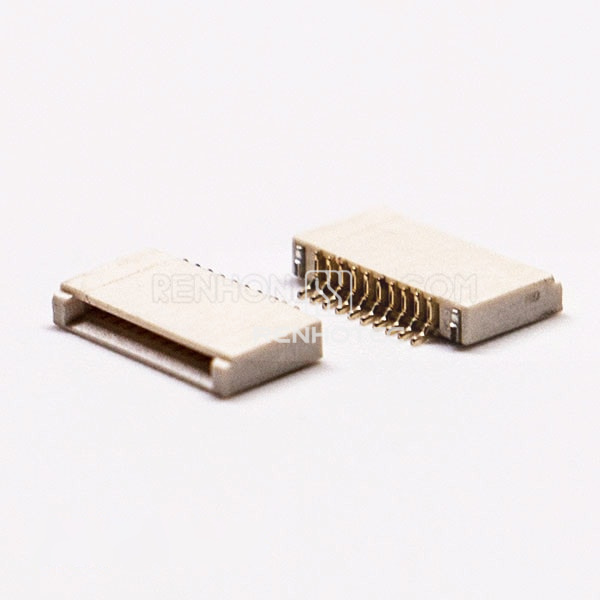

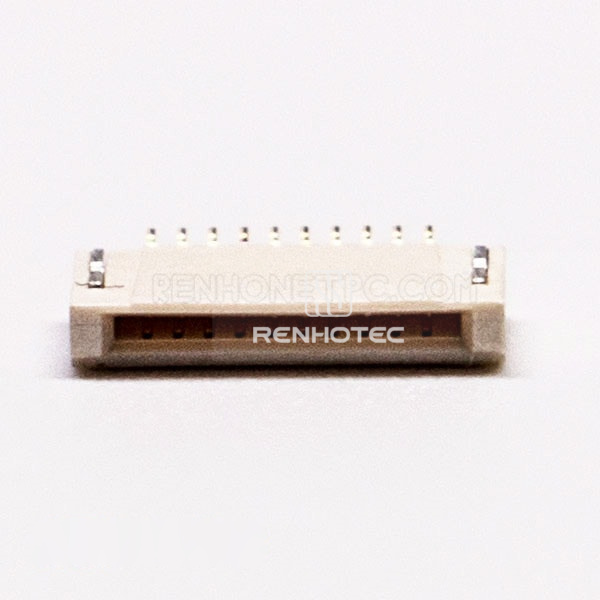

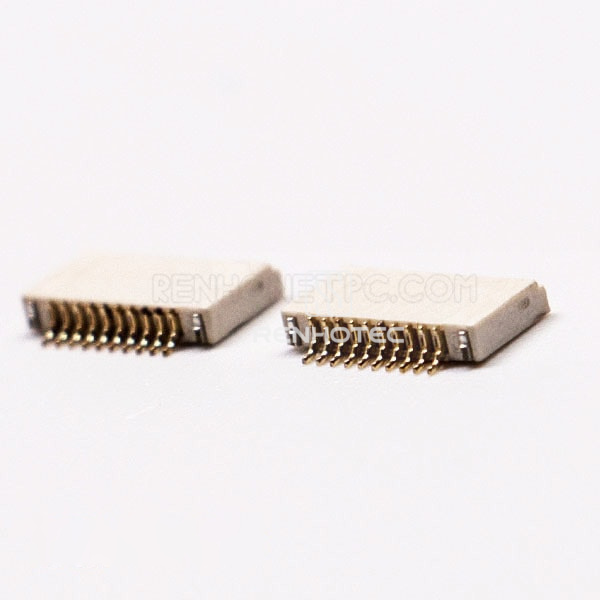

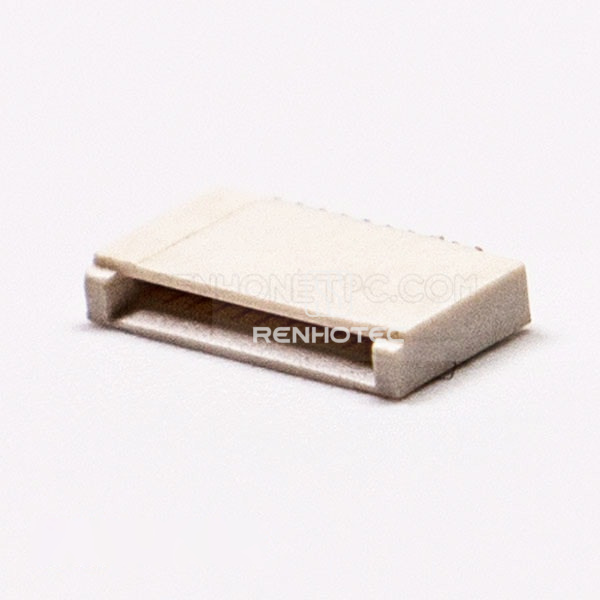

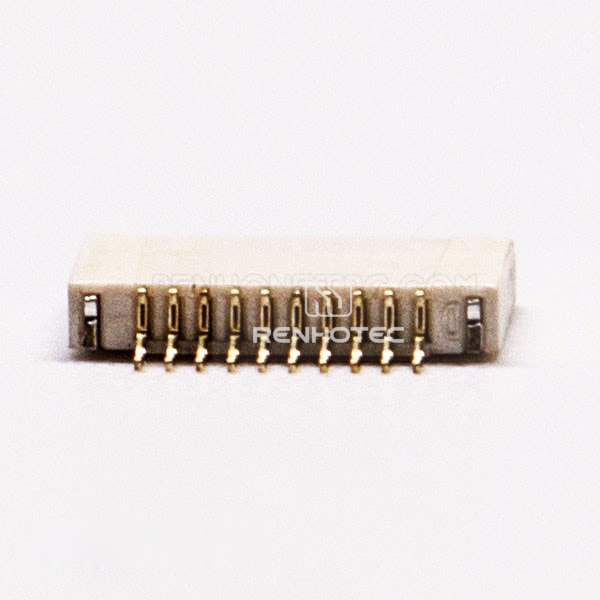

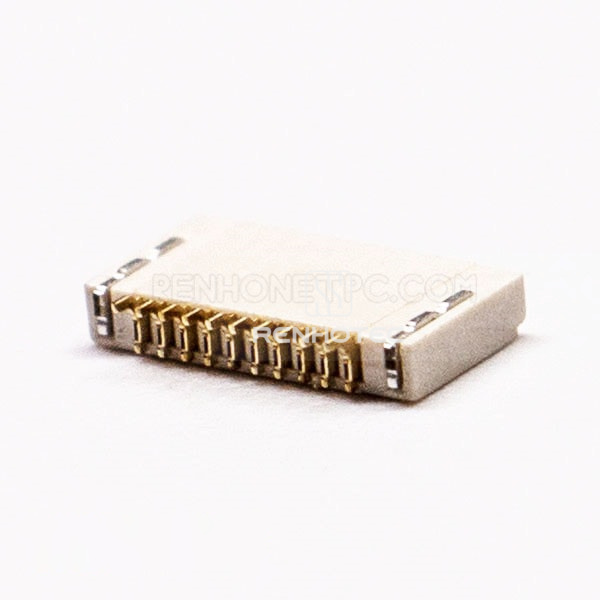

0.5PH 10 Pin FPC Front Flip and Bottom Contact Style for PCB 1.5H

Public Part No. RHT-616-0121

0.5PH 10 Pin FPC Front Flip and Bottom Contact Style for PCB 1.5H
Enlarge image
0.5PH 10 Pin FPC Front Flip and Bottom Contact Style for PCB 1.5H0.5PH 10 Pin FPC Front Flip and Bottom Contact Style for PCB 1.5H0.5PH 10 Pin FPC Front Flip and Bottom Contact Style for PCB 1.5H0.5PH 10 Pin FPC Front Flip and Bottom Contact Style for PCB 1.5H0.5PH 10 Pin FPC Front Flip and Bottom Contact Style for PCB 1.5H0.5PH 10 Pin FPC Front Flip and Bottom Contact Style for PCB 1.5H

Key specifications

Connector Type
FFC/FPC Connector
Pin Count
10 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Request QuoteFull specifications

Full Specifications

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Mechanical

Connector Type
FFC/FPC Connector
Pin Count
10 Pin
Mounting Type
PCB Mount
Termination Type
Solder Type
Pitch notation
0.5 Pitch / 0.5PH
Dimension H notation
1.5H
Construction detail
Bottom Contact / Front Flip
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C
