FPC / FFC Connector

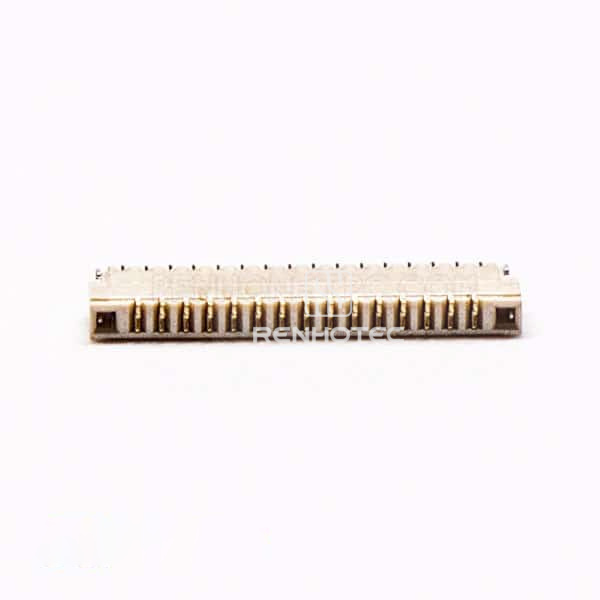

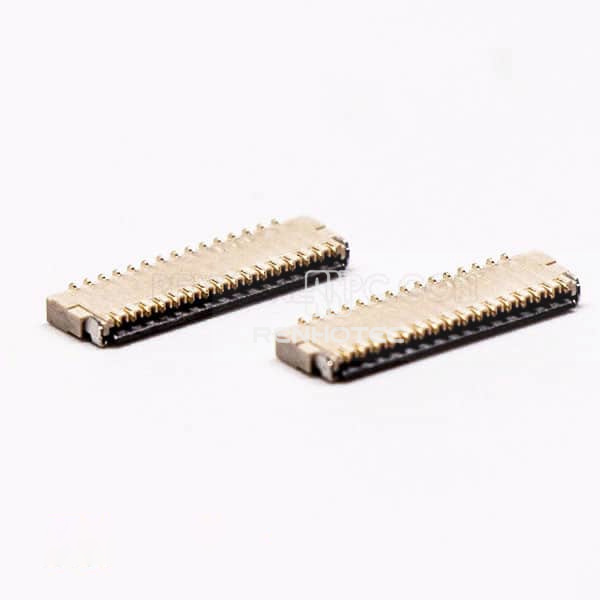

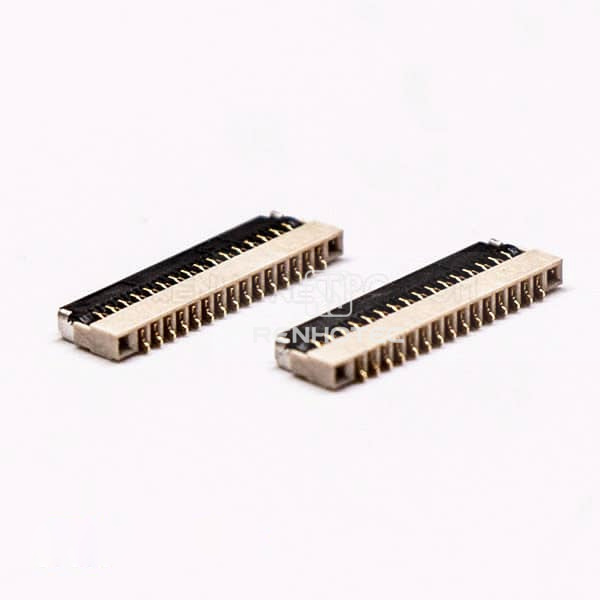

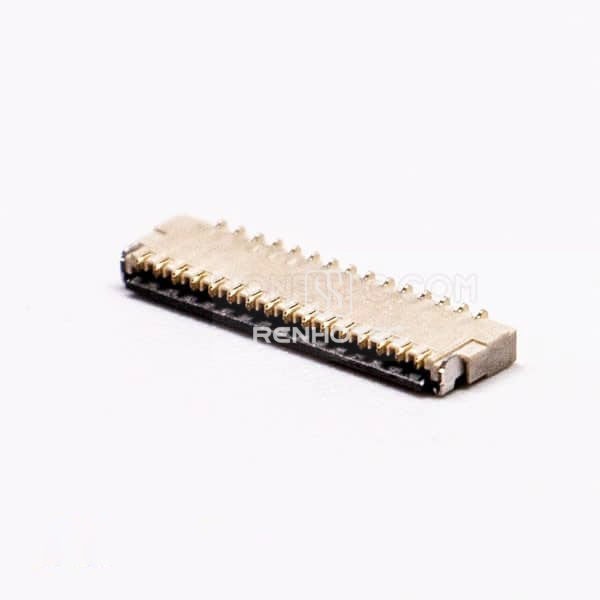

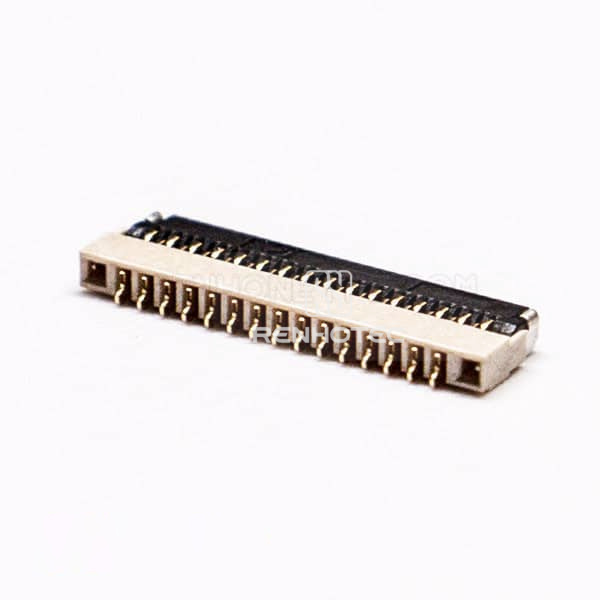

0.3PH 15 PIN FPC SMT Type Front Flip and Bottom Contact Style Socket

Part No.RHT-616-0122
15-pin FPC socket with bottom contacts and a front-flip mechanism. SMT mounting with solder termination.
  • Connector TypeFFC/FPC Connector
  • Pin Count15 Pin
  • Mounting TypePCB Mount / SMT

Include quantity, mating equipment and installation requirements.

Product data

The connection, at a glance.

Electrical

Current Rating
0.5A
Voltage Rating
50V
Contact Resistance
40 milliohms max.
Insulation Resistance
50 Megohm min.

Connection

Connector Type
FFC/FPC Connector

Mechanical

Pin Count
15 Pin
Mounting Type
PCB Mount / SMT
Termination Type
Solder Type
Pitch notation
0.3 Pitch / 0.3PH
Dimension H notation
1.0H
Construction detail
Bottom Contact / Front Flip
Durability (min.)
25 cycles

Environmental

Operating Temperature
-40 to 125 °C

Before you specify

Selection guide

15-pin FPC socket with bottom contacts and a front-flip mechanism. SMT mounting with solder termination.

RHT-616-0122
