USB Connector

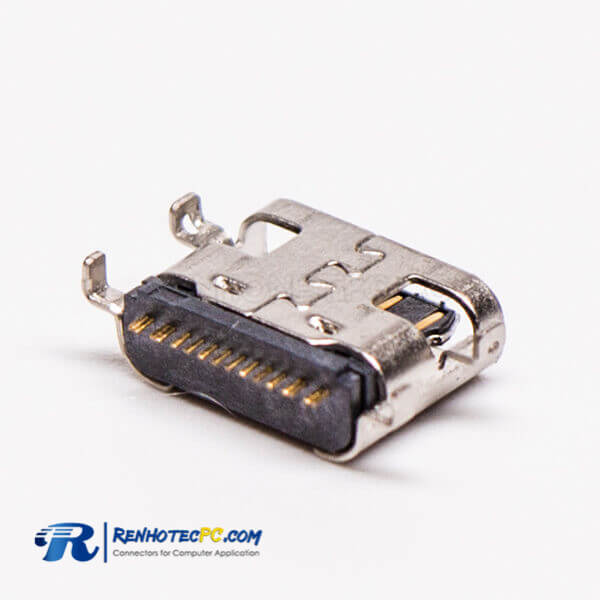

USB Type C Right Angle Female Offset Type
Part No.RHT-692-1271
Product viewRHT-692-1271
USB Connector with Female, Right Angle, Type C / USB3.0. Mounting: PCB Mount.
- Connector TypeUSB3.0 / Type C
- GenderFemale
- OrientationRight Angle
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 5A
- Voltage Rating
- 5V AC
- Contact Resistance
- 40 milliohms max
- Insulation Resistance
- 100 megohms
- Withstanding Voltage
- 100V AC
Connection
- Connector Type
- USB3.0 / Type C
Mechanical
- Gender
- Female
- Orientation
- Right Angle
- Mounting Type
- PCB Mount
- Construction detail
- Offset Type
- Connection feature
- Reversible plug and cable orientation
- Mating force
- 5N to 20N
- Unmating Force
- 8N to 20N
- Durability
- 10,000 mating cycles
Environmental
- Operating Temperature
- -30 to 85 °C
Before you specify
Selection guide
USB Connector with Female, Right Angle, Type C / USB3.0. Mounting: PCB Mount.
Offset construction. Compare the offset position with the mechanical drawing and available assembly space.
RHT-692-1271
