USB Connector
USB Type A Ports Straight Female DIP for PCB Mount
Part No.RHT-692-1324

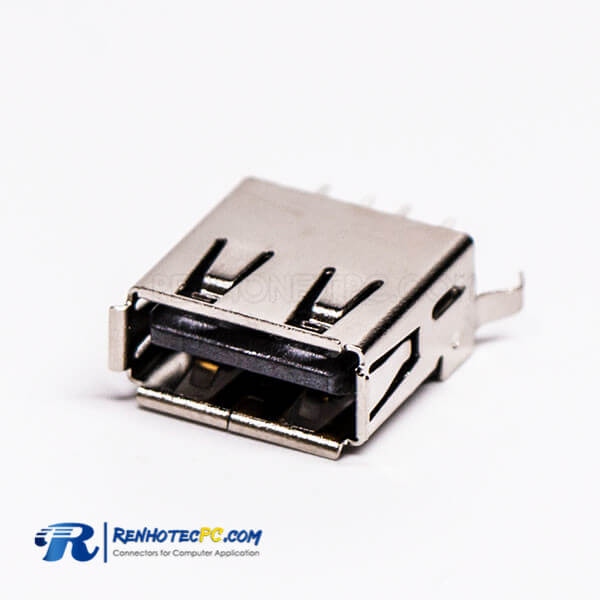

Product viewRHT-692-1324
USB Connector with Female, Straight, Type A / USB2.0. Mounting: DIP, PCB Mount.
- Connector TypeType A / USB2.0
- GenderFemale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 1A max.
- Voltage Rating
- 30V AC RMS
- Data rate
- 480 Mbps
- Contact Resistance
- 30 milliohms max
- Insulation Resistance
- 1000 megohms min
- Dielectric Withstanding Voltage
- 500 V DC/1min
Connection
- Connector Type
- Type A / USB2.0
Mechanical
- Gender
- Female
- Orientation
- Straight
- Mounting Type
- DIP / PCB Mount
- Connection feature
- Hot plugging
- Mating force
- 3.57 kgf max
- Unmating Force
- 1.0 kgf min
Material
- Color
- Black
Environmental
- Operating Temperature
- -40 to 85 °C
Before you specify
Selection guide
USB Connector with Female, Straight, Type A / USB2.0. Mounting: DIP, PCB Mount.
RHT-692-1324
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
USB Type A Ports Straight Female DIP for PCB Mount- Product family
- USB Connector
- Public Part No.
- RHT-692-1324
