D-SUB Connector
RJ45 To DB9 Female RJ45 To Female Standard D-SUB Straight 9Pin Adapter
Part No.RHT-681-1319
Product viewRHT-681-1319

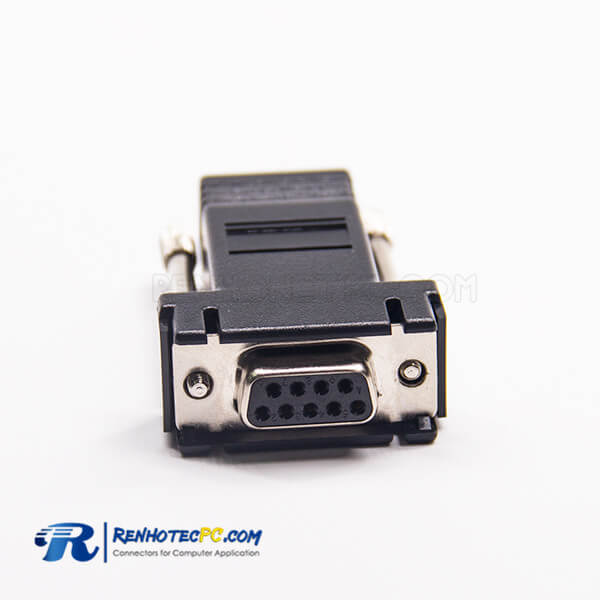

RJ45 female to 9-pin D-SUB female adapter with a straight configuration.
- Pin Count9 Pin
- GenderFemale
- OrientationStraight
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Voltage Rating
- 250V AC RMS 50 Hz
- Withstanding Voltage
- 1000V AC/ rms 50Hz for one minute
- Insulation Resistance
- 1000MΩ at 500V DC
- Contact Resistance
- 20 mΩ max.
Mechanical
- Pin Count
- 9 Pin
- Gender
- Female
- Orientation
- Straight
- Connector interfaces
- Rj45 Adapter&D-Sub
- Single Contact Insertion Force
- 1.19 lb. (0.54 kg.) max.
- Single Contact Withdrawal Force
- 0.13 lb. (0.06 kg.) min.
Material
- Insert material
- Flame-retardant thermoplastic
Environmental
- Operating Temperature
- -55 to 125 °C
Before you specify
Selection guide
RJ45 female to 9-pin D-SUB female adapter with a straight configuration.
RHT-681-1319
Ready to specify your connection?
Share the equipment, dimensions and quantity you need.
Connector requirement
Request a quote
Share your connector requirements and the specifications you need.
RJ45 To DB9 Female RJ45 To Female Standard D-SUB Straight 9Pin Adapter- Product family
- D-SUB Connector
- Public Part No.
- RHT-681-1319
